Summary of Contents for Lumagen RadianceXD

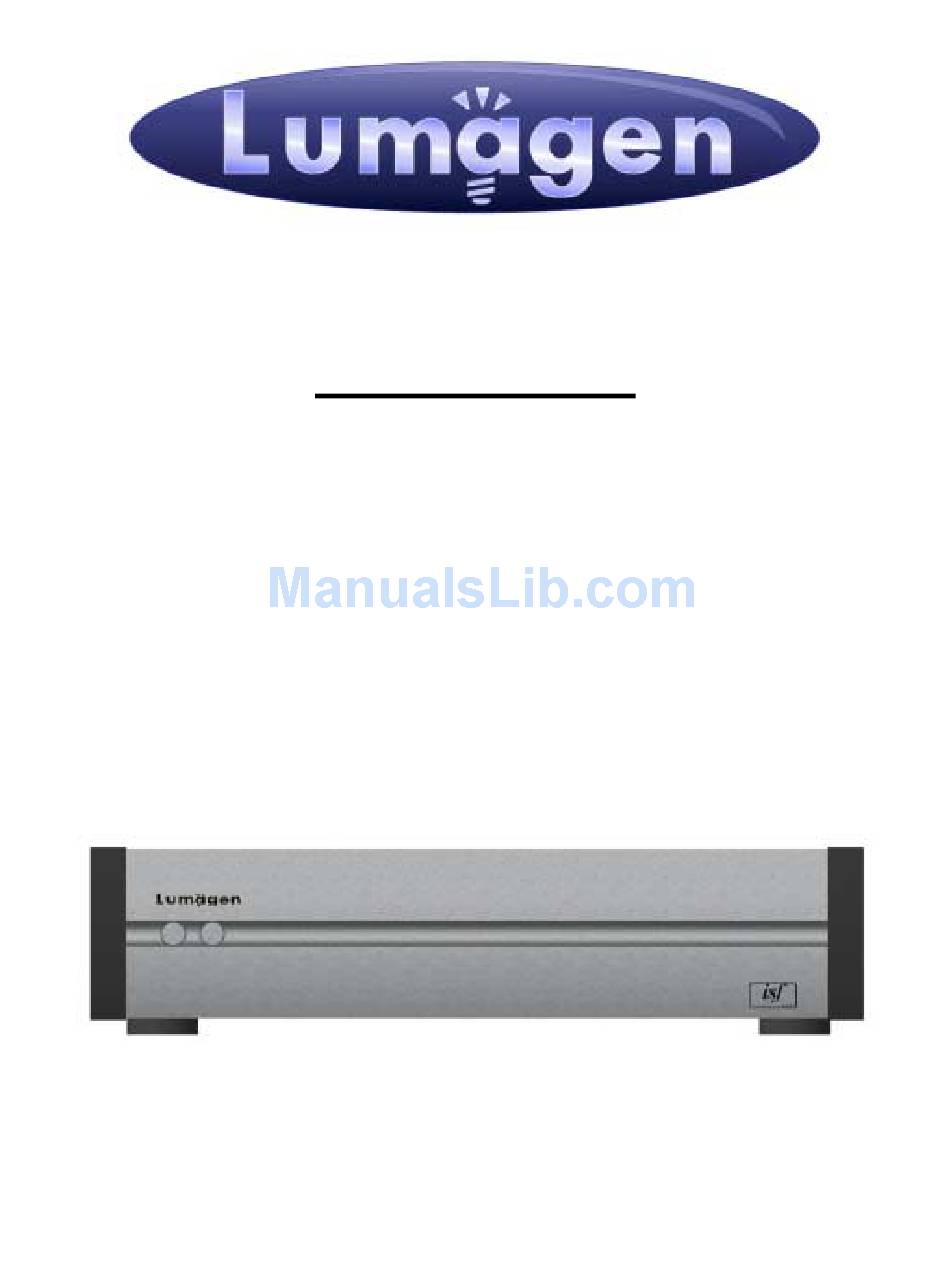

- Page 1 ® RadianceXD Video Processor Owner’s Manual Rev_060608...
-
Page 2: Legal Notices
LEGAL NOTICES: TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL LUMAGEN, ITS SUPPLIERS, OR ITS DEALERS, BE HELD LIABLE FOR INJURY TO PERSONS OR PROPERTY, ANY LOST REVENUE, LOST PROFIT, SPECIAL, INCIDENTAL, INDIRECT, CONSEQUENCIAL, OR PUNITIVE DAMAGES,... -
Page 3: Table Of Contents
STEP 3 – Powering up your RadianceXD.................. 12 STEP 4 – Set the output on your RadianceXD................13 STEP 5 – Select the input on your RadianceXD ............... 13 STEP 6 – Check for an image....................13 Section 4 – Audio .......................... 14 Introduction to the Audio Menu.................... - Page 4 Table of Contents Set Aspect Ratio......................19 Set Output Format ......................19 Basic Input Setup Commands ....................19 Select Input Type For Component Inputs ...............19 Set Video Input Level ....................19 Output Configuration Commands .................... 19 Vertical Output Resolution - Presets ................19 Exact Output Timing .....................19 Screen Aspect Ratio ......................19 Graybar Intensity ......................20 Output Type .........................20...
- Page 5 Calibrate black and white levels using display controls.............27 Color Management ......................28 Calibrate 100 IRE white to D65 using the display’s controls ..........28 Calibrate RadianceXD primary color gamut ..............28 Calibrate RadianceXD grayscale and gamma..............28 Iterate the gamut and grayscale/gamma calibrations ............29 Calibrate Radiance output color and hue ................29...
-
Page 6: Section 1 - Getting Started
The RadianceXD combines proprietary strides in video technology with enhanced connectivity and the flexibility of up to 18 video and 18 audio inputs. Lumagen’s Radiance series refines and enhances the video images presented by high definition front projectors, and top-level rear-screen and flat-panel displays; while at the same time functioning as an extensive central switching hub ideal for home and corporate theater systems. -
Page 7: Document Conventions And Menu Navigation
• Make sure that you remove all of the accessories from the packing. • Save the box and packing materials in case you need to ship your RadianceXD. Check the Components Verify that your box contains the following items: •... -
Page 8: Remote Control Battery Installation
Replace the battery compartment cover. Display Compatibility Requirement The RadianceXD is compatible with a wide variety of displays. The display must have an input that supports 480p or higher resolution. The display should have an HDMI or DVI digital input. Displays with an analog component or RGB input can be used if the user provides an external HDMI/DVI to analog video converter. -
Page 9: Section 2 - Overview
Audio can be output on the HDMI outputs and/or both COAX outputs. Additional connections are provided for LVTTL command input (38 KHz IR format), two 12-volt trigger outputs, RS232 command and update, plus the 12 VDC power input. These connections are described on the following page. RadianceXD rev_060608... -
Page 10: Hdmi Connections
Trigger Output (12V at 100mA inductive, or 250mA non-inductive, load) LVTTL IR format command input (Requires external 250 ohm resistor to ground for use with IR repeater drivers having a 1K ohm output impedance) RS232. Used for command and for software update. Power Input (12 Volts DC) RadianceXD rev_060608... -
Page 11: Remote Control
MEMA Memory A Input 10 and greater MEMB Memory B MEMC Memory C MEMD Memory D Picture-In-Picture (PIP) Turn PIP off Turn PIP on. Ready for PiP input selection SWAP Swap PIP and main view MODE Select PIP mode RadianceXD rev_060608... -
Page 12: Block Diagram
Section 2 – Overview Block Diagram The function of the RadianceXD is to act as a video switch, process the selected video source and then output video in the appropriate format and resolution. Standard definition (SD), enhanced-definition (ED), high-definition (HD) video inputs, plus a number of PC formats are supported. Video inputs are converted to progressive video (if necessary) and are then scaled to the video output resolution. -
Page 13: Configuration Memories
Setup is done with the on-screen menu. User functions (e.g. select input) use direct commands. Configuration Memories To understand RadianceXD functions, it is important to note that setup and calibration parameters are split into “input memories” and “output configurations.” Input memories deal with source specific setup and calibration. -
Page 14: Section 3 - Quick Setup Guide
The most common configurations using the RadianceXD are shown below. 1. Audio and Video routed separately. Connect the display to a RadianceXD HDMI output. Since audio is not used in the display for this case, turn off the RadianceXD HDMI output audio, for both outputs, using the Audio menu. -
Page 15: System Hook-Up Examples
System Hook-up Examples The following illustrations show the types of cables, which can be used to connect typical video sources to the RadianceXD. Multiple possibilities are shown for some sources, but only a single audio and a single video connection are required. - Page 16 In this mode VSync uses Input 17, and HSync uses Input 18. SCART (RGBcvS) Note: For RGBcvS, a component input is combined with the adjacent composite video input (e.g. component Input 10 + cvS on Input 18). RadianceXD rev_060608...
-
Page 17: System Hook-Up Steps
Plug the removable AC power cord into the connector on the external power supply. Plug the AC power cord into a power outlet. The LED on the front panel of the RadianceXD will light up with a red color. To turn on the RadianceXD, press the “ON” button on the remote. -
Page 18: Step 4 - Set The Output On Your Radiancexd
Section 3 - Setup STEP 4 – Set the output on your RadianceXD Set the output resolution: The output resolution is set to a factory default of 480p. A different output resolution can be selected using the menu or by direct command. -
Page 19: Section 4 - Audio
• Default “User EDID” mode is 2-channel PCM and Dolby-Digital 5.1 only. The user can change the “User EDID” to include any audio modes supported by the RadianceXD and the audio processor. • Audio EDID, and audio output enables, are global parameters. That is, they change (only) when the active output changes. -
Page 20: Audio Menu Structure
Y” entry below). You can use the “User EDID settings” menu to select which audio modes will be advertised by the audio EDID. By default 2-channel PCM and DD 5.1 modes are enabled. Other modes must be enabled using the menu commands. RadianceXD rev_060608... -
Page 21: Audio Source Selection Defaults
Audio source HDMI HDMI1 HDMI HDMI2 HDMI HDMI3 HDMI HDMI4 HDMI HDMI5 HDMI HDMI6 Component TOS1 Component COAX1 Component COAX2 Component COAX3 S-Video TOS2 S-Video COAX4 S-Video COAX5 S-Video COAX6 Composite STEREO1 Composite STEREO2 Composite STEREO3 Composite STEREO4 RadianceXD rev_060608... -
Page 22: Section 5 - Configuration
Basic Commands Power Turn power on by pressing the ON button. Place the RadianceXD in standby-mode by pressing STBY. Input Selection The eighteen video inputs are numbered 1 to 18. For inputs 1 through 9, press the “Input” button and then press the corresponding number button on the remote. -
Page 23: On-Screen Help
Connect the video cables. Then connect the power adaptor and turn on all required components. Digital Display For a digital display, the RadianceXD will automatically detect whether the display has a DVI or a HDMI input. Analog Display For an analog display, attach an external HDMI, or DVI, to analog output converter. -
Page 24: Set Aspect Ratio
You can test if PC mode works by selecting PC mode and then selecting the Lumagen Contrast Test Pattern. If the 4 IRE bar is visible verses the black background the display can accept PC level. -
Page 25: Graybar Intensity
In this case “Bt.601” should be selected. The command format is: MENU → → → → Input → → → → Video Setup → → → → [Resolution] → → → → Picture → → → → Color Format → → → → OK RadianceXD rev_060608... -
Page 26: Svideo Input Type
Enabling this feature does not guarantee the source will use the EDID. There are 4 settings for the Lumagen EDID interface. The Default setting enables all of the display modes currently available. -
Page 27: Saving The Configuration
Note the input memory black and contrast are intended to compensate for variations in sources devices. The Display black and contrast should be calibrated using the Lumagen contrast pattern and the displays brightness and contrast controls. The command format is: MENU →... -
Page 28: Y/C Delay
“4:3”, “16:9” or “1.85” button and then press the “NLS” button. The goal is to stretch the image to fill the screen in a way that looks as natural as possible. The Lumagen NLS command is very flexible and allows the image to be adjusted to user preferences to achieve this goal. The NLS adjustments are center width, center stretch, top cropping and bottom cropping. -
Page 29: Masking
The command format is: MENU → → → → Input → → → → Video Setup → → → → [Resolution] → → → → Control → → → → Deint → → → → Mode→ → → → OK RadianceXD rev_060608... -
Page 30: Deinterlacing Field Flip
When power is first connected, the unit can be set to turn on automatically, or it can be set to start in standby- mode. The command format is: MENU → → → → Other → → → → OnOff Setup → → → → Auto On → → → → (Standby, Turn On) → → → → OK RadianceXD rev_060608... -
Page 31: Test Patterns
“Dark” so that it is off when the Radiance is operating. The command format is: MENU → → → → Other → → → → LED Setup → → → → (Green, Dark) → → → → OK RadianceXD rev_060608... -
Page 32: Section 6 - Calibration
However, you can improve your picture without hiring a professional if you prefer. You will need to learn how to use the Lumagen test patterns, and have either a test-pattern generator or a calibration disc (such as AVIA or Digital Video Essentials). Then you need to spend time learning how various calibration controls interact and how they affect image quality. -
Page 33: Color Management
100 IRE window test pattern. This pattern has a white window on a black background. Navigate to the Lumagen test pattern menu and then use the right-arrow key to step to the 100 IRE Window test pattern. The command is: MENU →... -
Page 34: Iterate The Gamut And Grayscale/Gamma Calibrations
However, any source can be calibrated first if you prefer. • Set the Lumagen input aspect ratio as 4:3 (1.33) for a 4:3 screen, 16:9 (1.76) for a 16:9 screen, or 2.35 for a projector with a 2.35 anamorphic lens. The input aspect ratio should be set before adjusting the overscan. - Page 35 MENU→ → → → Input→ → → → Video Setup→ → → → [Resolution]→ → → → Picture→ → → → Color/Hue → → → → OK • Display a “Y/C Delay” test pattern. • Set Y/C Delay. Use the Lumagen Control to minimize the error in the blue and red timing verses Luma. The C and C channels are calibrated independently.
-
Page 36: Section 7 - Command Interface
Section 7 – Command Interface Section 7 – Command Interface Direct Commands Direct Commands are entered by using the Lumagen remote control. All of these commands can also be entered by using the RS232 interface. Output Vertical Resolution 480p: MENU 0 2 1... -
Page 37: Ir Command Interface
Enhanced for 16:9 televisions format. Use previous zoom setting. 16:9NZ 0010 00 1111 10 Enhanced for 16:9 televisions format. No zoom. 1.85 0010 00 0001 00 Input is 1.85 format. Use previous zoom setting. 1.85NZ 0010 10 1111 11 Input is 1.85 format. No zoom. RadianceXD rev_060608... -
Page 38: Serial Rs232 Command Interface
To connect to a PC, use a standard RS232 null modem cable. Port Settings • 9600 Baud • 8 data bits • No parity bit • One stop bit Connections Pin 2 – Receive Pin 3 – Transmit Pin 5 and connector shell - Ground RadianceXD rev_060608... -
Page 39: Ascii Command List
1.85 Input is 1.85 format. Use previous zoom setting. 1.85NZ Input is 1.85 format. No zoom. 2.35 Input is 2.35 format. Use previous zoom setting. 2.35NZ Input is 2.35 format. No zoom. MEMA Select MEMA MEMB Select MEMB RadianceXD rev_060608... - Page 40 Set output aspect ratio to MMM. Where the valid range is 110-250 which ZY1MMM corresponds to 1.10 to 2.50 Set output shrink parameters. Where MMM=top, NNN=left, OOO=bottom, ZY1MMMNNNOOOPPP PPP=right edge. Range is 0-255 for each. ZY3<1,2><H,L> Sets trigger 1 or 2 either H=on or L=off. RadianceXD rev_060608...
-
Page 41: Section 8 - Appendix
Analog audio and video inputs, absolute maximum rating is ±1 volts, referenced to case Processing • 10-bit processing • Proprietary Lumagen “No-ring” scaling • Each input has 4 user configuration memories, with 8 resolution sub-memories for each • 2:2, 3:2 and 3:3 pull-down for SD/HD film sources •...
