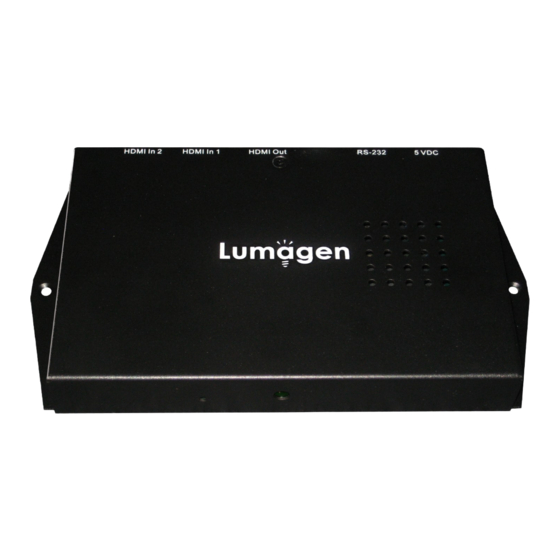

Lumagen Radiance Series Installation Notes

Radiance Tech Tip 19
Radiance Installation Notes
Introduction
This is a practical guide to installing the Lumagen Radiance video processor. This guide has
installation tips for of all models of the Radiance video processor.

How to connect the Radiance outputs

For correct operation, it is important to connect your receiver and display to the correct
outputs on the Radiance. This will allow the Radiance to pass-back the correct audio and
video EDID to the video sources.
1. Connect the Radiance Output 1 to your receiver and Output 2 to your display. By default
the Radiance passes back the audio EDID from Output 1 and the video EDID from
Output 2.
2. If you are only using one output on the Radiance, connect Output 2 to the display.
3. If you have a receiver connected to the HDMI Output 1 of the Radiance, you can turn off
video on Output 1. The Radiance will output audio with 1080i blank 2D video on Output 1.
To turn off video on HDMI Output 1, press "Menu 0985" (added in SW Rev 090412).
Then save the new setting by pressing "Menu, Save, Ok, Ok, Ok". See Figure 1.

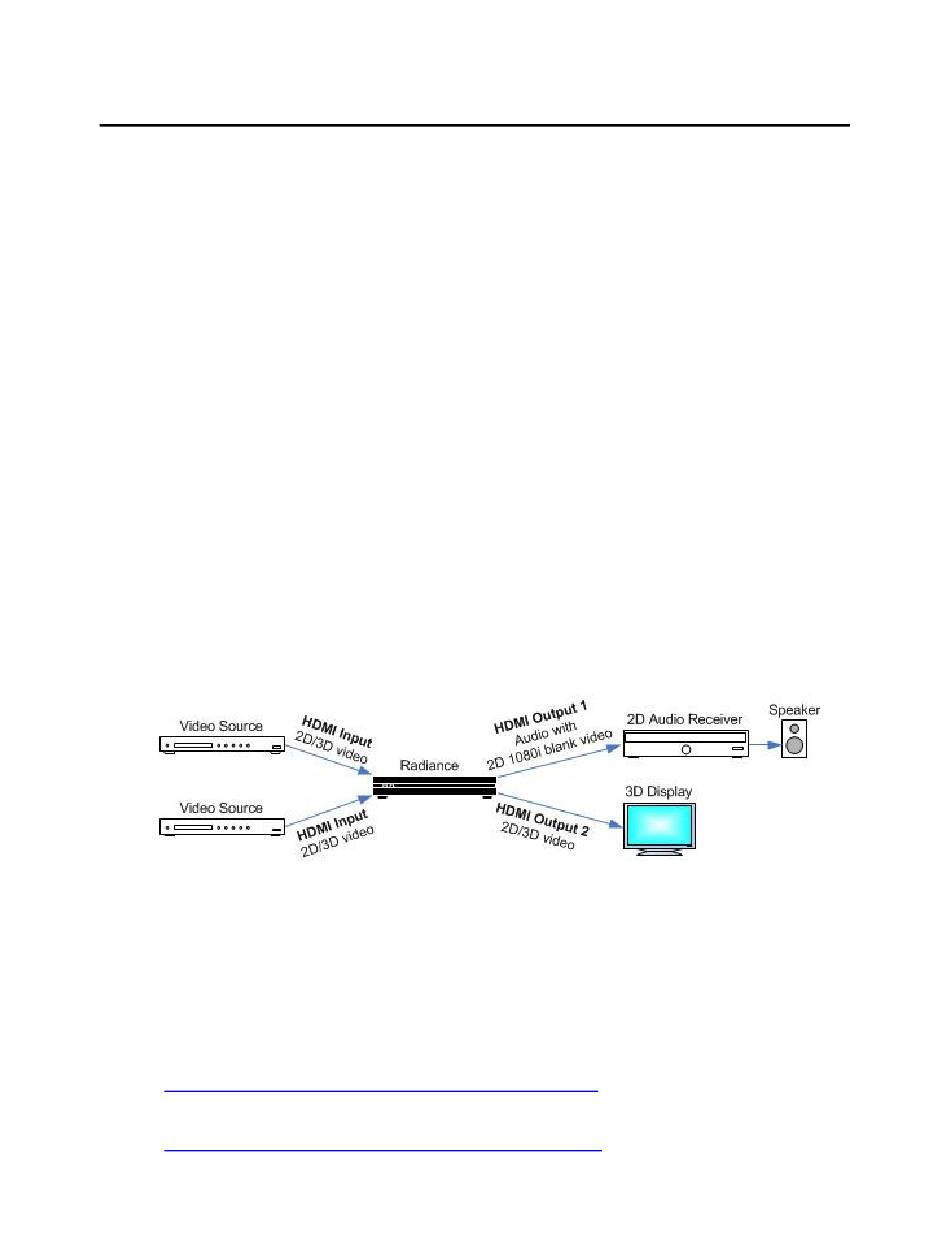

Figure 1: Shows a receiver connected to HDMI Output 1 and video turned off.

How to reset the Radiance to factory default settings

Please follow these instructions when you install a used Radiance or if you want to reset your
unit to the factory default settings.
1. Go to the Lumagen website and download the latest software for your unit.
http://www.lumagen.com/testindex.php?module=updates
2. See "Tech Tip 6 – Updating the Radiance" for instructions on installing new software.
http://www.lumagen.com/testindex.php?module=manuals
3. Do a factory reset by pressing "Menu 0999".
© 2013 Lumagen, Inc.
Note: The RadianceMini only has one HDMI output.
1 Radiance Tech Tip 19, Rev 1.0
