TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL LUMAGEN, ITS
SUPPLIERS, OR ITS DEALERS, BE HELD LIABLE FOR INJURY TO PERSONS OR
PROPERTY, ANY LOST REVENUE, LOST PROFIT, SPECIAL, INCIDENTAL, INDIRECT,
CONSEQUENCIAL, OR PUNITIVE DAMAGES, IMPAIRMENT OF OR DAMAGE TO OTHER
GOODS, HOWEVER CAUSED REGARDLESS OF THE THEORY OF LIABILITY, RESULTING
FROM THE USE OF, OR INABILITY TO USE, THIS PRODUCT, EVEN IF LUMAGEN, ITS
SUPPLIERS, OR ITS DEALERS, HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
LUMAGEN
SHALL
DOCUMENTATION OR SOFTWARE. LUMAGEN RESERVES THE RIGHT TO MAKE
CHANGES TO ITS PRODUCTS AND DOCUMENTATION WITHOUT NOTICE.
Unless you are experienced in the installation and set-up of high-performance video
electronics, we suggest you hire a professional home-theater specialist to do
installation and configuration of this product. We recommend that you choose a
professional who has been certified by the Imaging Science Foundation™ (ISF).
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC rules, Canadian ICES-003, and CISPR 22. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
-
Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that which the receiver is
-
connected.
Consult the dealer or an experienced radio/TV technician for help.
-
Unauthorized modifications to this equipment may void Lumagen's limited warranty and the
user's authority to operate this equipment.
Lumagen is a registered trademark of Lumagen Inc. Vision HDP, Vision HDQ, RadianceXD and
other Lumagen product names, are trademarks of Lumagen, Inc. Other trademarks are the
property of their respective owners.
•
Do not defeat the safety features of the power supply or power cord, such as,
but not limited to, removing the ground pin connection.
•
Do not open, insert objects into, or spill liquid into, this equipment.
•
Do not block the cooling vents.
•
Do not program an output resolution that exceeds the maximum specified
refresh rate of the attached television, or projector.
•
Improperly set gray-bar intensity may accelerate screen burn-in. Consult a
home-theater specialist for help setting gray-bar intensity.
LEGAL NOTICES:
NOT
BE
LIABLE
WARNINGS:
FOR
OMISSIONS
OR
ERRORS
IN
ITS
Advertisement
Table of Contents
Related Manuals for Lumagen RadianceXD
Summary of Contents for Lumagen RadianceXD
- Page 1 Unauthorized modifications to this equipment may void Lumagen’s limited warranty and the user’s authority to operate this equipment. Lumagen is a registered trademark of Lumagen Inc. Vision HDP, Vision HDQ, RadianceXD and other Lumagen product names, are trademarks of Lumagen, Inc. Other trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
PC..........................11 SCART (RGBcvS)......................11 STEP 1 – Connecting the RadianceXD outputs.................12 STEP 2 – Connecting your sources to the RadianceXD ............12 STEP 3 – Powering up your RadianceXD ..................12 STEP 4 – Set the output on your RadianceXD ................12 STEP 5 – Select the input on your RadianceXD................12 STEP 6 –... - Page 4 Table of Contents Input Aspect Ratio Selection ..................16 Image Zoom .........................16 Info Screen........................16 Basic Output Commands ......................17 Basic Input Setup Commands....................18 Output Configuration Commands .....................18 Vertical Output Resolution - Presets ................18 Vertical Output Resolution - Programmable..............18 Vertical Output Refresh Rate..................18 Horizontal Resolution for DVI Output................18 Exact Output Timing .....................18 Output Size........................18...
- Page 5 Calibrate black and white levels using display controls.............26 Color Management ......................27 Calibrate 100 IRE white to D65 using the display’s controls ..........27 Calibrate RadianceXD primary color gamut ..............27 Calibrate RadianceXD grayscale and gamma..............27 Iterate the gamut and grayscale/gamma calibrations ............28 Calibrate Radiance output color and hue ................28...
-
Page 6: Section 1 - Getting Started

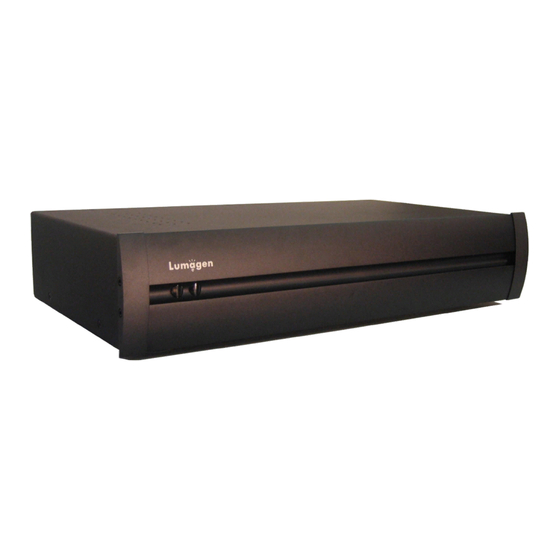

The RadianceXD combines proprietary strides in video technology, with enhanced connectivity and the flexibility of up to 18 video and 18 audio inputs. Lumagen’s Radiance series refines and enhances the video images presented by high definition front projectors, and top-level rear-screen and flat-panel displays; while at the same time functioning as an extensive central switching hub ideal for home and corporate theater systems. -
Page 7: Document Conventions And Menu Navigation
• Make sure that you remove all of the accessories from the packing. • Save the box and packing materials in case you need to ship your RadianceXD. Check the Components Verify that your box contains the following items: •... -
Page 8: Remote Control Battery Installation
Replace the battery compartment cover. Display Compatibility Requirement The RadianceXD is compatible with a wide variety of displays. The display must have an input that supports 480p or higher resolution. The display should have an HDMI or DVI digital input. Displays with an analog component or RGB input can be used if the user provides an external HDMI/DVI to analog video converter. -
Page 9: Section 2 - Overview
Audio can be output on the HDMI outputs and/or both COAX outputs. Additional connections are provided for LVTTL command input (38 KHz IR format), two 12-volt trigger outputs, RS232 command and update, plus the 12 VDC power input. These connections are described on the following page. RadianceXD Rev 1.0... -
Page 10: Hdmi Connections
LVTTL IR format command input (Requires external 250 ohm resistor to ground for use with IR repeater drivers having a 1K ohm output impedance) RS232. Used for command and for software update. Power Input (12 Volts DC) RadianceXD Rev 1.0... -
Page 11: Remote Control
Input 1 to 9 MEMB Memory B Input 10 and greater MEMC Memory C MEMD Memory D Picture-In-Picture (PIP) Turn PIP off Turn PIP on. Ready for PiP input selection SWAP Swap PIP and main view MODE Select PIP mode RadianceXD Rev 1.0... -
Page 12: Block Diagram
Section 2 – Overview Block Diagram The function of the RadianceXD is to act as a video switch, process the selected video source and then output video in the appropriate format and resolution. Standard definition (SD), enhanced-definition (ED), high-definition (HD) video inputs, plus a number of PC formats are supported. Video inputs are converted to progressive video (if necessary) and are then scaled to the video output resolution. -
Page 13: Configuration Memories
Setup is done with the on-screen menu. User functions (e.g. select input) use direct commands. Configuration Memories To understand RadianceXD functions, it is important to note that setup and calibration parameters are split into “input memories” and “output configurations.” Input memories deal with source specific setup and calibration. -
Page 14: Section 3 - Set Up
Video separately Connect the display to a RadianceXD HDMI output. Since audio is not used in the display for this case, turn off the RadianceXD HDMI output audio, for both outputs, using the Audio menu. 2. Radiance in of receiver. -
Page 15: Vcr/Laser Disk/Dvr
Section 3 - Setup VCR/Laser Disk/DVR DVD Player/DVD Recorder HD-STB / dVHS / HD-DVD / Blu-ray RadianceXD Rev 1.0... -
Page 16: Game Console
In this mode VSync uses Input 17, and HSync uses Input 18. SCART (RGBcvS) Note: For RGBcvS, a component input is combined with the adjacent composite video input (e.g. component Input 10 + cvS on Input 18). RadianceXD Rev 1.0... -
Page 17: Step 1 - Connecting The Radiancexd Outputs
Plug the removable AC power cord into the connector on the external power supply. Plug the AC power cord into a power outlet. The LED on the front panel of the RadianceXD will light up with a red color. To turn on the RadianceXD, press the “ON” button on the remote. -
Page 18: Section 4 - Audio
• Default user-defined mode is 2-channel PCM and Dolby-Digital 5.1 only. In any case, the user can change the user-default to include any or all audio modes supported by the RadianceXD. • Audio EDID, and audio output enables, are global parameters. That is, they can change when the active output changes, but there is no input-specific memory as with video. -
Page 19: The "If" Conditional
When the second output is used, the video configuration is set to enable output2, and disable output 1. This type of setup might have the two displays in different rooms with different equipment. This can be set as: RadianceXD Rev 1.0... -
Page 20: Audio Example 3
To change the audio source for a particular input, first select that video input, and then select the desired audio source. More than one video input can be linked to the same audio source. command is: MENU → Input → Audio Setup → Source → (select audio input) → OK RadianceXD Rev 1.0... -
Page 21: Section 5 - Configuration
Basic Commands Power Turn power on by pressing the ON button. Place the RadianceXD in standby-mode by pressing STBY. Input Selection The eighteen video inputs are numbered 1 to 18. For inputs 1 through 9, press the “Input” button and then press the corresponding number button on the remote. -
Page 22: Basic Output Commands
• Connect the video cables. Then connect the power adaptor and turn on all required components. • For a digital display, the RadianceXD will automatically detect whether the display has a DVI or a HDMI input. • For an analog display, attach and external HDMI, or DVI, to analog output converter”. -
Page 23: Basic Input Setup Commands
MENU → Output → Configs → [Config] → Timing → OK Horizontal Resolution for DVI Output For DVI-D output, use this command to set the active horizontal resolution if the HRES selected by the Lumagen does not match the display. The command format is: MENU →... -
Page 24: Graybar Intensity
MENU → Output → → Configs → [Config] →Shrink → OK NOTE: When calibrating overscan you should check the picture overscan using the Lumagen overscan test pattern (under MENU → Other → Test Pattern). Copy Output Settings This command copies the current output configuration to the selected configuration or configurations. The command format is: MENU →... -
Page 25: Selecting An Output Configuration For An Input Memory
EDID. There are 5 basic settings for the Lumagen EDID interface. The OFF setting means the source plugged into the Lumagen HDMI input will see no info when it tries to read the EDID. With the PASS setting the Lumagen will read the EDID from the display and pass that back to the source. -
Page 26: Miscellaneous Commands
MENU → Other → Test Pattern→ Pattern → (Reference, Adjustable, Warm up) → OK Menu Timeout The menu timeout can be changed. The command is: MENU 0 9 0 5 Toggle menu timeout. Short (default) or long RadianceXD Rev 1.0... -
Page 27: Sidebar Pan
Or MENU → Save→ Factory → OK Restore Configuration Saved during calibration During calibration, the video technician can save the resulting Lumagen configuration to a special hidden configuration memory. This command restores that configuration in the event that the user inadvertently changes the configuration. -
Page 28: Black And White Levels
The goal is to stretch the image to fill the screen in a way that looks as natural as possible. The Lumagen NLS command is very flexible and allows the image to be adjusted to user preferences to achieve this goal. The NLS RadianceXD Rev 1.0... -
Page 29: Y/C Delay
16:9 image (e.g. HDTV with up-scaled SD source). This latter case is seen as a “pillar-boxed” image with black bars on the left and right. The “PILLARBOXED” parameter must be enabled for this case. The Lumagen will then crop the pillbox bars and stretch the active 4:3 image. -
Page 30: Flip Input Field
2 is on for 2.35 aspect. The command format is: MENU → Other → Trigger Out→ (Trigger1, Trigger2) → OK Zoom Step This command controls the size of the Zoom step. The command format is: MENU → Other → Zoom step → OK RadianceXD Rev 1.0... -
Page 31: Section 6 - Calibration
However, you can improve your picture without hiring a professional if you prefer. You will need to learn how to use the Lumagen test patterns, and have a calibration disc (such as AVIA or Digital Video Essentials). Then you need to spend time learning how various calibration controls interact and how they affect image quality. -
Page 32: Color Management
100 IRE window test pattern. This pattern has a white window on a black background. Navigate to the Lumagen test pattern menu and then use the right-arrow key to step to the 100 IRE Window test pattern. The command is: MENU →... -
Page 33: Iterate The Gamut And Grayscale/Gamma Calibrations
Or you can connect a video test pattern generator. • Set the Lumagen input aspect ratio as 4:3 (1.33) for a 4:3 screen, 16:9 (1.76) for a 16:9 screen, or 2.35 for a projector with a fixed 2.35 anamorphic lens. The input aspect ratio should be set before adjusting the overscan. - Page 34 MENU→ Input→ Video Setup→ [Resolution]→ Picture→ Color/Hue → OK • Display a “Y/C Delay” test pattern. • Set Y/C Delay. Use the Lumagen Control to minimize the error in the blue and red timing verses Luma. The C and C channels are calibrated independently.
-
Page 35: Section 7 - Command Interface
Section 7 – Command Interface Section 7 – Command Interface Direct Commands Direct Commands are entered by using the Lumagen remote control. All of these commands can also be entered by using the RS232 interface. Output Vertical Resolution 480p: MENU 0 2 1... -
Page 36: Ir Command Interface
Input is 1.85 format. Use previous zoom setting. 1.85NZ 0010 10 1111 11 Input is 1.85 format. No zoom. 2.35 0010 10 0001 01 Input is 2.35 format. Use previous zoom setting. MEMA 0010 00 0101 10 Select MEMA RadianceXD Rev 1.0... -
Page 37: Serial Rs232 Command Interface
To connect to a PC, use a standard RS232 null modem cable. Port Settings • 9600 Baud • 8 data bits • No parity bit • One stop bit Connections Pin 2 – Receive Pin 3 – Transmit Pin 5 and connector shell - Ground RadianceXD Rev 1.0... -
Page 38: Ascii Commands
1.85 Input is 1.85 format. Use previous zoom setting. 1.85NZ Input is 1.85 format. No zoom. 2.35 Input is 2.35 format. Use previous zoom setting. MEMA Select MEMA MEMB Select MEMB MEMC Select MEMC MEMD Select MEMD RadianceXD Rev 1.0... - Page 39 ZY0M steps) Set output aspect ratio to MMM. Where the valid range is 110-250 which ZY1MMM corresponds to 1.10 to 2.50 Set output shrink parameters. Where MMM=top, NNN=left, OOO=bottom, PPP=right edge. Range is 0-255 for each. ZY1MMMNNNOOOPPP RadianceXD Rev 1.0...
-
Page 40: Section 8 - Appendix
Analog audio and video inputs, absolute maximum rating is ±1 volts, referenced to case Processing • 10-bit processing • Proprietary Lumagen “No-ring” scaling • Each input has 4 user configuration memories, with 8 resolution sub-memories for each • 2:2, 3:2 and 3:3 pull-down for SD/HD film sources •...
