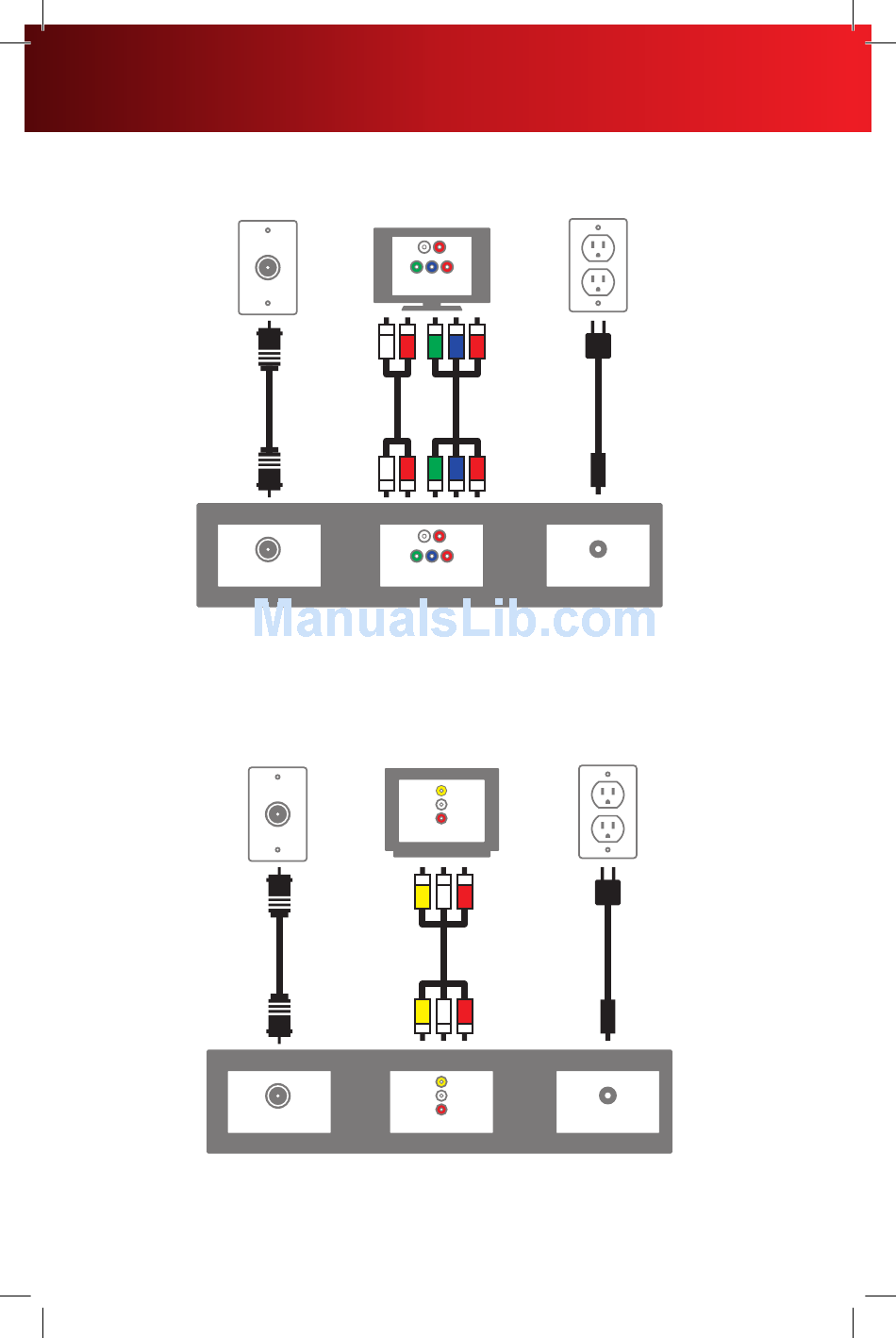

Component Video/Composite Audio Cable Connection
Cable Wall Outlet
Cable In/RF In
Composite Cable Connection
Cable Wall Outlet
Cable In/RF In
18
MO VID USER SIK 0112.indd 18
Digital Set-Top Box Connection
Back of TV
L
Y
Pb
Input
Coax Cable
L
Y
Pb
Output
Back of Digital Set-Top Box
Back of TV
L
R
Input
Coax Cable
L
R
Output
Back of Digital Set-Top Box
Electrical Outlet
R
Pr
Component
Video/Composite
Audio Cables
R
Pr
Power
Electrical Outlet
Video
Audio
Composite Cable
Video
Audio
Power
Power Cord
Power Cord
