F1A4 Field Service Manual – Level 1 and Level 2 Maintenance
3.2

REPLACING THE HANDLE ASSEMBLY

1. Remove the Control Box, Lower Shaft and Armrest (if fitted) from the Upper
Shaft.
2. Remove the Upper Camlock as described in Section 3.1.

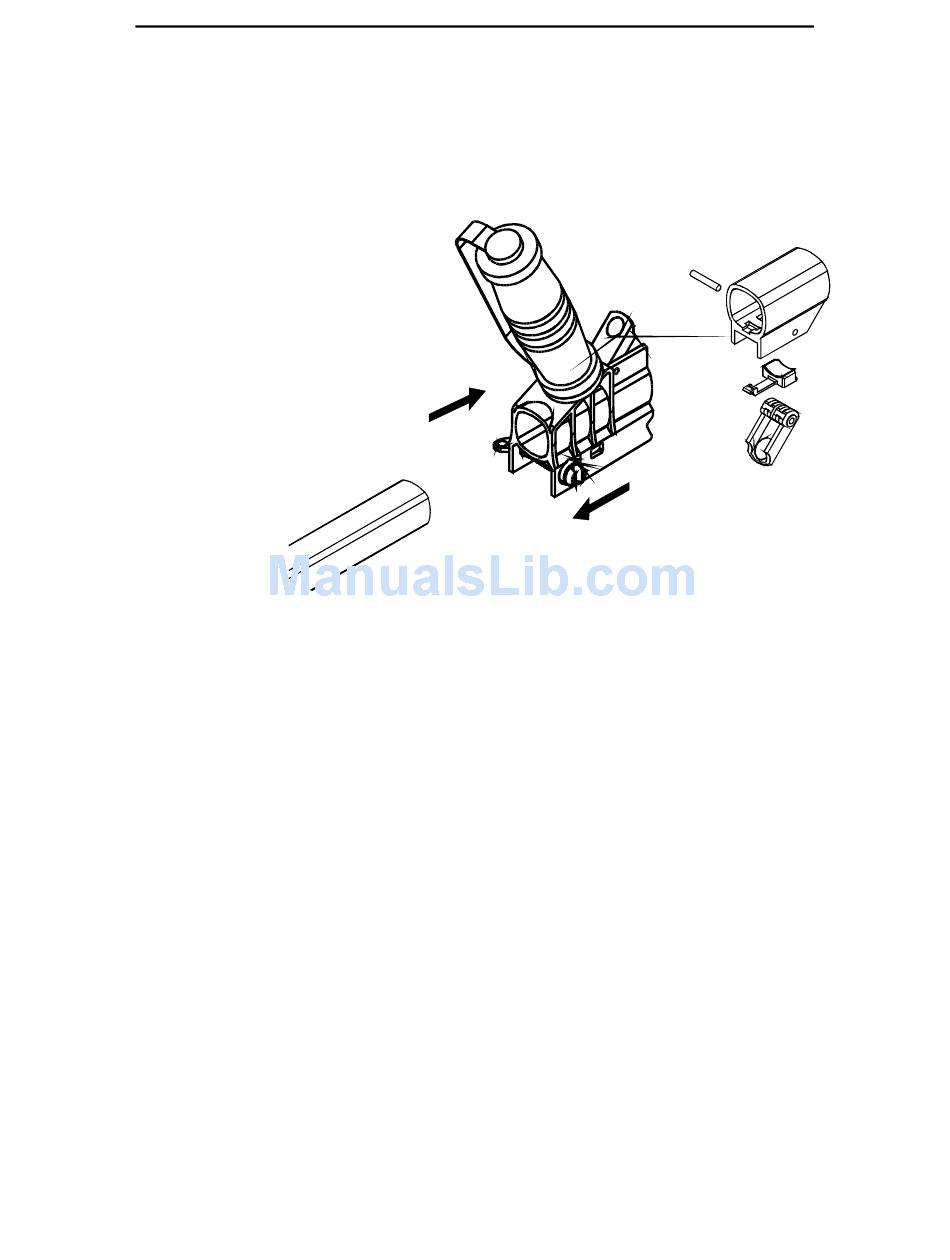

3. Release the Camlock
Handle and slide the
old Handle off the
shaft.
4. Slide the New Handle
onto the shaft ensuring
correct orientation.
5. Refit the new Upper Camlock as described in Section 3.1.
Page 14
