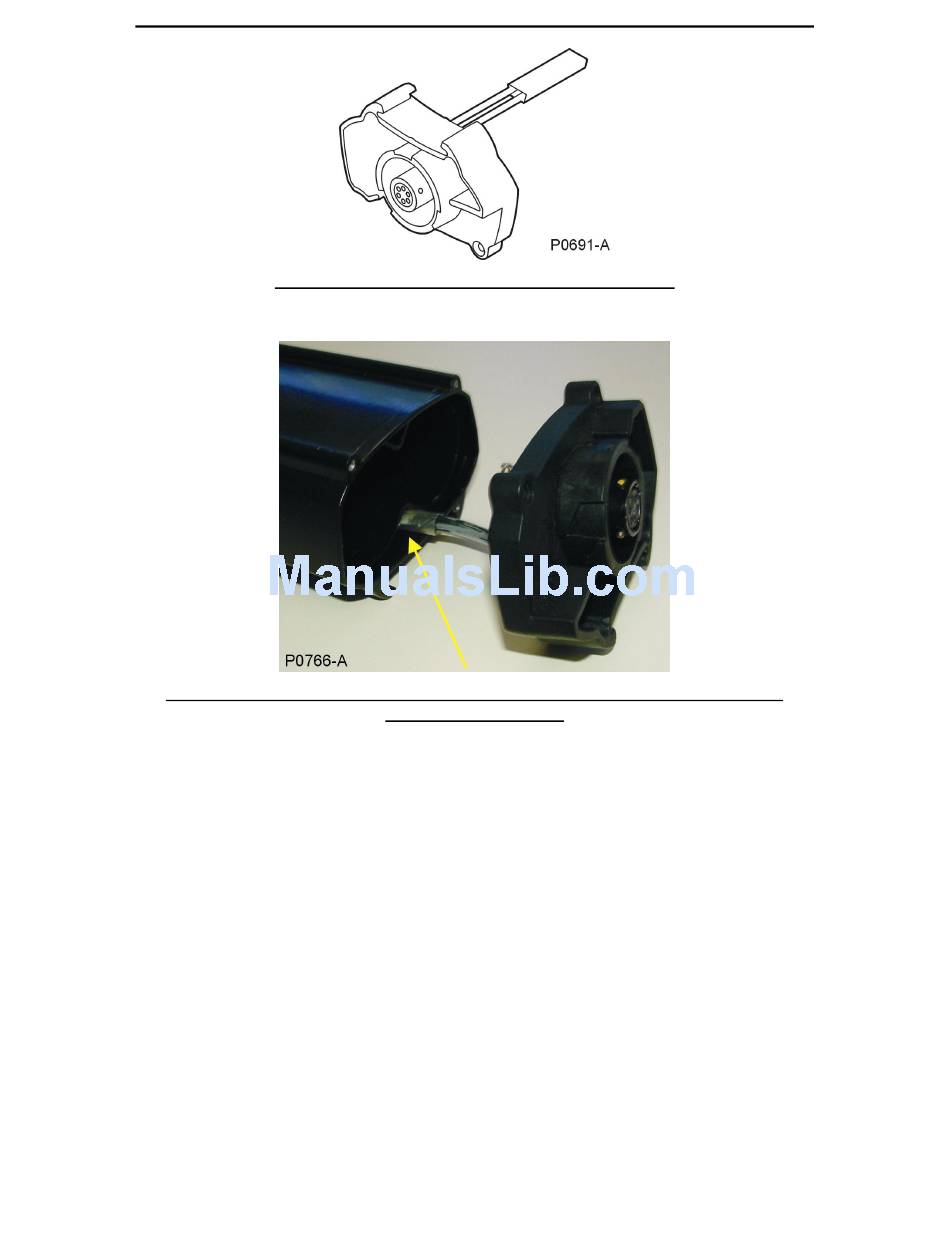

Figure 87 Fully Assembled Battery Pack Rear Cap
•
Fit the fully assembled rear cap onto the housing, ensure that the over-
current sensor is between the battery tube and housing.
Figure 88 Ensure that the over-current sensor is between the battery tube and
• Refit the four screws.
•
Ensure that these screws are done up evenly otherwise the O-ring in the rear
of the cap may be damaged.
housing (yellow arrow)
