F3 Field Service Manual – Level 1 Maintenance

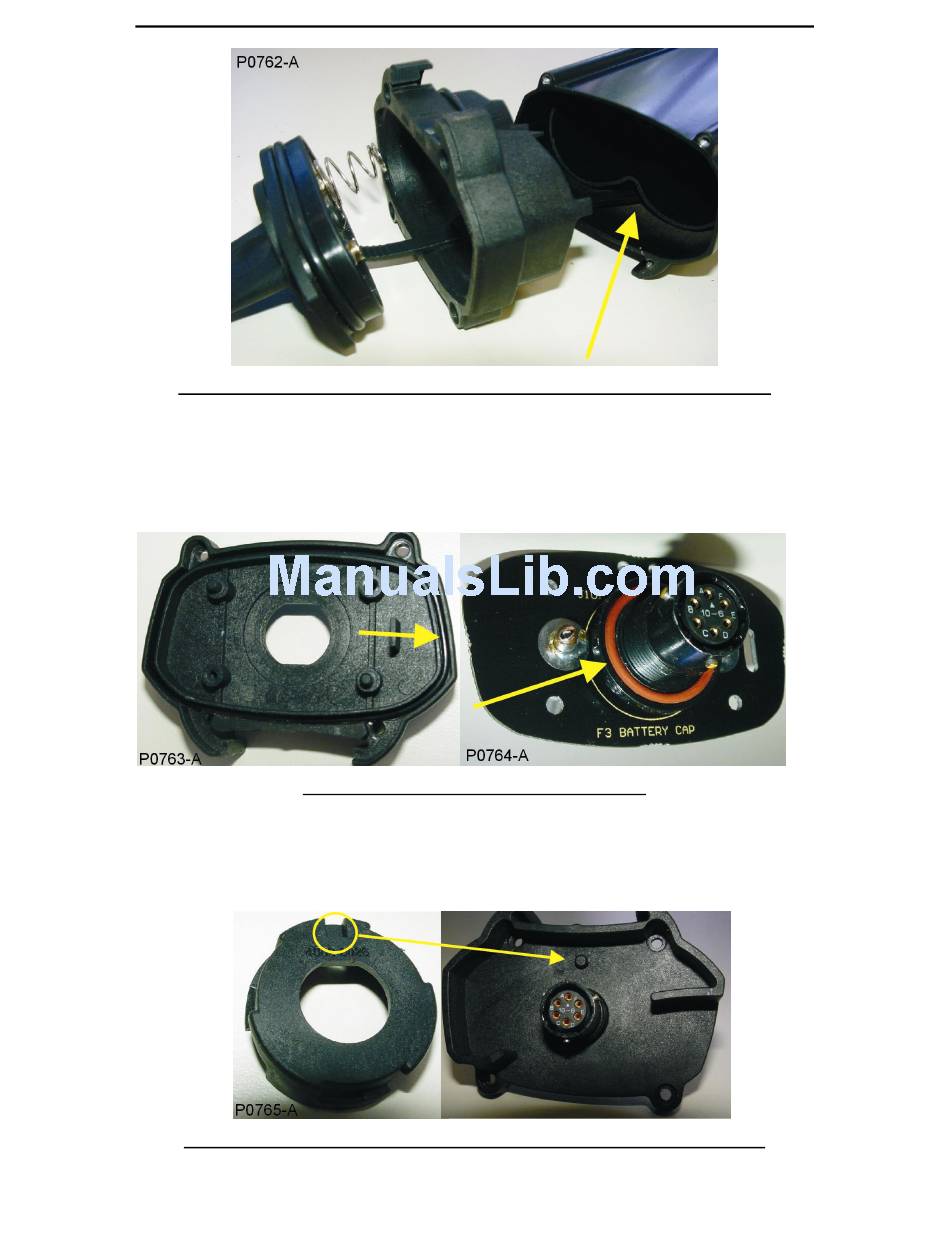

Figure 84 Ensure that the Tether is between the Battery Tube and Housing
• Fit the faceplate (over the lid) to the front cap and insert the four screws.
Ensure that these screws are done up evenly otherwise the O-ring in the rear
of the front cap may be damaged.
b. Rear Cap
•
Ensure that an O-ring is present in the rear cap and on the plug base.
Figure 85 Rear Cap O-ring and Plug O-ring
•
Align and position PCB to the rear cap and refit the two screws to the PCB.
• Position the collar bayonet to the rear cap
Note: The recess in the collar bayonet must be positioned over the protruding lug in
the rear cap.
Figure 86 Position the recess in the collar bayonet over the protruding lug
•
Refit the socket-retaining nut.
