F3 Field Service Manual – Level 1 Maintenance
• At the end of the tether is the rivet, which secures the tether inside the battery
pack. Push the pin of the rivet all the way through the rivet, and then remove
the rivet from the tether. The tether can now be pulled out through the front
cap and faceplate.

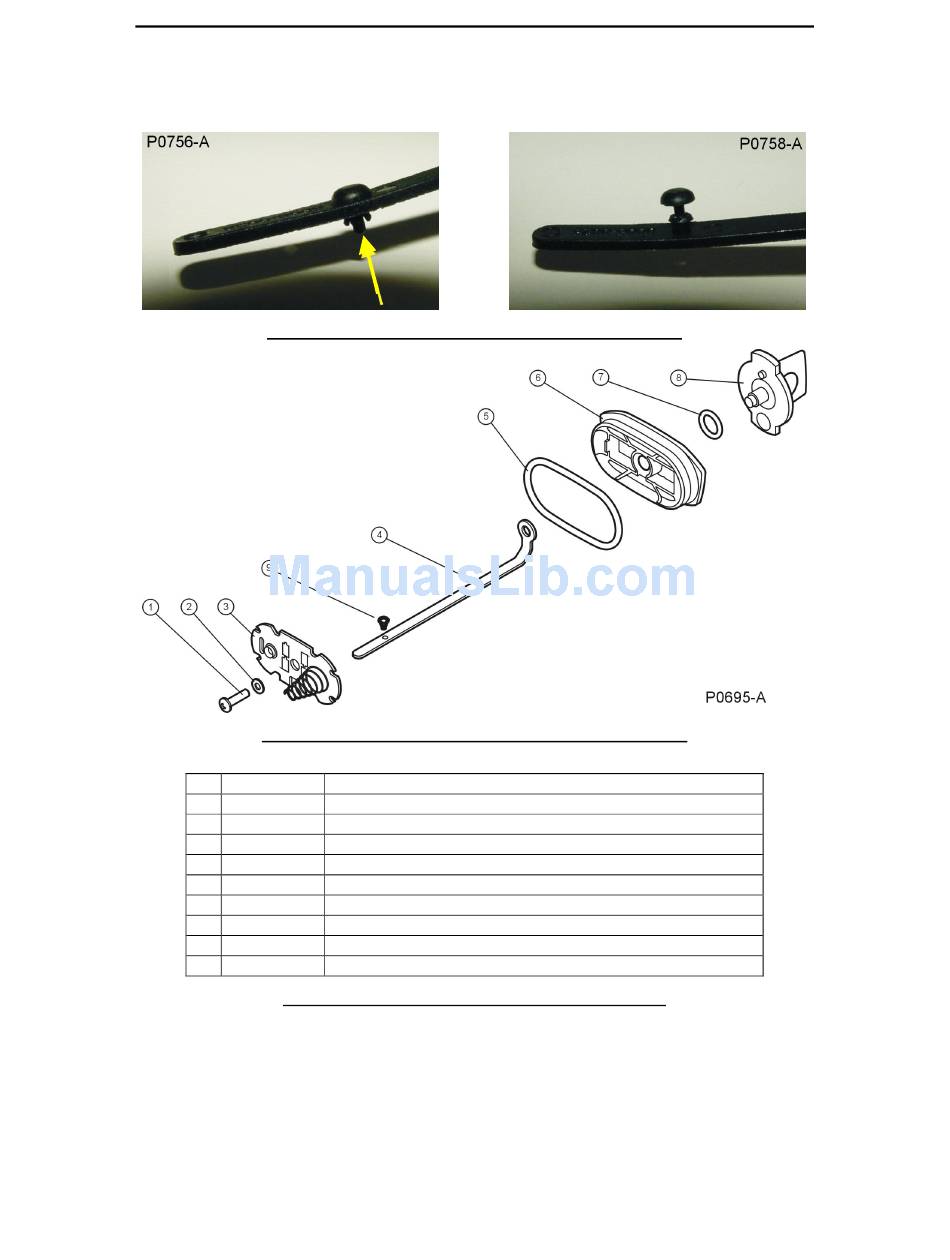

Figure 73 Push the pin out of the rivet (yellow arrow)
Figure 74 Battery Pack Lid and Tether Exploded View
0705-0015
1 4003-0073
2 4005-0061
3 5904-0085
4 3004-0005
5 4309-0047
6 0304-0018
7 4309-0038
8 4313-0002
9 3004-0005
Figure 75 Battery Pack Lid and Tether Parts List
•
The battery pack lid, faceplate or front cap can now be replaced if required.
• Undo the screw on the PCB inside the battery pack lid. All parts of the
battery pack lid can now be removed.
PANEL ASSY LID BP F3 (BATTERY PACK LID)
SCREW NO 4X16 POSI SS
WASHER
PCB LID BP F3
TETHER (part of TETHER WITH RIVET KIT SVC BP F3)
O-RING 50MM BP LID F3
LID BP F3
O-RING 11MM BP LID F3
LOCK LID BP F3
RIVET (part of TETHER WITH RIVET KIT SVC BP F3)
