F3 Field Service Manual – Level 1 Maintenance
Place the tail of the middle pressure block into the recess in the front of the
middle camlock body and push the block into the square hole. Refit the cam
lever and cam lever pivot pin.
protrude too far into the shaft, push it back into the camlock body if required
or difficulty may be encountered when fitting the lower shaft.

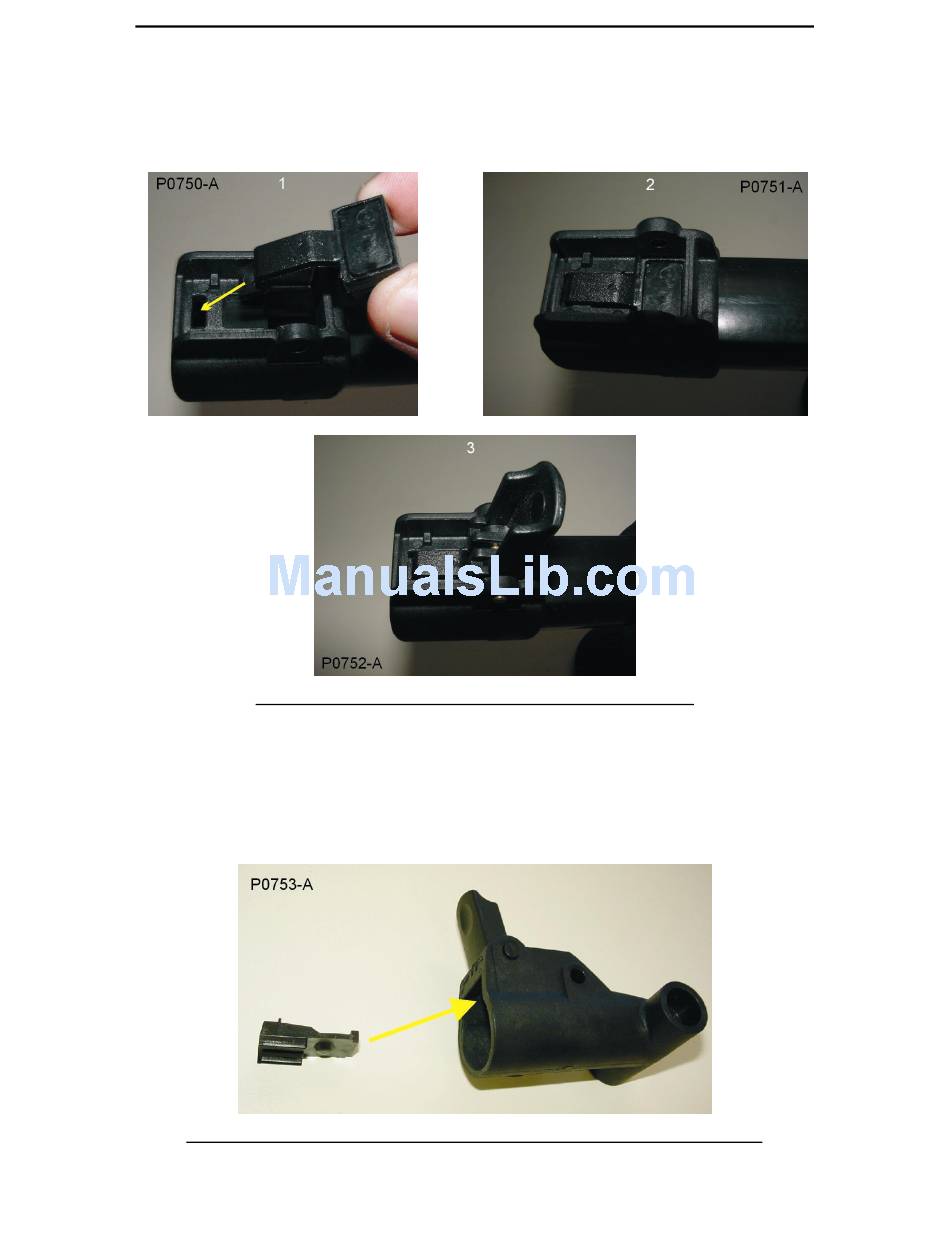

Figure 65 Reassembling the Middle Camlock Assembly
•
Slide the middle shaft all the way into the upper shaft and close the upper
cam lever.
•
Open the middle cam lever.
c. Lower camlock and shaft
• Refit the cam lever with a lower camlock pin into the camlock body. Open the
lower cam lever.
body.
Figure 66 Fitting the Lower Pressure Block into the Lower Camlock Body
Ensure that the pressure block does not
Place the lower pressure block into the lower camlock
