F3 Field Service Manual – Level 1 Maintenance
• Slide the middle shaft into the rear of the upper shaft, square hole facing
down.

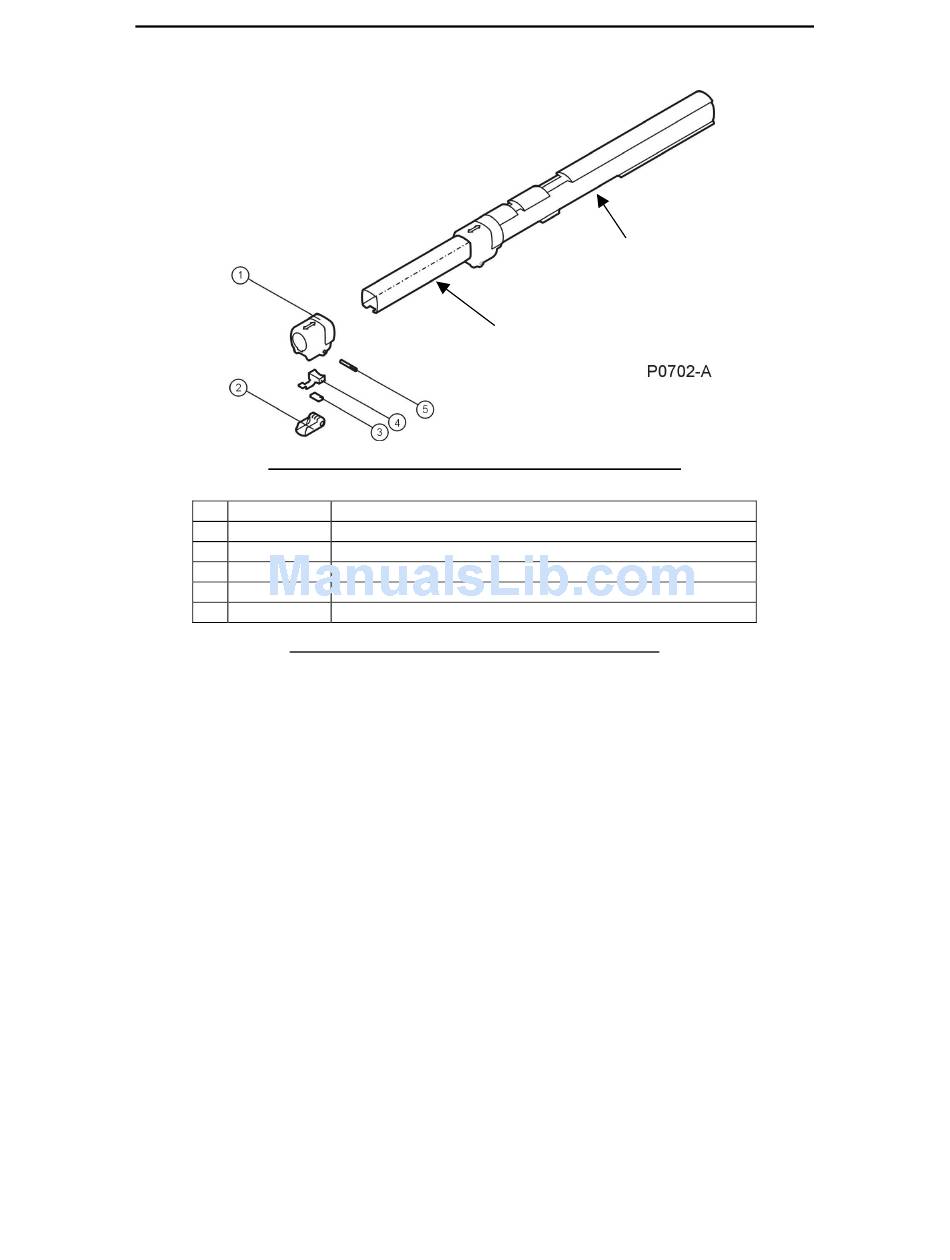

Figure 63 Middle Camlock Assembly Exploded View
3004-0012
1 8008-0023
2 8008-0005
3 8008-0030
4 8008-0024
5 4308-0003
Figure 64 Middle Camlock Assembly Parts List
•
Refit the middle camlock body to the middle shaft, ensuring that that the
square hole in the camlock is aligned with the cut-out in the middle shaft.
Middle Shaft
CAMLOCK KIT MIDDLE SHAFT F3
CAMLOCK BODY MIDDLE F3
CAM LEVER F3
WEAR PLATE F3
PRESSURE BLOCK MIDDLE CAMLOCK F3
CAM LEVER PIVOT PIN
Page 40
Upper Shaft
