F3 Field Service Manual – Level 1 Maintenance
b. Middle camlock and shaft
3004-0008
1 3004-0012
2 8007-0024
3 8003-0019
•
Attach the two collar shafts to the rear of the middle shaft. They should fit
snugly on the shaft and sit closely together.

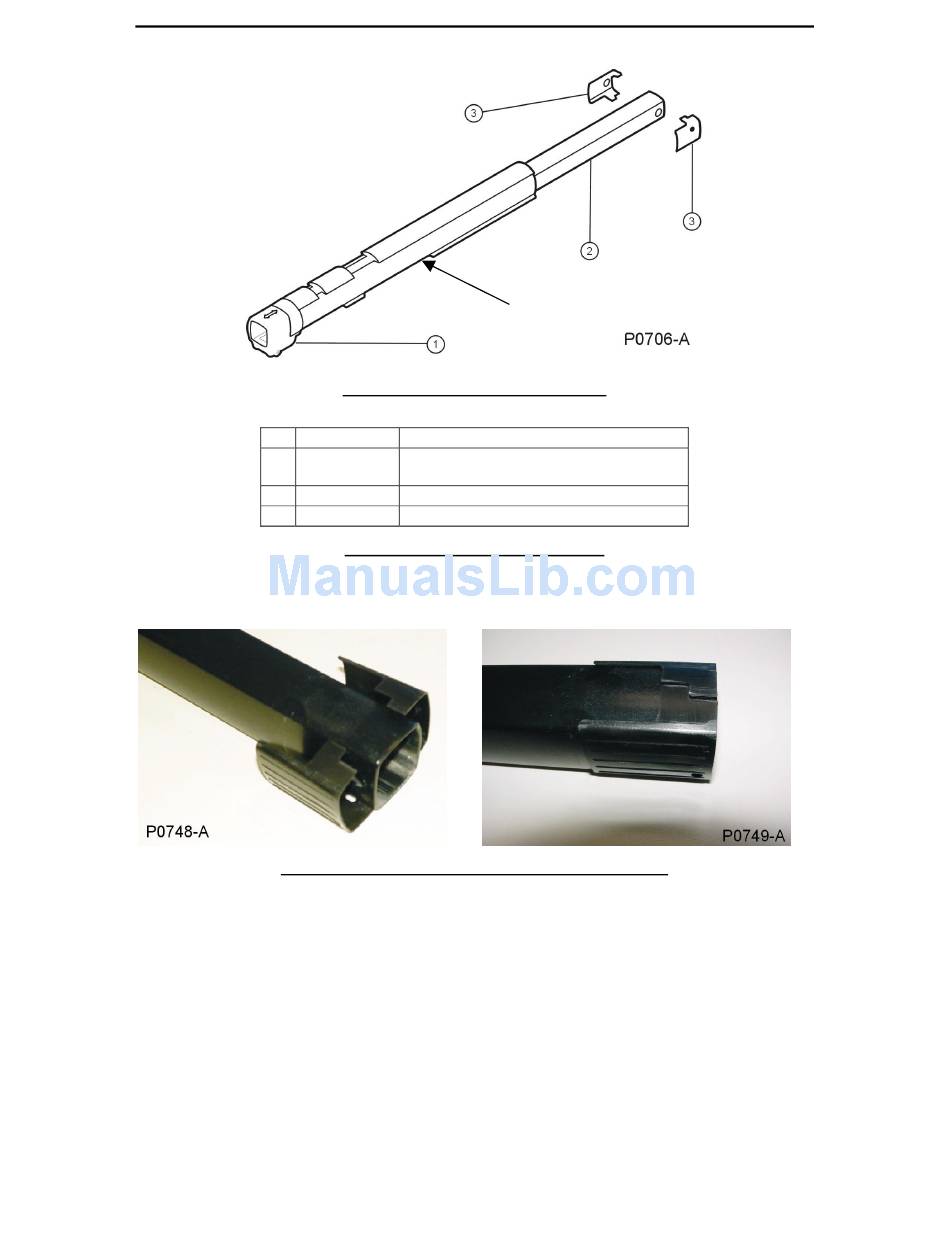

Figure 62 Attaching Collar Shafts to Middle Shaft
3
Upper Shaft
Figure 60 Fitting the Middle Shaft
MIDDLE SHAFT KIT SVC BLACK F3
CAMLOCK KIT MIDDLE SHAFT F3
(not shown – see next figure)
MIDDLE SHAFT BLACK F3
COLLAR SHAFT MIDDLE F3
Figure 61 Middle Shaft Parts List
