F3 Field Service Manual – Level 1 Maintenance
3.6.2. Shafts Reassembly:
a. Upper camlock
• Refit the upper camlock body to the upper shaft, ensuring that that the
square hole in the camlock is aligned with the cut-out in the upper shaft.

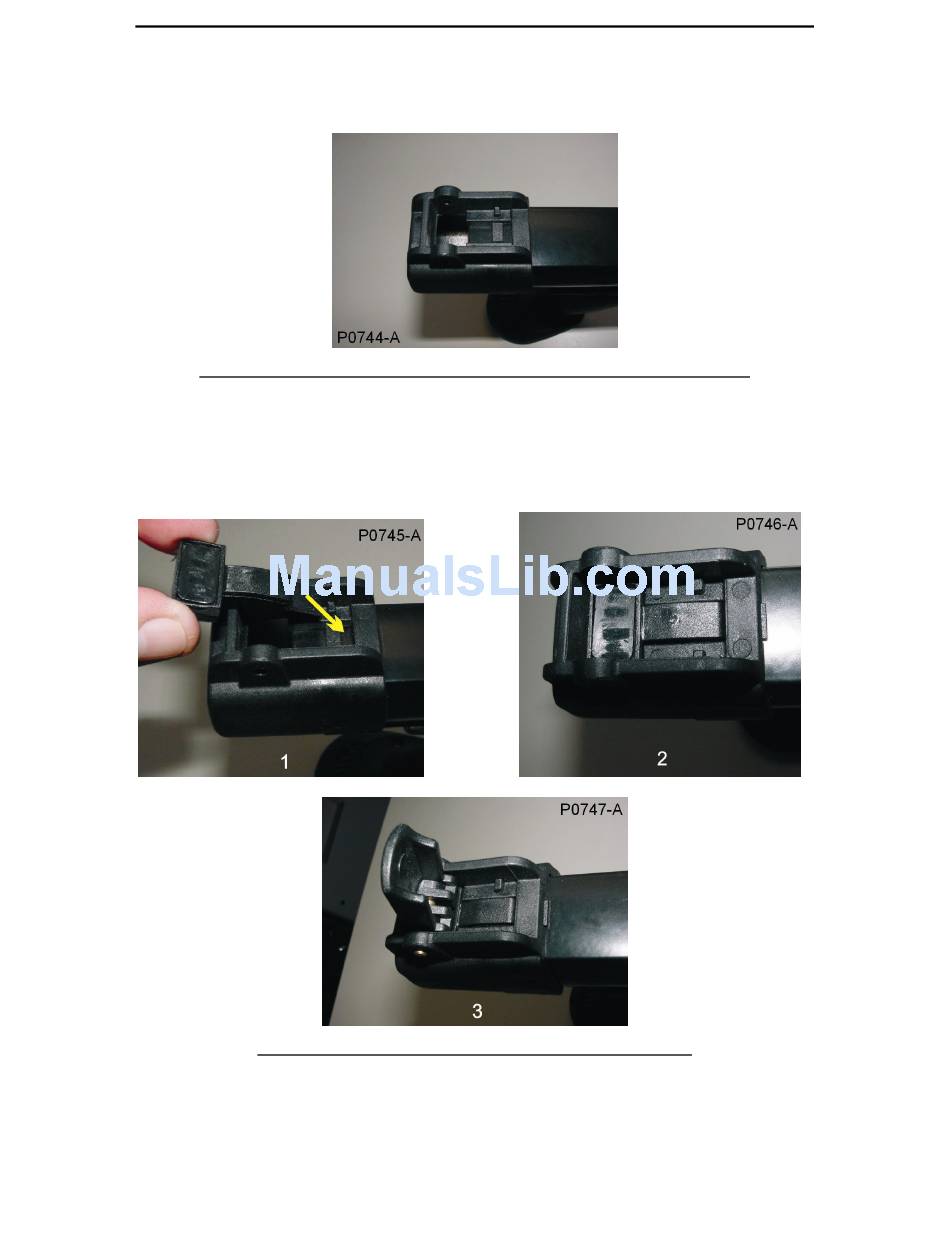

Figure 58 Upper Camlock Body on Upper Shaft, square holes aligned
•
Place the tail of the upper pressure block into the recess in the rear of the
upper camlock body and push the block down into the square hole. Refit the
cam lever and cam lever pivot pin.
protrude too far into the shaft, push it back into the camlock body if required
or difficulty may be encountered when fitting the middle shaft.
Figure 59 Reassembling the Upper Camlock Assembly
•
Open the upper cam lever.
Ensure that the pressure block does not
