c. Upper camlock

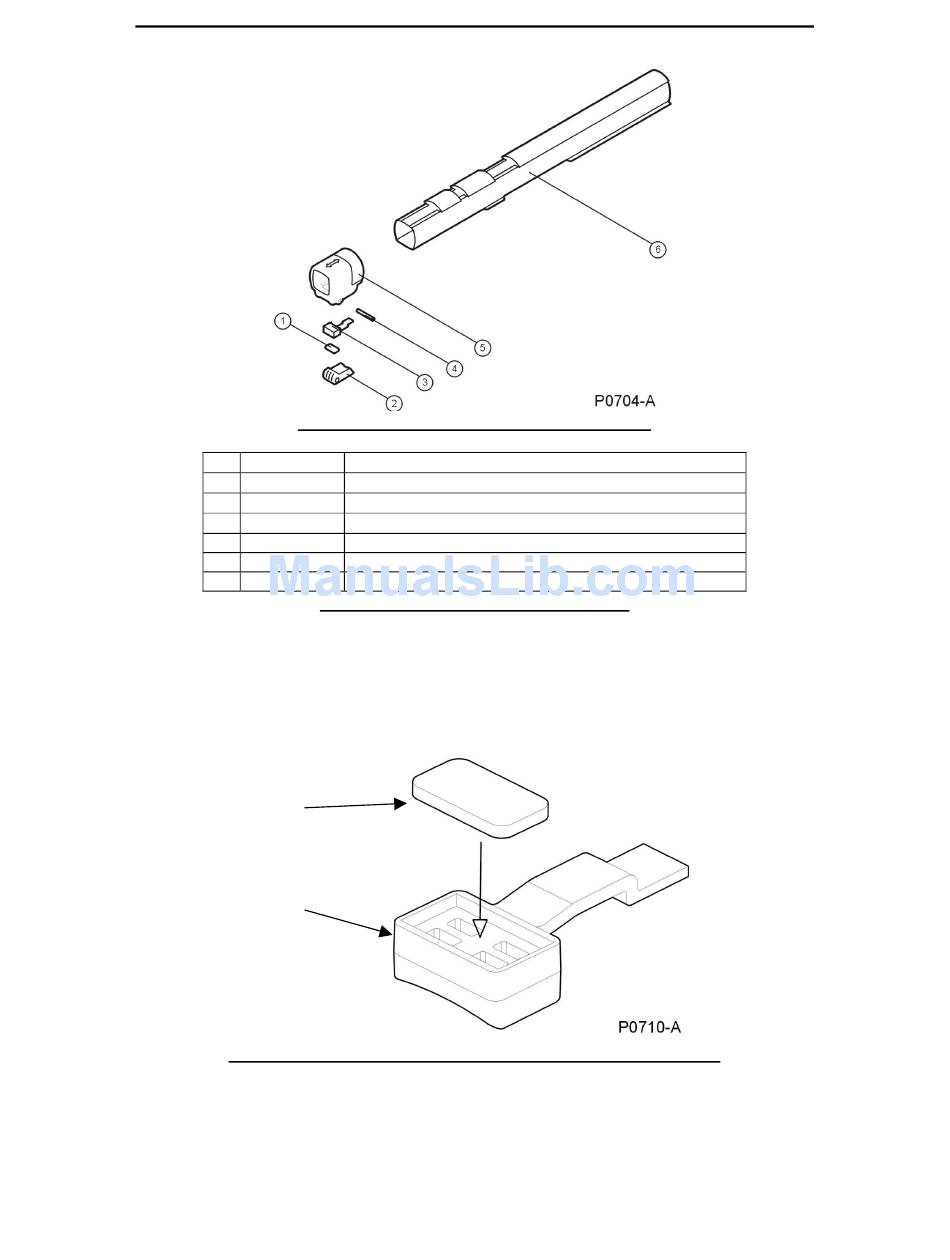

Figure 55 Upper Camlock Kit Exploded View
3004-0013
1 8008-0030
2 8008-0005
3 8008-0022
4 4308-0003
5 8008-0021
6 8007-0023
•
Use the 3mm T handle hex driver to push out the cam lever pivot pin from the
upper camlock. Remove the cam lever. Remove the upper pressure block
by pushing the block out from inside the shaft.
•
The wear plate can now be replaced if required. Glue the new wear plate
into the pressure block with a small drop of super-glue, allow the super-glue
to dry before reassembly.
Wear Plate
Upper
Pressure
Block
Figure 57 Glue the Wear Plate with a small drop of super-glue
•
Remove the upper camlock body from the upper shaft.
CAMLOCK KIT UPPER SHAFT F3
WEAR PLATE F3
CAM LEVER F3
PRESSURE BLOCK UPPER F3
CAMLEVER PIVOT PIN
CAMLOCK BODY UPPER F3
UPPER SHAFT BLACK F3 (not part of Camlock Kit)
Figure 56 Upper Camlock Kit Parts List
