b. Middle camlock and shaft

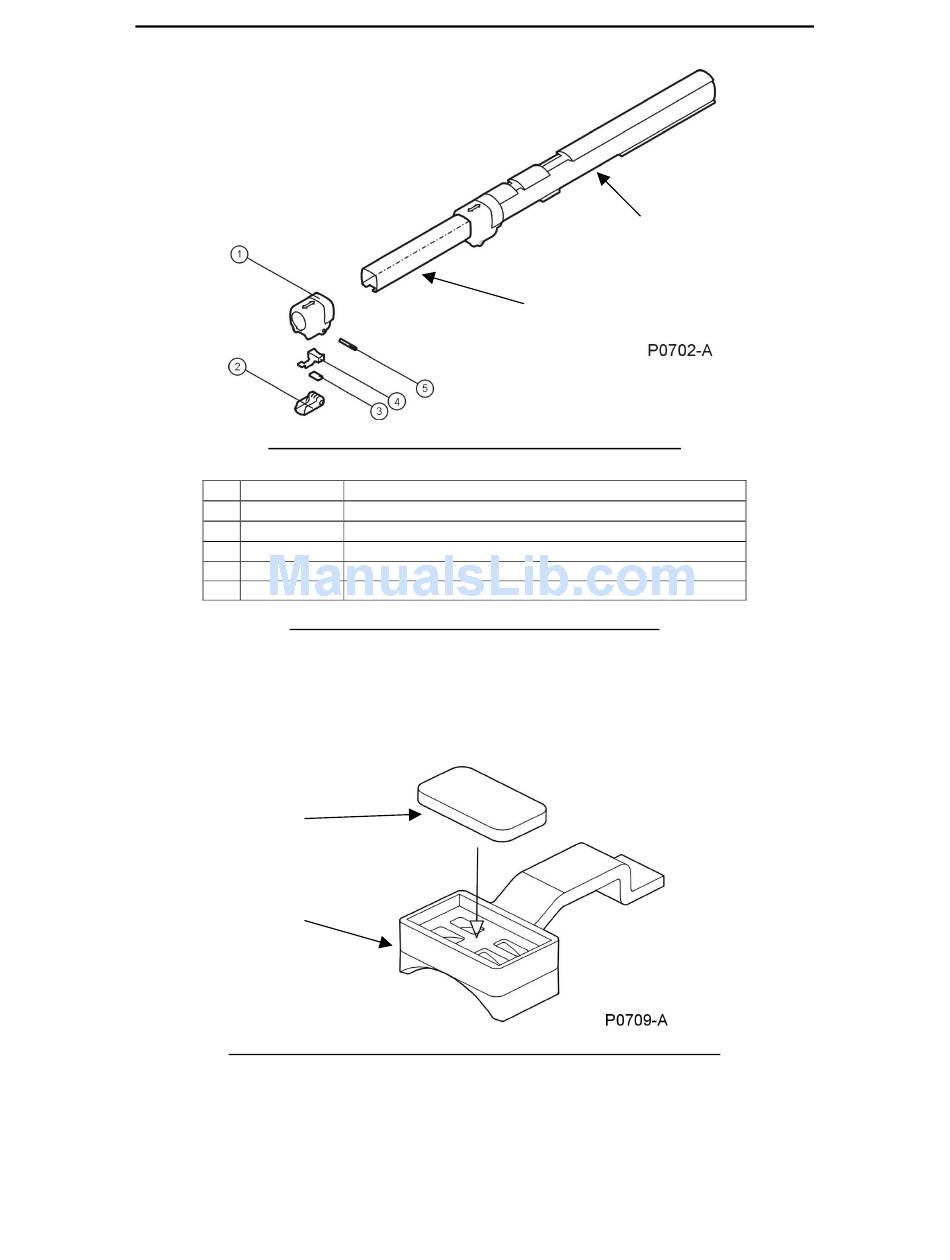

Figure 52 Middle Camlock Assembly Exploded View
3004-0012
1 8008-0023
2 8008-0005
3 8008-0030
4 8008-0024
5 4308-0003
Figure 53 Middle Camlock Assembly Parts List
•
Use the 3mm T handle hex driver to push out the cam lever pivot pin from the
middle camlock body. Remove the cam lever. Remove the pressure block
by pushing it out from inside the shaft.
•
The wear plate can now be replaced if required. Glue the new wear plate
into the pressure block with a small drop of super-glue, allow the super-glue
to dry before reassembly.
Wear Plate
Middle
Pressure
Block
Figure 54 Glue the Wear Plate with a small drop of super-glue
•
Remove the middle camlock body from the middle shaft.
• Remove the middle shaft by pushing it back through the upper shaft.
• Remove the two collar shafts from the rear of the middle shaft if required.
CAMLOCK KIT MIDDLE SHAFT F3
CAMLOCK BODY MIDDLE F3
CAM LEVER F3
WEAR PLATE F3
PRESSURE BLOCK MIDDLE CAMLOCK F3
CAM LEVER PIVOT PIN
Page 36
Upper Shaft
Middle Shaft
