F3 Field Service Manual – Level 1 Maintenance
• Position the two tabs at the rear of the coil retainer cover into the cut-outs in
the rear of the coil top. Pivot the front of the coil retainer cover down
towards the coil top. Use the palm of the hand to snap the coil retainer cover
into the coil top.

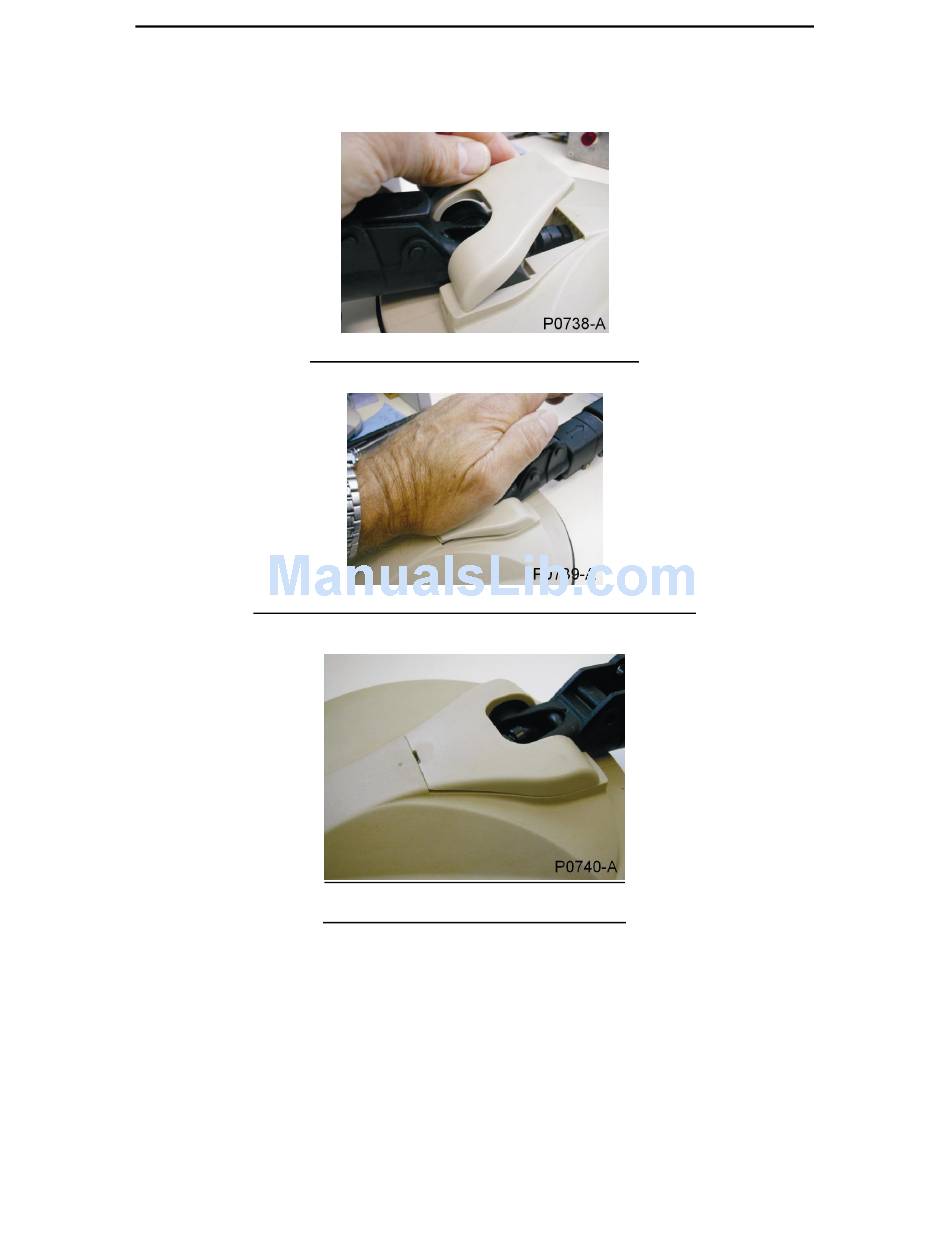

Figure 43 Positioning Coil Retainer Cover
Figure 44 Snap the Coil Retainer Cover into the Coil top
Figure 45 Coil Retainer Cover in place
