F3 Field Service Manual – Level 1 Maintenance
Using the 6.5mm screwdriver, carefully lever the coil retainer cover (1) off the
coil top and remove it.
Remove the lower shaft with lower camlock assembly from the coil top.
Carefully pull the coil cable out from inside the shafts.
Carefully lever the skid plate off the coil using the 6.5mm screwdriver.
Note: If there is any damage to the coil or coil cable, the coil must be replaced.
There are no repairable parts of the coil.
3.5.2. Coil Refit:
Refit the skid plate by pushing it onto the coil.
Ensure that the lower camlock assembly is completely reassembled.
Connect the coil cable puller to the coil plug.

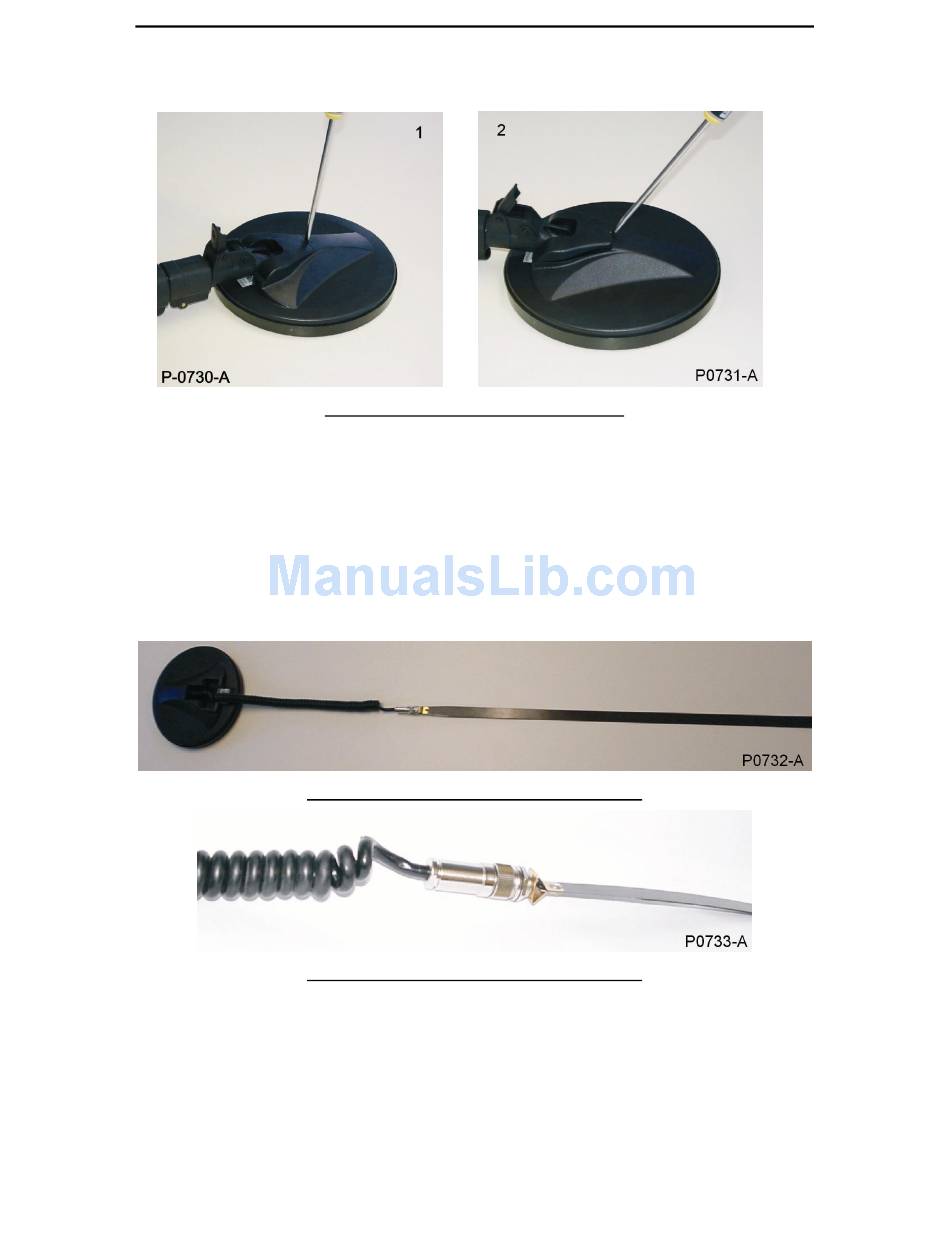

Figure 38 Coil with Coil Puller attached (1)
Figure 39 Coil with Coil Puller attached (2)
Figure 37 Removing the Coil Retainer
Page 30
