3.5.

Coil

3.5.1. Coil Removal:
• Retract the shafts.
• Remove Electronics pack (Section 3.4.1 Electronics Pack Removal – the coil
plug is disconnected during this procedure).
3004-0003
1 2004-0037
2 2021-0054
3 4005-0039
4 8009-0007
•
Remove coil plug retainer from around the coil plug. Ensure that excessive
force is not applied to the coil plug. The coil plug will now slide down into the
shafts.
Figure 36 Removing the Coil Plug Retainer

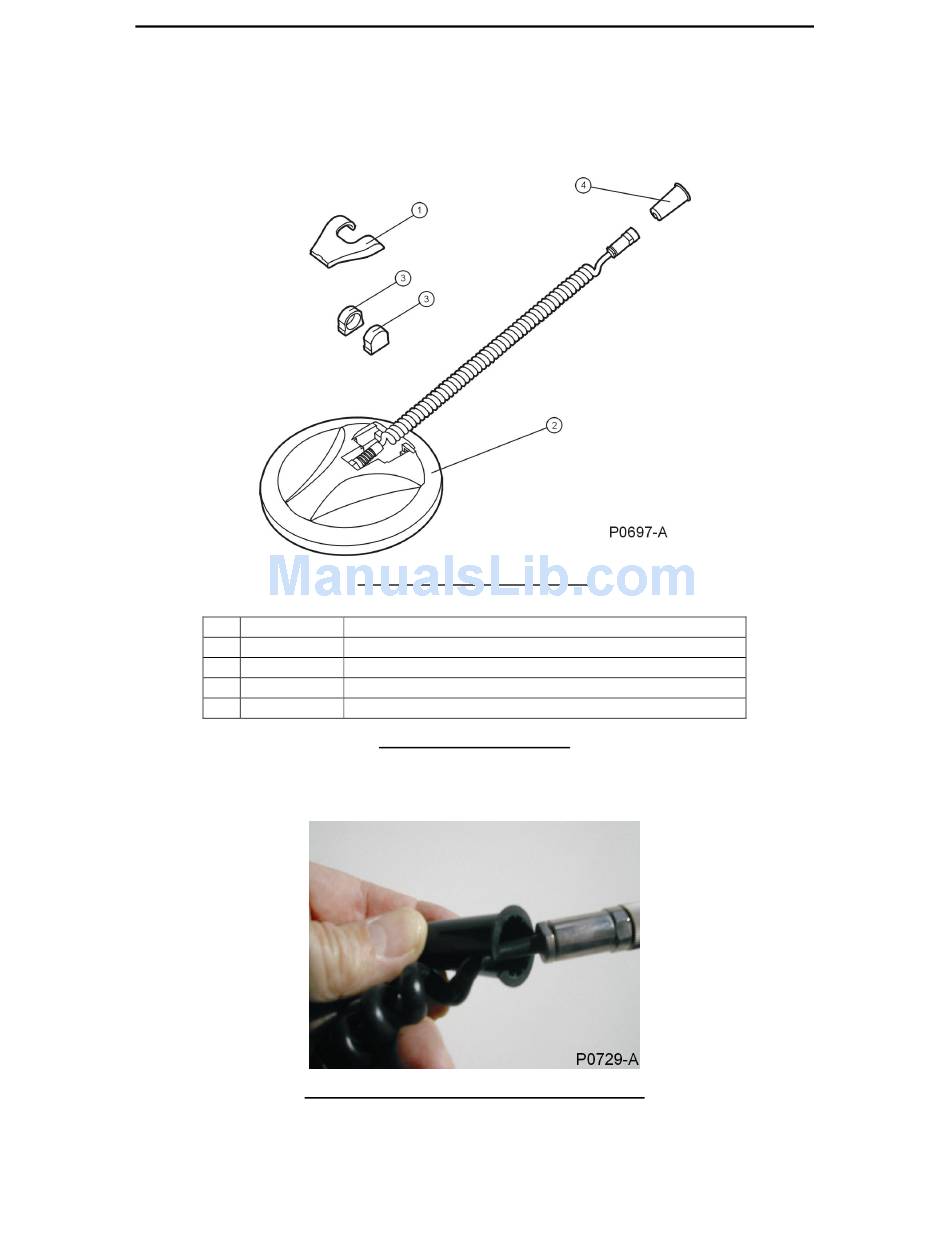

Figure 34 Coil Exploded View
COIL KIT SVC F3
RETAINER COIL BLACK F3
COIL F3
BLOCK FRICTION COIL F3
RETAINER PLUG F3
Figure 35 Coil Parts List
