F3 Field Service Manual – Level 1 Maintenance
• If required, slide the split grommet over the thickened section of the main
wiring loom cable and position the split grommet (over thickened section) into
the bulkhead cover.

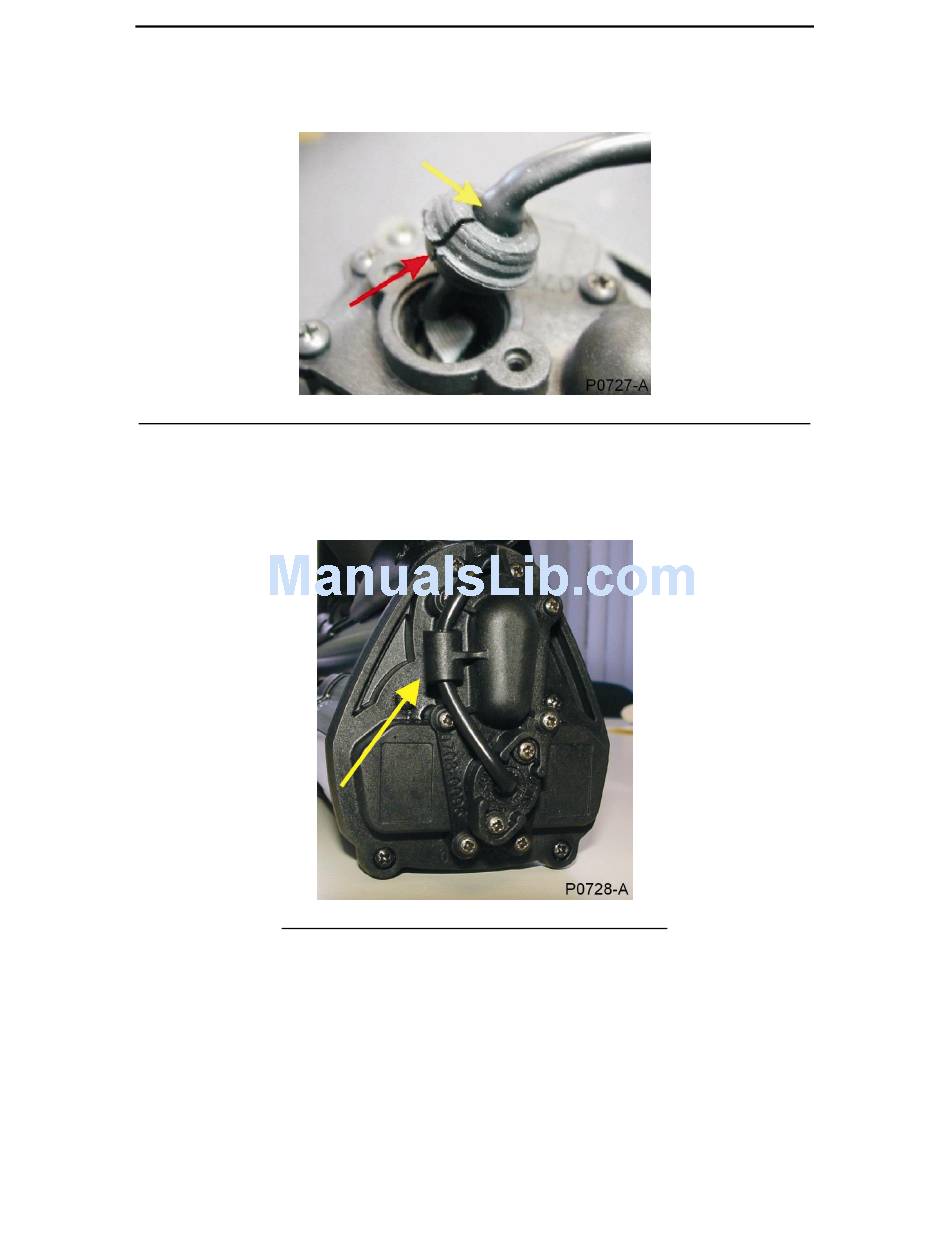

Figure 32 Split grommet (red arrow) over thickened area of main wiring loom (yellow)
•
If required, fit the ribbon cable cover (13) over the grommet and secure with
two screws.
• Route the Main Wiring Loom around the cable router on the side of the
bulkhead cover as per the following figure.
Figure 33 Main Wiring Loom around cable router
• Refit sensitivity endcap and battery pack.
