F3 Field Service Manual – Level 1 Maintenance
3.4.2. Electronics Pack Disassembly:
Plug retaining nut

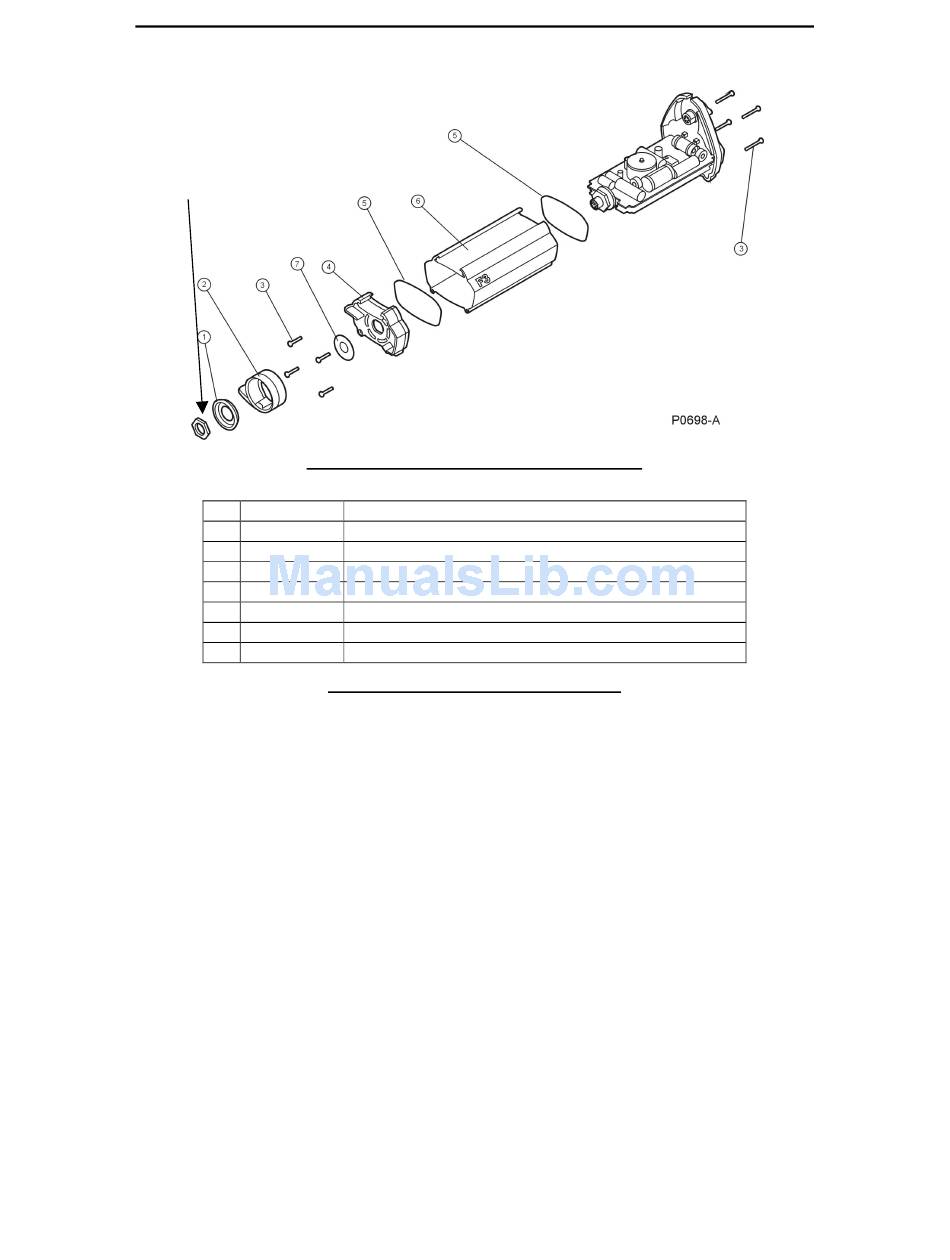

Figure 25 Electronics Pack Exploded View
3004-0001
1 4005-0045
2 8008-0027
3 4003-0078
4 0703-0082
5 4309-0040
6 0701-0029
7
• Using the 7/8" tubular socket spanner, remove the plug retaining nut at the
front of the electronics pack. The washer bayonet, lever bayonet and shim (if
fitted) can now be removed if required.
• Remove 4 screws holding the cap front to the electronics pack housing.
Remove the cap front.
•
Remove 4 screws from the electronics pack rear panel. Slide the electronics
pack housing away from the bulkhead.
ELECTRONICS PACK KIT SVC BLACK F3
WASHER BAYONET EP F3
LEVER BAYONET EP F3
SCREW M3X16 POSI SS
CAP FRONT EP F3
O-RING ENDCAP BP EP F3
COVER BLACK EP F3
SHIM (if fitted)
Figure 26 Electronics Pack Parts List
