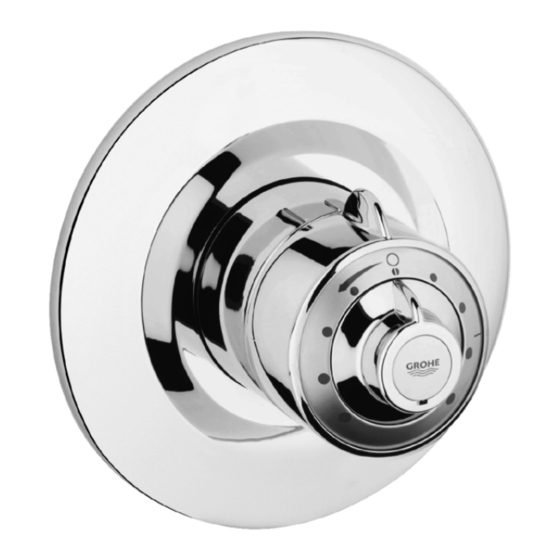

Concealed dual thermostat mixing valve

Advertisement

956193.book Seite 1 Mittwoch, 19. Dezember 2001 9:26 09
Avensys
Concealed Dual Thermostat Mixing Valve
34 032 and Variants
Installation Instructions and Operating Guide
Please leave this document with the user after finishing installation!
95.619.331/ÄM 41 385/12.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the Avensys and is the answer not in the manual?

Questions and answers

Summary of Contents for Grohe Avensys

  • Page 1 956193.book Seite 1 Mittwoch, 19. Dezember 2001 9:26 09 Avensys Concealed Dual Thermostat Mixing Valve 34 032 and Variants Installation Instructions and Operating Guide Please leave this document with the user after finishing installation! 95.619.331/ÄM 41 385/12.01...
  • Page 2 kl956193.fm Seite 1 Montag, 7. Januar 2002 8:34 08 Table Of Contents Installation Dimensions (mm) 34 032 34 030 Headshower Wallplugs Screws Bracket Plug Valve Body and Fitting Template Handshower Elbows Filters Filter Seals Outlet Nipple Flow Limiters 34 031 34 083 Spacers Wallplate Support...
  • Page 3 kl956193.fm Seite 2 Montag, 7. Januar 2002 8:34 08 Spare Parts...
  • Page 4 Rough Installation ....7 Thank you for choosing a GROHE product. Preassemble Valve ....8 Please follow these instructions carefully Connect Valve .
  • Page 5 Technical Data Functioning Principle Specification This Avensys mixing valve is a thermostatic x Concealed thermostatic shower mixing mixer with wax cartridge. Turning the shut- valve off handle in a counter-clockwise direction x Flow pressure opens the water flow. Turning the tem- - Low pressure 0.1 - 1 bar...
  • Page 6 956193.book Seite 7 Mittwoch, 19. Dezember 2001 9:26 09 Installation Rough Installation 2.Drill 6mm diameter holes and insert the supplied wallplugs (A1), see Fig. [2]. The thermostatic shower mixing valve can be installed in two different ways. The mixing outlet can be at the bottom for use with a handshower or at the top for use with a headshower.
  • Page 7 956193.book Seite 8 Mittwoch, 19. Dezember 2001 9:26 09 Installation Preassemble Valve 4.Screw valve body (E) to bracket (A) with fixing screws (E1), see Fig. [6]. 1.Remove the two screws (B1) from the fitting template (B), then remove the template, see Fig. [4]. 5.If there is a pressure differences between 2.Close free outlet with plug (C), see Fig.
  • Page 8 956193.book Seite 9 Mittwoch, 19. Dezember 2001 9:26 09 Installation Connect Valve 5.Connect elbows (G) to valve body (E) and tighten nuts (G2) [torque min. 20 Nm], see 1.Connect elbows (G) onto the supply pipes, Fig. [9]. see Fig. [7]. Open hot and cold water supply.
  • Page 9 956193.book Seite 10 Mittwoch, 19. Dezember 2001 9:26 09 Installation 4.Slide the wallplate support (L) over the Wallplate Installation cover ring (J) in position TOP. 1.Remove the two screws (B1) from the Additionally seal the top edge of the fitting template (B), then remove the wallplate support with silicone if it is fitted template, see Fig.
  • Page 10 956193.book Seite 11 Mittwoch, 19. Dezember 2001 9:26 09 Installation Adjustment 5. Pull off temperature handle (P), see Fig. [15]. The temperature of the outflowing water is factory set to 43 qC. A temperature adjust- ment is necessary if: x The maximum water temperature measured at the outlet varies from the factory set temperature.
  • Page 11 956193.book Seite 12 Mittwoch, 19. Dezember 2001 9:26 09 Maintenance I. Control Unit 11. Unscrew screws (B1 or L1) and take out inserts (K). 1. Shut off hot and cold water supply! 12. Remove wallplate support (L). 2. Turn the shut-off handle counter- 13.
  • Page 12 4.Take out and replace non-return valve (9). 10. Push on stop ring (U) with catch (U1) Reassemble in reverse order. on top. Only genuine GROHE replacement parts 11. Reinstall cover ring (J) with mark (J1) must be used. on top.
  • Page 13 Care We want to ensure that you get long-lasting your fitting dull and scratched. As the for- satisfaction and pleasure from your GROHE mulations of commercially available cleaning fitting. Therefore, please read the following agents frequently change, we cannot gua-...
  • Page 14 Fax: 0208 / 594 88 98 AG & Co. KG © 2000 Friedrich Grohe Friedrich Grohe AG & Co. KG · P.O. Box 1361 · 58653 Hemer/Germany Tel. (0) 23 72 / 93 - 0 · Fax: (0) 23 72 / 93 13 22...
