Summary of Contents for Clarion DXZ728R

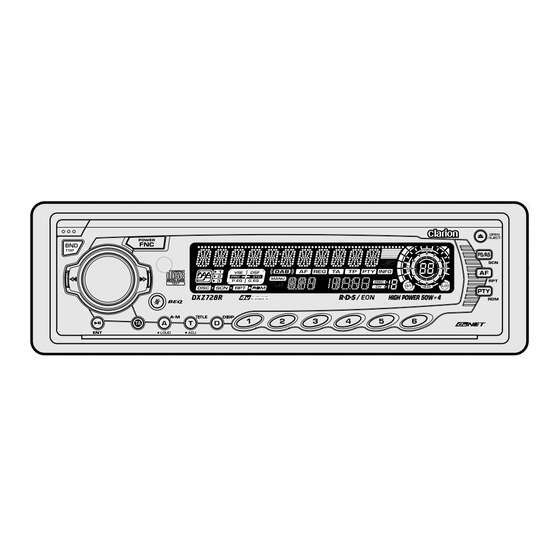

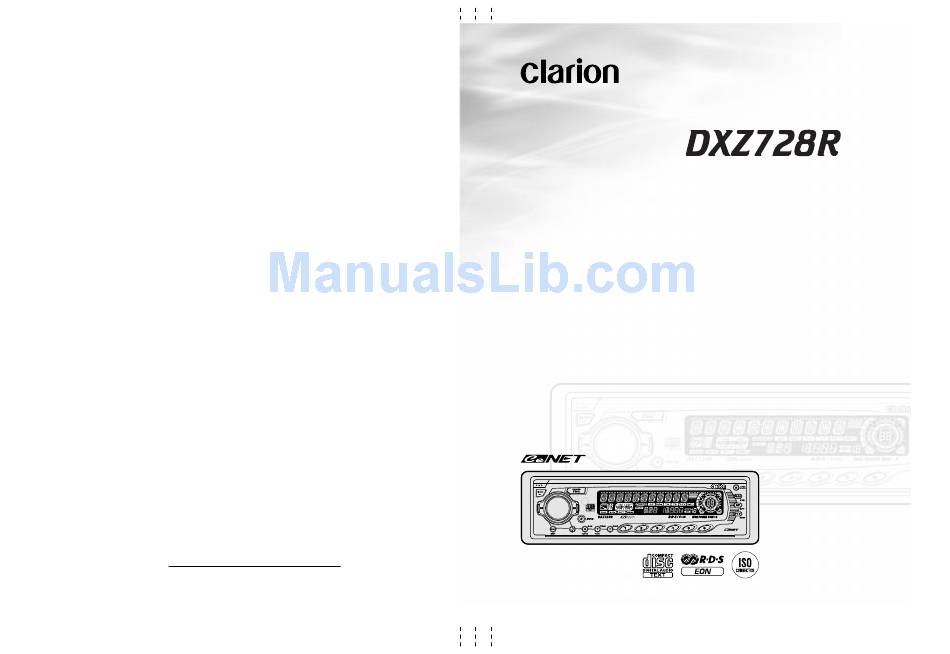

  • Page 1 COMBINAÇÃO DE RÁDIO RDS-EON/FM/MW/LW E LEITOR DE CDs COM CONTROLO PARA PERMUTADOR DE DVDs/ MDs/CDs/DSP/EQ/DAB/TV Clarion Co., Ltd. All Rights Reserved. Copyright © 2001: Clarion Co., Ltd. PE-2468E Printed in China / Imprimé en Chine / Gedruckt in China / Stampato in Cina 2001/12 (D·C)
  • Page 2 Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.
  • Page 3: Table Of Contents

    In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. Glöm inte att vika ut och läsa nästa sida. / Não deixe de abrir e ler a próxima página. CONSOLE does not close. The screen will recover when it returns to normal temperature. DXZ728R DXZ728R DXZ728R 280-7725-00 280-7725-00...
  • Page 4: Controls

    Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Press [T] button to return to the previous mode. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. DXZ728R DXZ728R DXZ728R...
  • Page 5: Dcp

    Be careful not to get with fingernails, screwdrivers, etc. your fingers caught. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ728R...
  • Page 6: Remote Control

    Take note of the following points: Rear cover • When replacing batteries, replace both batteries with new ones. • Do not short-circuit, disassemble or heat batteries. Rear side • Do not dispose of batteries into fire or flames. • Dispose of spent batteries properly. DXZ728R...
  • Page 7: Functions Of Remote Control Unit Buttons

    Random play. Switches between TV When pressed and on and off. and VTR. held for 1 second or longer: Disc random play. ∗ Some of the corresponding buttons on the main unit and remote control unit have different functions. DXZ728R...
  • Page 8: Operations

    Radio mode DAB mode CD mode DVD DECK mode CD changer mode MD changer mode DVD changer mode TV mode AUX mode Radio mode... ∗ External equipment not connected with CeNET is not displayed. DXZ728R...
  • Page 9 (DPH913) is used, the bass and treble tone ad- justments cannot be made. To adjust the tone, re- fer to the section “DSP Operations”. Adjusting the bass The bass gain, bass F (center frequency) and bass Q can be adjusted as follows. DXZ728R...
  • Page 10: Adjusting The Treble

    [A] button several times until the function mode is reached. Adjusting the Beat EQ 1. Press the [BEQ] button and select the Beat EQ mode (1 to 3) to adjust. 2. Press the [A] button and select “BASS BOOST or IMPACT or EXCITE”. DXZ728R...
  • Page 11: Radio Operations

    If you press and hold the [a] or [d] button for 1 second or longer, local seek tuning is carried out. Broadcast stations with good reception sen- sitivity are selected. ∗ When local seeking starts, “LO SEEK” appears in the display. DXZ728R...
  • Page 12: Rds Operations

    RDS and DAB, and this function is ON, the unit switches to receiving the broadcast with the better reception automatically. ∗ This function only operates when the DAH913 or DAH9500z DAB unit, sold separately, is connected. ∗ This factory default setting is “ON”. DXZ728R...
  • Page 13 2. Press any one of the [DIRECT] buttons to call out the regional station. 3. If the reception condition of the called out station is bad, press the [DIRECT] button of the same number. The unit receives a local station on the same network. DXZ728R...
  • Page 14: Selecting Pty

    1. When you press the [PTY] button, the PTY select mode is turned on. FOLK M Folk music 2. Select PTY. DOCUMENT Documentaries 3. Press the [a] or [d] button. If you press the [d] button, the unit seeks a PTY broad- DXZ728R...
  • Page 15: Cd Operations

    (0 to 33). “PAUSE” appears in the display. ∗ When the TA, ALARM or PTY interrupt ends, the volume returns to the level it had before the inter- 2. To resume CD play, press the [ ] button rupt. again. DXZ728R...
  • Page 16 “RDM” goes off and normal play beginning of the previous track. resumes. Fast-forward/fast-backward Fast-forward Press and hold the [d] button for 1 second or longer. Fast-backward Press and hold the [a] button for 1 second or longer. DXZ728R...
  • Page 17: Operations Common To Each Mode

    4. Press the [T] button to return to the previous 2. Press the [D] button and display the main. mode. 3. Press the [T] button. “TTL” appears in the dis- play and the display switches to the title input display. 4. Press the [BND] button. DXZ728R...
  • Page 18 ∗ To output the telephone calls, set the cellular phone interrupt to ON. 1. Press and hold the [T] button for 1 second or longer to switch to the adjustment selection display. 2. Press the [a] or [d] button to select “TEL- SP”. DXZ728R...
  • Page 19 ∗ When listening to your calls on your car speakers, you can adjust the volume by turn- ing the [ROTARY] knob. MUTE: The sound from this unit is muted during telephone calls. 4. Press the [T] button to return to the previous mode. DXZ728R...
  • Page 20: Operations Of Accessories

    “ D NO-TITLE” appears in sponding [DIRECT] button (1 to 6) to select the the display. desired disc. ∗ If an MD is not loaded in a slot of MD changer, pressing the [DIRECT] button corresponding to its disc number is invalid. DXZ728R...
  • Page 21 “DISC” and “RPT” light in the dis- play and disc repeat play starts. 2. To cancel disc repeat play, press and hold the [AF] button again. “DISC” and “RPT” go off from the display and normal play resumes on the current track. DXZ728R...
  • Page 22: Tv Operations

    2. Press the [a] or [d] button to automatically seek a station. Press the [d] button to auto- matically tune up the frequency band to the next available TV station; press the [a] but- ton to automatically tune down. DXZ728R...
  • Page 23 Sets the diver setting to OFF. 1. Press the [BND] button and select the de- 4. Press the [T] button to return to the previous sired TV band (TV1 or TV2). mode. DXZ728R...
  • Page 24: Dsp Operations

    ∗ For details on each adjustment item, refer to The title input mode is cancelled. the owner’s manual supplied with the DPH913. 5. Turn the [ROTARY] knob clockwise or coun- terclockwise to make the adjustment. DXZ728R...
  • Page 25 3. Turn the [ROTARY] knob clockwise or ∗ For details on each adjustment item, refer to counterclockwise to adjust the balance and the owner’s manual supplied with the the fader. DPH913. 4. Press the [ ] button to return to the DSF mode. DXZ728R...
  • Page 26 2 seconds or longer to store the edited sional mode. contents. ∗ You can give a title to the user memory. For the inputting method of titles, refer to the sub- section “Entering titles” in section “Opera- tions common to each mode”. DXZ728R...
  • Page 27: Digital Radio/Dab Operations

    2 seconds or longer to store the edited contents. ∗ You can give a title to the user memory. For the inputting method of titles, refer to the sub- section “Entering titles” in section “Opera- tions common to each mode”. DXZ728R...
  • Page 28 3. To stop programme scan when a desired When the same programme is broadcast by programme is tuned in. both RDS and DAB, and this function is ON, the Press the [PS/AS] button. main unit switches to receiving the broadcast with the better reception automatically. DXZ728R...
  • Page 29 Selecting PTY This is a function for selecting INFORMATION ON or OFF in the Information interrupt mode. PTY seek You can set ON up to 6 information items. PTY preset memory You can select any of the 6 items below: DXZ728R...
  • Page 30: Dvd Operations

    [ROTARY] knob clockwise or counter- clockwise to set the volume to a desired level (0 to 33). ∗ When the TA, INFO, ALARM or PTY interrupt ends, the volume returns to the level it had before the in- terrupt. DXZ728R...
  • Page 31: In Case Of Difficulty

    Poor sound quality The equalizer levels are too If the equalizer levels are too high, the sound high. may distort. Lower the equalizer levels. DXZ728R...
  • Page 32: Error Displays

    Load a pre-recorded MD in the MD loaded in the MD changer. changer. If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. DXZ728R...
  • Page 33: Specifications

    Télécommande: 30 g (avec la pile) Distorsion: 0,01% Dimensions: Appareil principal: 178 (L) 50 (H) 155 (P) mm Télécommande: 44 (L) 110 (H) 27 (P) mm Remarque: • La conception et les caractéristiques techniques sont sujettes à modification sans préavis pour des raisons d’amélioration. DXZ728R...
