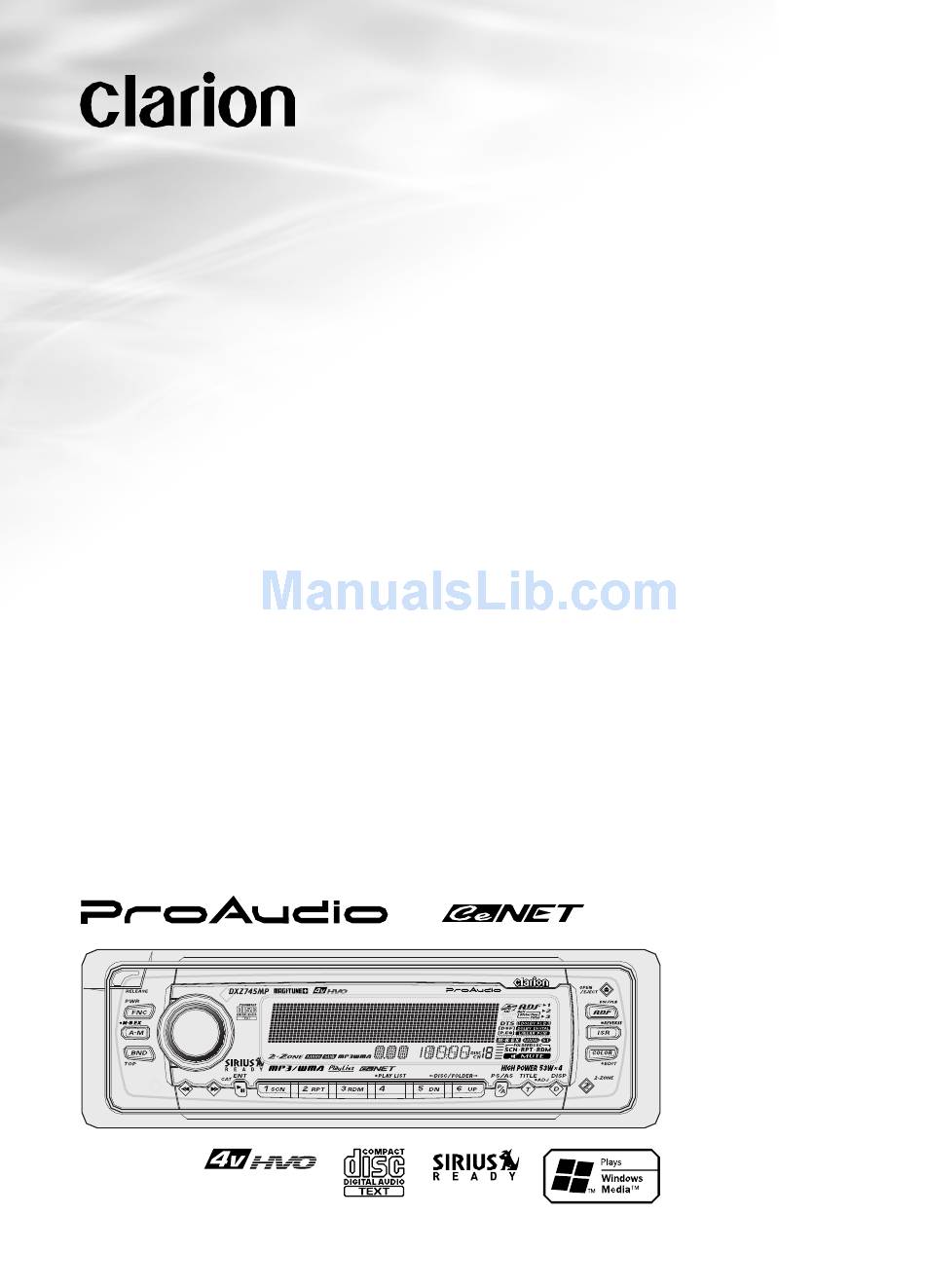

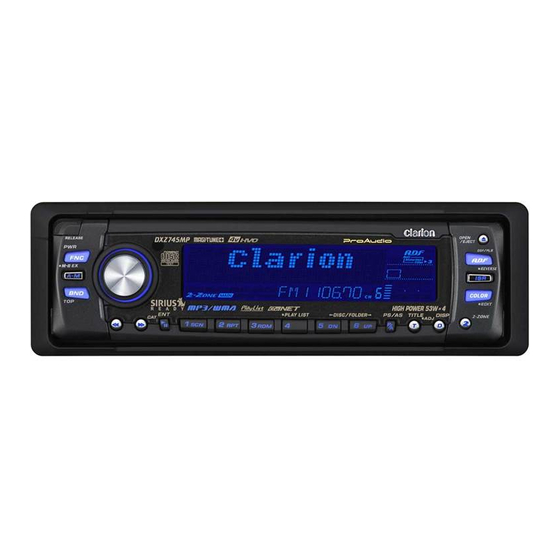

  • Page 1 Owner’s manual Mode d’emploi Manual de instrucciones DXZ745MP AM / FM CD / MP3 / WMA PLAYER • RADIO AM/FM-LECTEUR CD/MP3/WMA • REPRODUCTOR DE AM/FM CD/MP3/WMA...

  • Page 2: Table Of Contents

    • 24 Bit Digital to Analogue Converter for Audiophile • 4 V/ 6ch Gold Plated RCA Output and 2ch RCA AUX Input with 3 Level Adjustments • Retractable Volume Control for Easy Operation • Sirius Control • 5.1ch Decoder Control DXZ745MP...

  • Page 3: Precautions

    TURER FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIP- MENT. INFORMATION FOR USERS:. CHANGES OR MODIFICATIONS TO THIS PROD- UCT NOT APPROVED BY THE MANUFAC- TURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL. Bottom View of Source Unit DXZ745MP 280-8000-00...

  • Page 4: Motorized Face

    • After using special compact disc cleaner, let the compact disc dry off well before playing it. Veuillez déplier et vous référer à la page suivante. Cerciórese de desplegar y de leer la página siguiente. DXZ745MP...

  • Page 5: Controls

    Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter. Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre. Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas. DXZ745MP Unidad fuente [ DN ], [ UP ]...

  • Page 6: Nomenclature

    [DIRECT] buttons • Store a station into memory or recall it di- rectly while in the radio mode. DXZ745MP [PLAY LIST] button • Press and hold for 1 second or longer to turn on or off the play list mode. (MP3/WMA disc only) [RDM] button •...

  • Page 7: Major Button Operations When External Equipment Is Connected To This Unit

    ● When the Sirius Satellite Radio is connected ∗ For details, refer to the Owner’s Manual provided with the Sirius Satellite Radio. [FNC] button • Press the button to switch the operation mode among the SIRIUS mode, etc.

  • Page 8: Display Items

    Major Button Operations When External Equipment is Connected to This Unit What is Sirius Satellite Radio? Sirius is radio the way it was meant to be: Up to 100 new channels of digital quality program- ming delivered to listeners coast to coast via satellite.

  • Page 9: Dcp

    • The connector connecting the unit and the DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ745MP...

  • Page 10: Remote Control

    • Do not short-circuit, disassemble or heat batteries. • Do not dispose of batteries into fire or flames. • Dispose of spent batteries properly. DXZ745MP Receiver for remote control unit Operating range: 30˚ in all directions Signal transmitter...

  • Page 11: Functions Of Remote Control Unit Buttons

    Disc random play. folder random play while in the MP3/WMA mode. Switches reception band. Moves preset channels up and down. No function. Preset scan. When pressed and held for 2 seconds: Auto store. No function. Switches between TV and VTR. DXZ745MP...

  • Page 12: Operations

    ➜ TV mode ➜ AUX mode ➜ Radio mode... ∗ External equipment not connected with CeNET is not displayed. DXZ745MP Note:Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold). Adjusting the volume 1.

  • Page 13: Adjusting The Treble

    –6 to 8 (The factory default setting is “0”) factory default setting is “50”) 1/1.25/1.5/2 (The factory default setting is “1”) ”. Î ” ➜ “TREB GAIN FREQ Å Î Å GAIN ”... Å Î setting is “0”) default setting is “12K”) DXZ745MP ” Î...

  • Page 14: Radio Operations

    2. Press and hold the [A-M] button for 1 second or longer to turn off the MAGNA BASS EX- TEND effect. “M-B EX” goes off from the dis- play. DXZ745MP Radio Operations FM reception For enhanced FM performance the tuner includes signal actuated stereo control, Enhanced Multi AGC, Impulse noise reduction curcuits and Multipath noise reduction circuits.

  • Page 15: Recalling A Preset Station

    ●Recalling a station with ISR In any mode, press the [ISR] button to turn on the radio function and tune the selected radio station. “ISR” appears in the display. Press the [ISR] button again to return to the previous mode. DXZ745MP...

  • Page 16: Cd/Mp3/Wma Operations

    If you add a file extension other than specified or forget to add the file extension , the file cannot be played. DXZ745MP 2. Files without MP3/WMA data will not play. The indication “– –:– –” appears in the play time display if you attempt to play files with- out MP3/WMA data.
  • Page 17 CD in the mechanism or the unit may require service. • Discs not bearing the CD-ROMs cannot be played by this unit. • Some CDs recorded in CD-R/CD-RW mode may not be usable. CD/MP3/WMA Operations (SIRIUS) CD/MP3/WMA (CD changer) CAUTION mark and DXZ745MP...

  • Page 18: Selecting A Track

    • In the case of album Tags for WMA, the informa- tion written into the extension header is displayed. • Only ASCII characters can be displayed in Tags. DXZ745MP Selecting a track ● Track-up 1. Press the [d] button to move ahead to the beginning of the next track.

  • Page 19: Repeat Play

    2. To cancel random play, press the [RDM] but- ton again. The play status indication such as “RDM” dis- appears from the display and normal play re- sumes from the track currently being played. DXZ745MP...
  • Page 20 The file format must be M3U. 3. Again, write this play list to the CD-R/RW, etc. DXZ745MP Notes: • When writing to a CD-R/RW, etc., be sure to use alphanumeric/ASCII characters. • Up to 5 layers can be recognized as a list. For written play lists, latest 5 lists are recognized in the order in which they are written.

  • Page 21: Different Pieces Of Music Heard By Plural Listeners (2-Zone Function)

    Press and hold the [ISR] button for 1 second or longer to counterchange the sources of the MAIN and SUB zones. “REVERSE” is displayed for 2 seconds on the display. SUB zone Radio playback Radio playback External equipment (CD changer) Radio playback DXZ745MP...

  • Page 22: Operations Common To Each Mode

    Capital letters ➜ Small letters ➜ Numbers/ Symbols ➜ Umlaut ➜ Capital letters... DXZ745MP 7. Turn the [ROTARY] knob clockwise or coun- terclockwise to select the desired character. 8. Repeat step 5 to 7 to enter up to 30 charac- ters for message.

  • Page 23: Adjusting The Display Contrast

    Î Î Î 3. Turn the [ROTARY] knob clockwise or coun- terclockwise and select “ON” or “OFF”. ● ON: Use with connected AMP. ● OFF: Use with inside AMP. 4. Press the [T] button to return to the previous mode. DXZ745MP...

  • Page 24: Setting The Clock

    ] button to store the time into memory. 7. Press the [T] button to return to the previous mode. DXZ745MP Note: • You cannot set the clock when it is displayed with only the ignition on. If you drain or remove the car’s battery or take out this unit, the clock is reset.

  • Page 25: Entering Titles

    50 titles 4. Press the [BND] button. 20 titles 5. Press and hold the [ 30 titles ond or longer to clear the title and cancel title input mode. 100 titles 100 titles 50 titles ] button for 2 sec- DXZ745MP...

  • Page 26: Operations Of Accessories

    1. Press the [D] button to display the title. 2. Each time you press and hold the [D] button for 1 second or longer, the title display changes in the following order: DXZ745MP User title(disc) (None) Artist name CD-text title (track)
  • Page 27 “DISC” and “RDM” light in the display and disc random play starts. 2. To cancel disc random play, press the [RDM] button again. “DISC” and “RDM” go off from the display and normal play resumes from the current track. DXZ745MP...

  • Page 28: Tv Operations

    Press the [d] button to auto- matically tune up the frequency band to the next available TV station; press the [a] but- ton to automatically tune down. DXZ745MP Manual tuning There are 2 ways available: Quick tuning and step tuning.
  • Page 29 3. Turn the [ROTARY] knob clockwise to set to “ON” or counterclockwise to set to “OFF”. ● ON: Sets reception emphasizing the visual. ● OFF: Sets the diver setting to OFF. 4. Press the [T] button to return to the previous mode. TV Operations DXZ745MP...

  • Page 30: Connect With 5.1Ch Surround Decorder (Dvh920/Dvh940)

    ∗ Connect properly in accordance withcolor of connectors Set the 5.1ch surround decoder’s [STAND-ALONE / SLAVE] switch tothe [STAND-ALONE] position. SLAVE DXZ745MP TV MONITOR ∗ Refer to the OWNER’S MANUAL of DVH920. Connect to 4ch power amplifier Connect to powered...
  • Page 31 ∗ Refer to the OWNER’S MANUAL of DVH940. Connect to 4ch power amplifier Connect to powered center speaker Connect to powered sub-woofer RCA pin cable (furnished with DVH940) ANALOG INPUT STAND ALONE BB TV Tuner (TTX7501z) 1-DIN Center Unit (DXZ745MP) DXZ745MP...

  • Page 32: In Case Of Difficulty

    Noise is generated or noise is mixed with sound. DXZ745MP Cause Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase. Consult your store of purchase. 1. Turn the unit off.
  • Page 33 Measure Let dry for about 1 hour with the power on. Use ISO9660 level 1, 2 or JOLIET or Romeo file system. Use alphanumeric/ASCII characters for MP3/WMA file name. Use “.M3U” for the file extension of a play list. DXZ745MP...

  • Page 34: Error Displays

    If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. DXZ745MP Cause This is a failure of CD deck’s mechanism and consult your store of purchase.

  • Page 35: Specifications

    7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth) [178 (W) ✕ 50 (H) ✕ 155 (D) mm] Dimensions / Remote control unit: 1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8" (Depth) [44 (W) ✕ 110 (H) ✕ 27 (D) mm] DXZ745MP...
  • Page 36 DXZ745MP...
