Negative Switching Locks
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock /
unlock switch.
Verification: These wires will register ground when the Lock and Unlock
switches are activated.

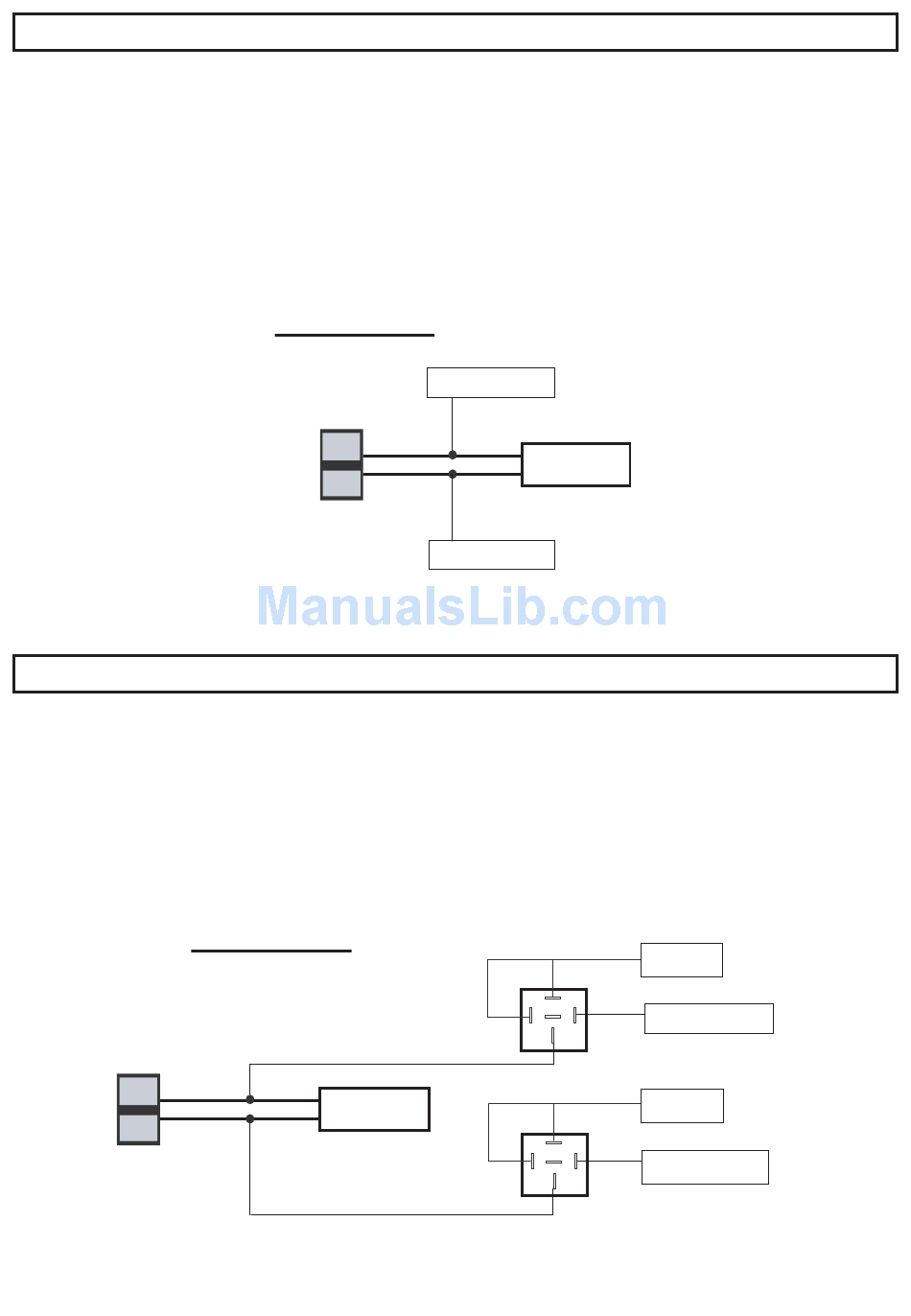

Connect the GREEN and BLUE wires shown in the diagram below.
Positive Switching Locks
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock /
unlock switch.
Verification: These wires will register positive voltage when the Lock and
Unlock switches are activated.
Connect the GREEN and BLUE wires shown in the diagram below.
Lock
Unlock
2010 Audiovox Electronics Corporation. All rights reserved.
Negative Locks:
Lock
Unlock
Positive Locks:
Vehicle Door Lock
Control Relays
GREEN (-) Lock Output
Vehicle Door Lock
Control Relays
BLUE (-) Unlock Output
87
87a
86
85
30
87
87a
86
85
30
Fused +12 Volt
Battery Souce
GREEN (-) Lock Output
Fused +12 Volt
Battery Souce
BLUE (-) Unlock Output
