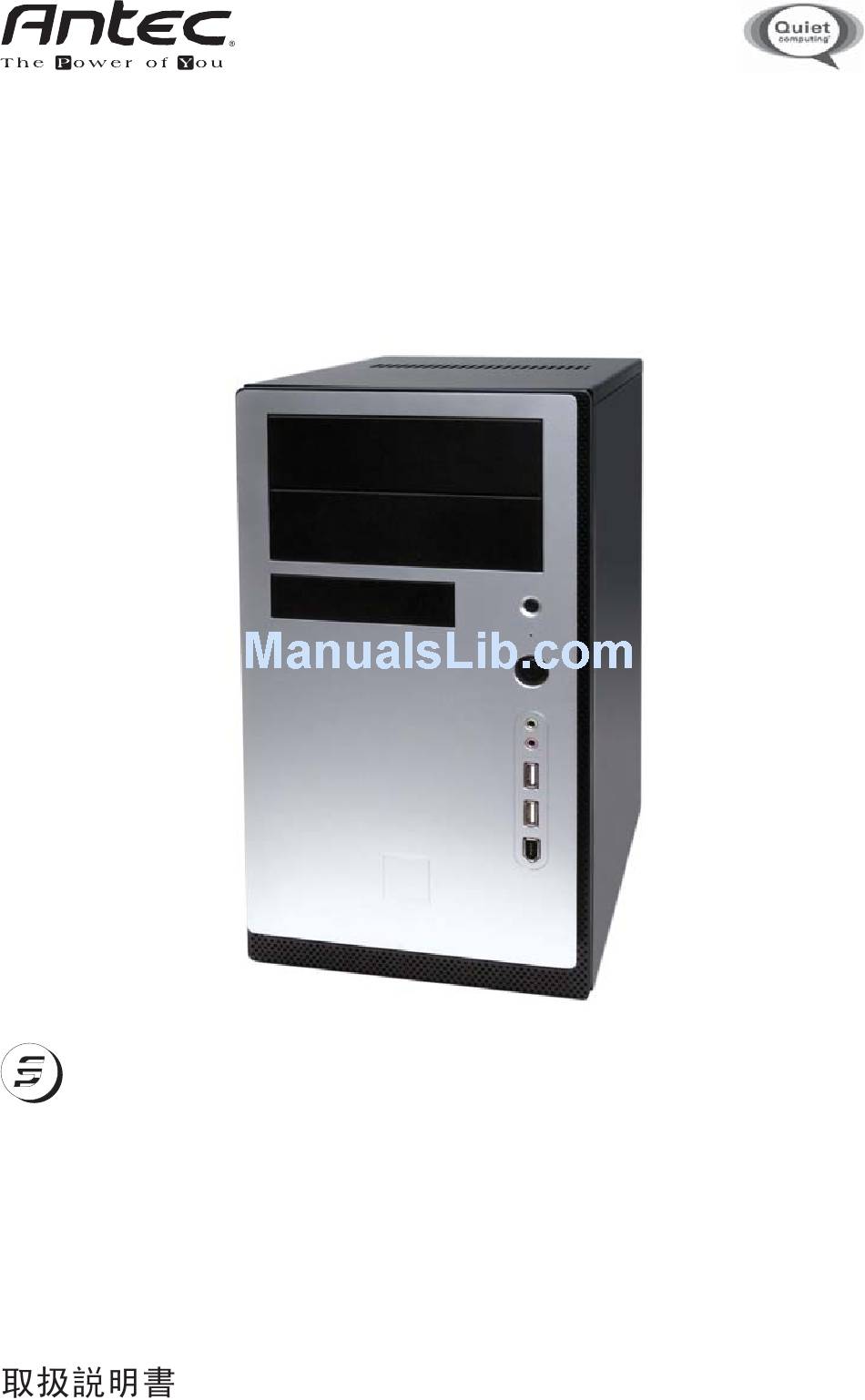

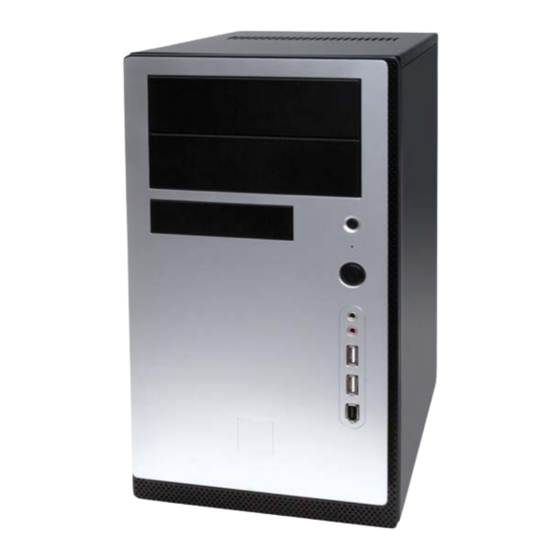

- Page 1 New Solution Series NSK 3300 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 Quiet Micro ATX Case The Power Supply NSK 3300 comes with a 300 Watt universal input, active PFC, single 80mm fan cooled power supply which meets the SFX version 3.0 specification. It is a high efficiency power supply that delivers cleaner and environmentally friendlier power to the system.
- Page 3 The Dual Chamber Structure The case is divided into two chambers — the motherboard chamber and the power supply chamber to separate heat and noise from each section for maximum quiet and cool operation. Set Up 1. Take the case out of the box. Remove the biodegradable carton and plastic bag. 2.
- Page 4 If it does not match this Intel standard, please call Antec customer support at (800) 22ANTEC (North America) or at +31 (0) 10 462-2060 (Europe) to buy a USB adapter. This adapter will allow you to connect the front USB to the motherboard on a pin-by-pin basis.
- Page 5 Pin Assignment for Front Panel IEEE 1394 Connector Signal Names Signal Names TPA+ TPA– Ground Ground TPB+ TPB– +12V (Fused) +12V (Fused) Key (No Pin) Ground Connecting the Audio Ports There is an Intel standard 10-pin connector (with 7 individual wires with connectors) coming out from the front panel speaker and microphone connection.
- Page 6 Cooling System The Rear Exhaust TriCool™ fan: The NSK 3300 comes with one 120mm TriCool™ fan preinstalled. This fan has a three-speed switch that lets you choose between quiet, performance, or maximum cooling. (See specifications below.) The fan is installed so that the air is blowing out of the case.
- Page 7 This case comes with two optional 92mm fan mounts in the front of the case. The front fan should be installed so that the air is blowing into the case from the front. We recommend using Antec TriCool™ 92mm fans and setting the speed to LOW.
-
Page 8: Customer Support
Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2006 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Version 1.0.1 03/02/2006...
