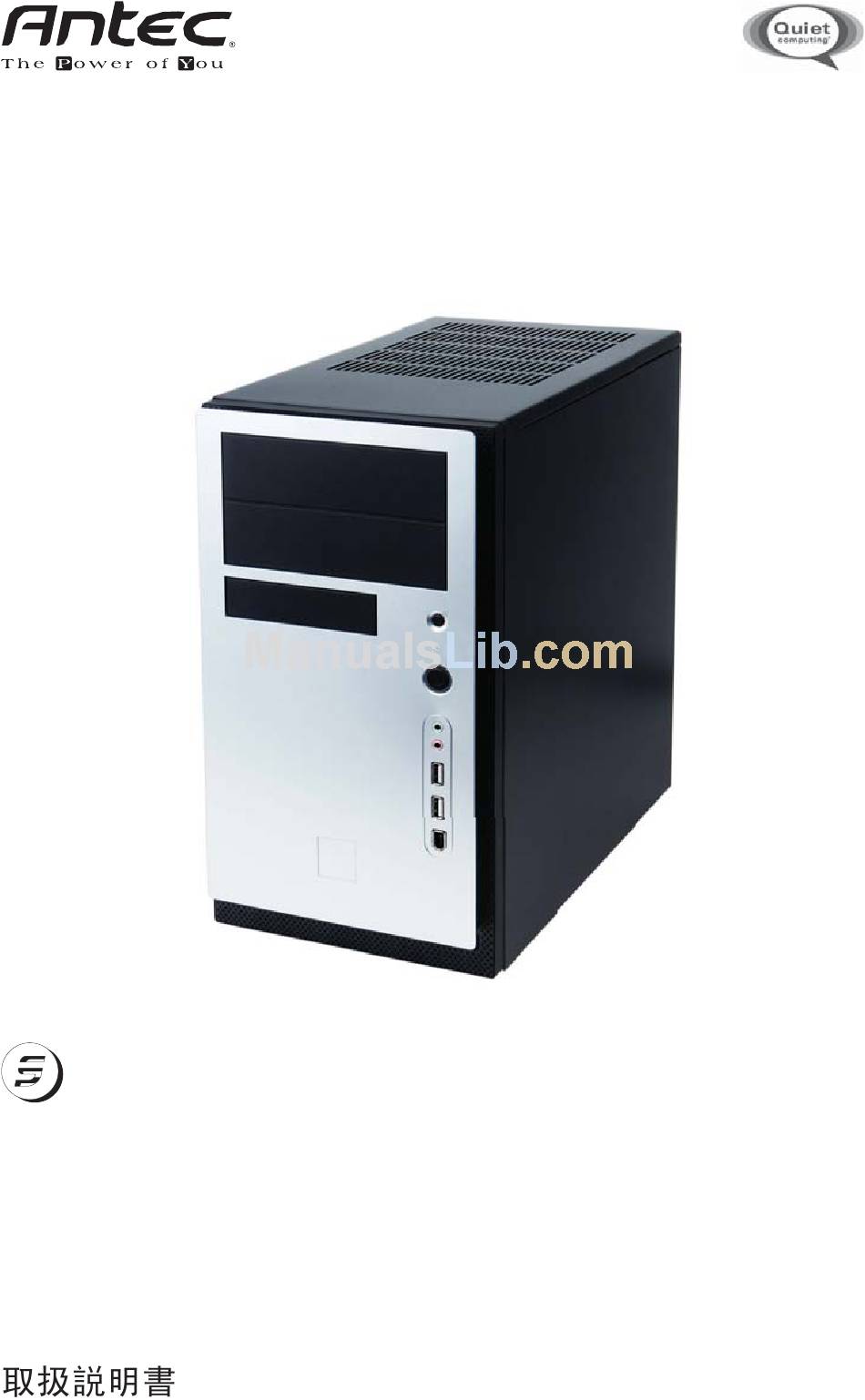

  • Page 1 New Solution Series NSK3480 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
  • Page 2 Disclaimer This manual is intended only as a guide for Antec’s Computer Enclosures. For more comprehensive instructions on installing the motherboard and peripherals, please refer to the user’s manuals that come with those components.
  • Page 3 Set Up Take the case out of the box. Remove the foam packing material and plastic bag. Place the case upright with the power supply fan at the back facing you on a stable flat surface. Remove the two thumbscrews fastening to the top cover of the case. Set these screws aside and keep them separate from the other screws.
  • Page 4 FireWire port to an IEEE 1394 add-on card that comes with an external-type IEEE 1394 connector, you will need a FireWire Internal Adapter. To order one, please visit Antec’s web store at http://www.antec.com/StoreFront.bok and search for part number 30031. This adapter will allow you to connect the front IEEE 1394 port to the external-type connector.
  • Page 5 Pin Assignment for Front Panel IEEE 1394 Connector Connecting the Audio Ports (AC’97 and HDA) There is an Intel standard 10-pin AC’97 connector and an Intel 10-pin HDA (High Definition Audio) connector; you can connect either the AC’97 or the HDA connector to your motherboard depending on the spec of the motherboard.
  • Page 6 Fan-Only connector found on some of Antec’s power supplies. A fan-control device regulates the fan speed by varying the voltage to it. The voltage may start as low as 4.5V to 5V.
  • Page 7 We recommend using Antec TriCool 92 mm fans and setting the speed to LOW. There are four special fan screws included with the case. Use these to fasten the fan in place from the inside.
  • Page 8: Customer Support

    1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2007 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
