Antec UCC13# 0761345-15734-6 AP Specification Sheet

Media Components
The ideal media center case
Combining silence, convenience, and style, the Fusion Remote is an excellent enclosure for a home
theater PC. With its special triple chamber design and dual 120mm fans, the Fusion Remote runs
quiet and cool. The Fusion Remote also boasts an included remote control and media management
software.

Special Features:

• Included: petite remote control and iMEDIAN HD by
iMON software for media management and playback
• Aluminum plate front bezel with Liquid Crystal Display
(LCD) and Volume Control to work with media
center applications
• Windows MCE & VISTA™ compatible IR receiver
• Triple chamber structure to separate heat and noise of
power supply, hard drives and motherboard for cooler
and quieter operation
• Removable HDD brackets with extra soft silicone
grommets to reduce vibrational noise
• Advanced cooling system:
- 2 x sidemounted 120mm TriCool™ 3-speed fans
• Low profile desktop height to fit in any environment
®
www.80PLUS.org
More than 80% efficient
at 20%, 50% & 100% load
www.antec.com •
1-800-22ANTEC (US) / +31 (0) 10 462-2060 (EU)

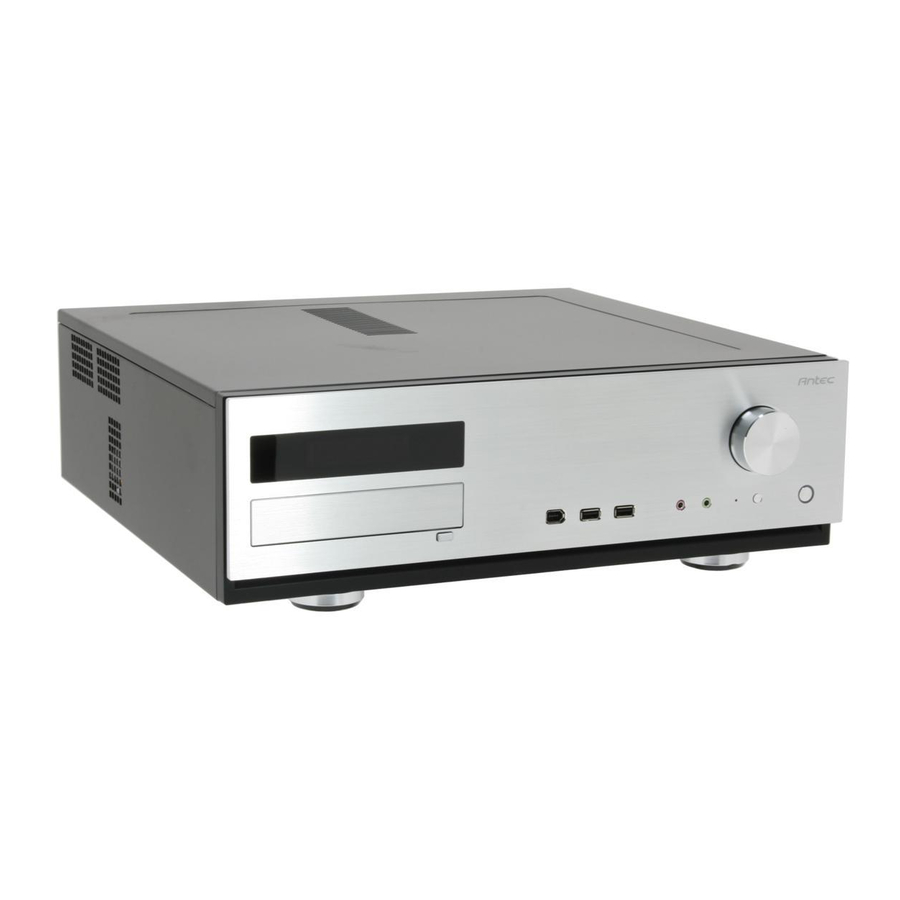

Fusion Remote
•
•
•
•
•
•
•
•
E
UCC13# 0761345-15733-9 NA
UCC13# 0761345-08760-5 EU
UCC13# 0761345-15734-6 AP
3 Drive Bays
- Front Accessible: 1 x 5.25"
- Internal 2 x 3.5"
4 Expansion Slots
Motherboard: Micro ATX form factor (9.6" x 9.6")
Front-mounted ports for easy multimedia connections
- 2 x USB 2.0
- 1 x IEEE 1394 (FireWire®, i.Link®)
- Audio In and Out
Durable 0.8mm cold rolled steel construction
Dimensions: 5.5" (H) x 17.5" (W) x 16.3" (D)
Net Weight: 18.7lbs / 8.5kg
Gross Weight: 21.6lbs / 9.8kg
Media Components
