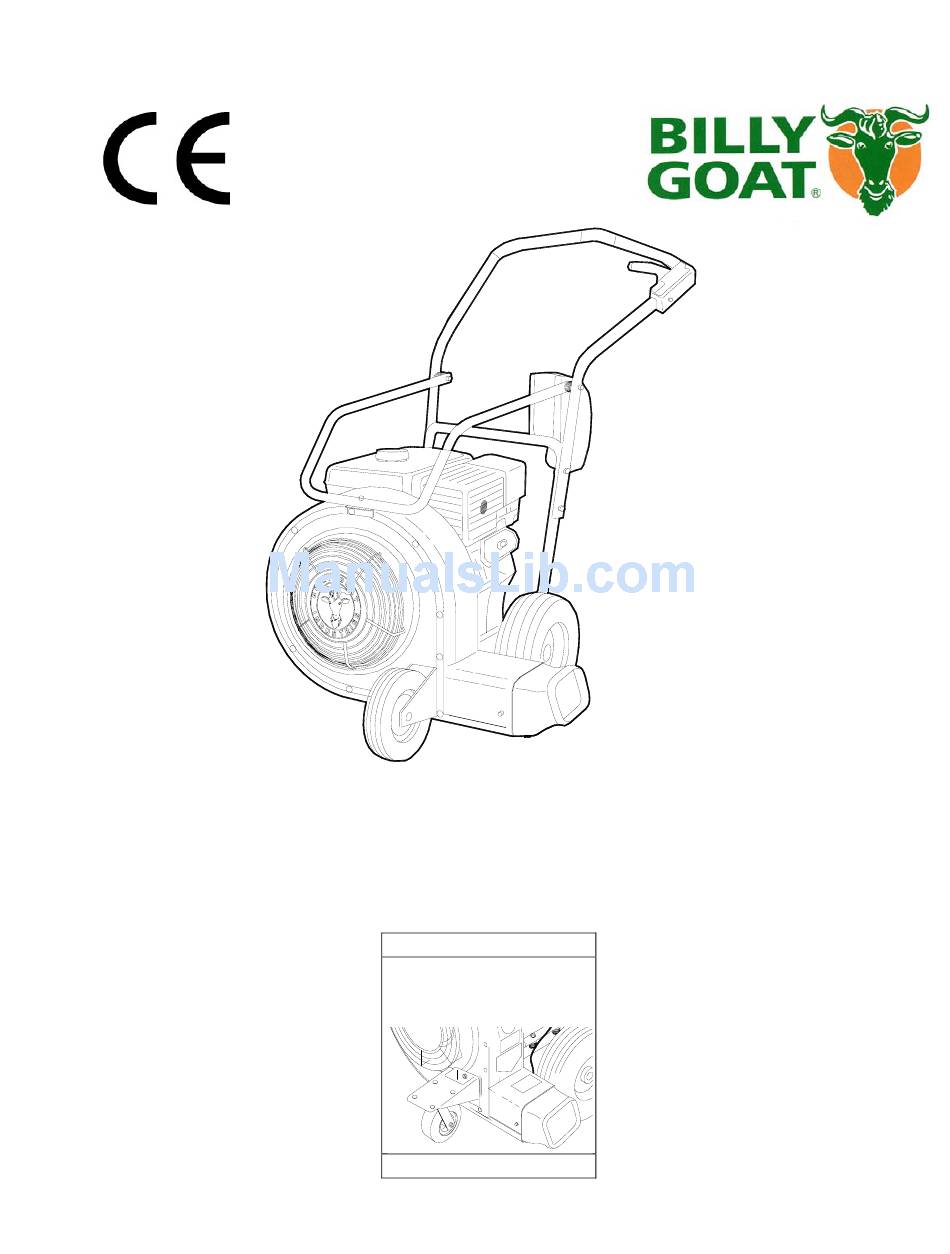

QB554HC Owner's Manual
Patent 6253416

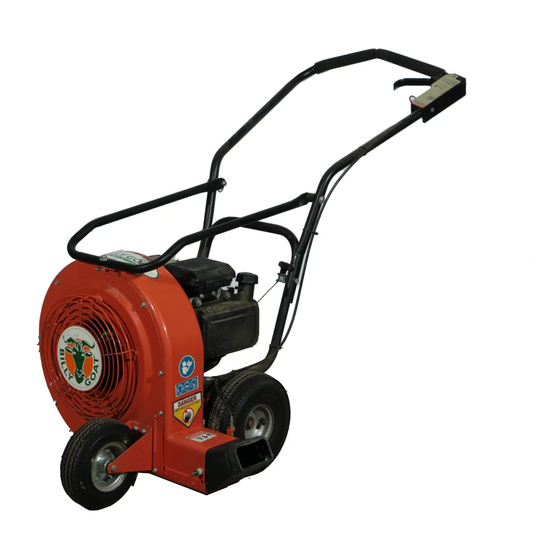

BILLY GOAT QB554HC BLOWER
Owner's Manual
Accessories
CASTER KIT
To improve
maneuverability on
hard paved surfaces.
P/N 430291
Part No 430316
Form No F072407A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QB554HC and is the answer not in the manual?

Questions and answers

Related Manuals for Billy Goat QB554HC

Summary of Contents for Billy Goat QB554HC

  • Page 1 QB554HC Owner’s Manual Patent 6253416 BILLY GOAT QB554HC BLOWER Owner's Manual Accessories CASTER KIT To improve maneuverability on hard paved surfaces. P/N 430291 Part No 430316 Form No F072407A...

  • Page 2: Table Of Contents

    QB554HC Owner’s Manual ABOUT THIS MANUAL ® THANK YOU for purchasing a BILLY GOAT QB Blower. Your new machine has been carefully designed and manufactured to provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will help to maintain your QB Blower in top running order. Read this manual carefully before assembling, operating, or servicing your equipment.

  • Page 3: Serial Plate Data And Specifications

    QB554HC Owner’s Manual SERIAL PLATE DATA Record the model number, serial number, date of purchase, and where purchased. Purchase Date: Purchased From: Specifications QB554HC Engine: HP 5.0 HP (3.73 Kw) Engine: Model GC160AQHA Engine: Type HONDA OHC Engine: Fuel Capacity 2.1 qt.

  • Page 4: General Safety

    This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation, or servicing this equipment. ® This symbol indicates important information that will prevent damage to your BILLY GOAT QB Blower. This symbol indicates the engine oil level should be checked before operating this equipment.
  • Page 5 QB554HC Owner’s Manual DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended. DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes before refueling.

  • Page 6: Sound And Vibration

    QB554HC Owner’s Manual SOUND SOUND LEVEL 106 Db(a) at Operator Position Sound tests were conducted in accordance with 2000/14/EC, as well as ISO 11094, and were performed on 2-16- 2002 under the conditions listed below. Sound power level listed is the highest value for this model. Please refer to serial plate on the unit for the sound power level for your model.

  • Page 7: Instruction Labels

    QB554HC Owner’s Manual INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT QB Blower. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels.

  • Page 8: Packing Checklist

    QB554HC Owner’s Manual PACKING CHECKLIST These items should be included in your carton. If any of these parts are missing, contact your dealer. ® Your BILLY GOAT QB Blower was shipped in one carton, completely assembled except for the Upper Handle Assembly, Front Exhaust and Front wheel and bracket.

  • Page 9: Assembly

    QB554HC Owner’s Manual ASSEMBLY 1.Follow the steps in figures A and B, then securely tighten all hardware shown. 2.Connect spark plug wire. Figure A Figure B 1. The hardware for attaching the upper handle to the lower is 4. Remove four lock nuts from the front plate and use them to attach the preinstalled in the proper location in the lower handle.

  • Page 10: Operation

    BLOWING OPERATION Your Billy Goat QB blower is equipped with an exhaust director to allow the operator to direct the air stream up or down as required to assist in moving debris. This feature is extremely useful when debris has piled up to the point that it cannot be blown any farther.

  • Page 11: Operation

    QB554HC Owner’s Manual ADJUSTING GUST EXHAUST Releasing the lever allows air to be directed upward during use to avoid blowing debris into cars or other structures, or to avoid blowing landscaped areas that would be damaged by the high-speed air. This position also allows operator to maneuver the machine relative to the work area without disturbing the debris.

  • Page 12: Maintenance

    QB554HC Owner’s Manual MAINTENANCE ERIODIC AINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Daily or Every Every 25 Every 50 Every 5 Hours Hours Hours 100-150 Hours Inspect for worn or damaged parts. Check for excessive vibration...

  • Page 13: Troubleshooting And Warranty Procedure

    Warranty Claim. • The distributor service manager will sign off on the claim and submit it to BILLY GOAT for consideration. • The Technical Service Department at BILLY GOAT will study the claim and may request parts to be returned for examination.

  • Page 14: Illustrated Parts List

    QB554HC Owner’s Manual ILLUSTRATED PARTS LIST Part No 430316 Form No F072407A...

  • Page 15: Parts List

    QB554HC Owner’s Manual PARTS LIST Q B 5 5 4 H C I T E M D E S C R I P T I O N P A R T N O Q T Y E N G I N E - 5 . 0 H P H O N D A...

  • Page 16: Maintenance Record

    QB554HC Owner’s Manual MAINTENANCE RECORD Date Service Performed Part No 430316 Form No F072407A...
