Summary of Contents for Antec OVERTURE II

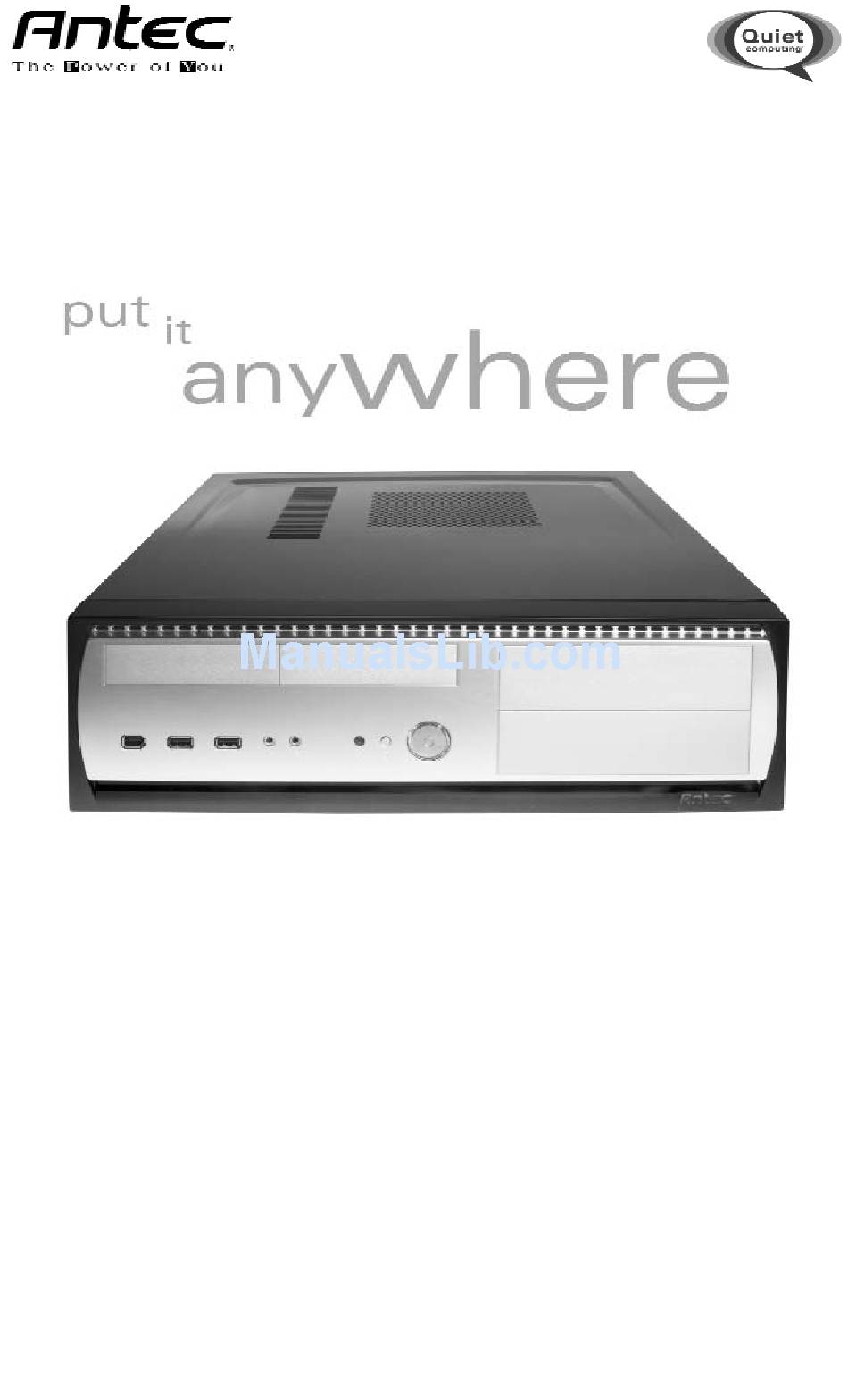

- Page 1 OVERTURE II User’s Manual...
-
Page 2: Installing The Motherboard
SETTING UP 1. Place the case on a flat and stable surface. Note: the Overture II includes a special version SmartPower 2.0 power supply that intakes cool air from the bottom of the case and exhausts it through the side vent of the case. - Page 3 Note: Please check your motherboard manual for your USB header pin layout and make sure it matches the attached table. If it does not match this Intel standard, please call Antec customer support at (800) 22ANTEC (North America) or at +31 (0) 10 462-2060 (Europe) to buy a USB adapter.
- Page 4 If you intend to connect the front FireWire port to an IEEE 1394 add-on card that comes with an external-type IEEE1394 connector, please call Antec customer service at (800) 22ANTEC (North America) or +31 (0) 10 462-2060 (Europe) to purchase adapter.
- Page 5 High if you choose to connect the fan to a fan control device or to the Fan-Only connector found on some of Antec's power supplies. A fan controlled device regulates the fan speed by varying the voltage to it. The voltage may start as low as 4.5 V to 5V. Connecting a TriCool set on Medium...
- Page 6 or Low to a fan-control device may result in the fan not being able to start. The already lowered voltage from the fan control device will be further reduced by the TriCool circuitry below 5V. Specifications: Size: 92 x 92 x 25.4 mm Rated Voltage: DC 12V Operating Voltage: 10.2V ~ 13.8V...
- Page 7 Overture II - Explorer Description Descriptions Top Panel with Ventilation Normal Expansion Slot Cover Ventilated PCI Slot Covers Internal 3.5" Drive Cage Power Connector 92mm TriCool Fan Universal I/O Panel 7530mm Blower Fan Mount Cage 7530mm Blower Fan Set External 5.25" Drive Cage Front Bezel 5.25"...
- Page 8 +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2005 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Version 1.0.1 3/04/2005...
