TIP
If the T.O.R.S. is activated, the warning light
and self-diagnosis warning indicator will flash,
and the two-digit code "84" will flash in the
meter display. If this occurs, have a Yamaha
dealer check the system as soon as possible.

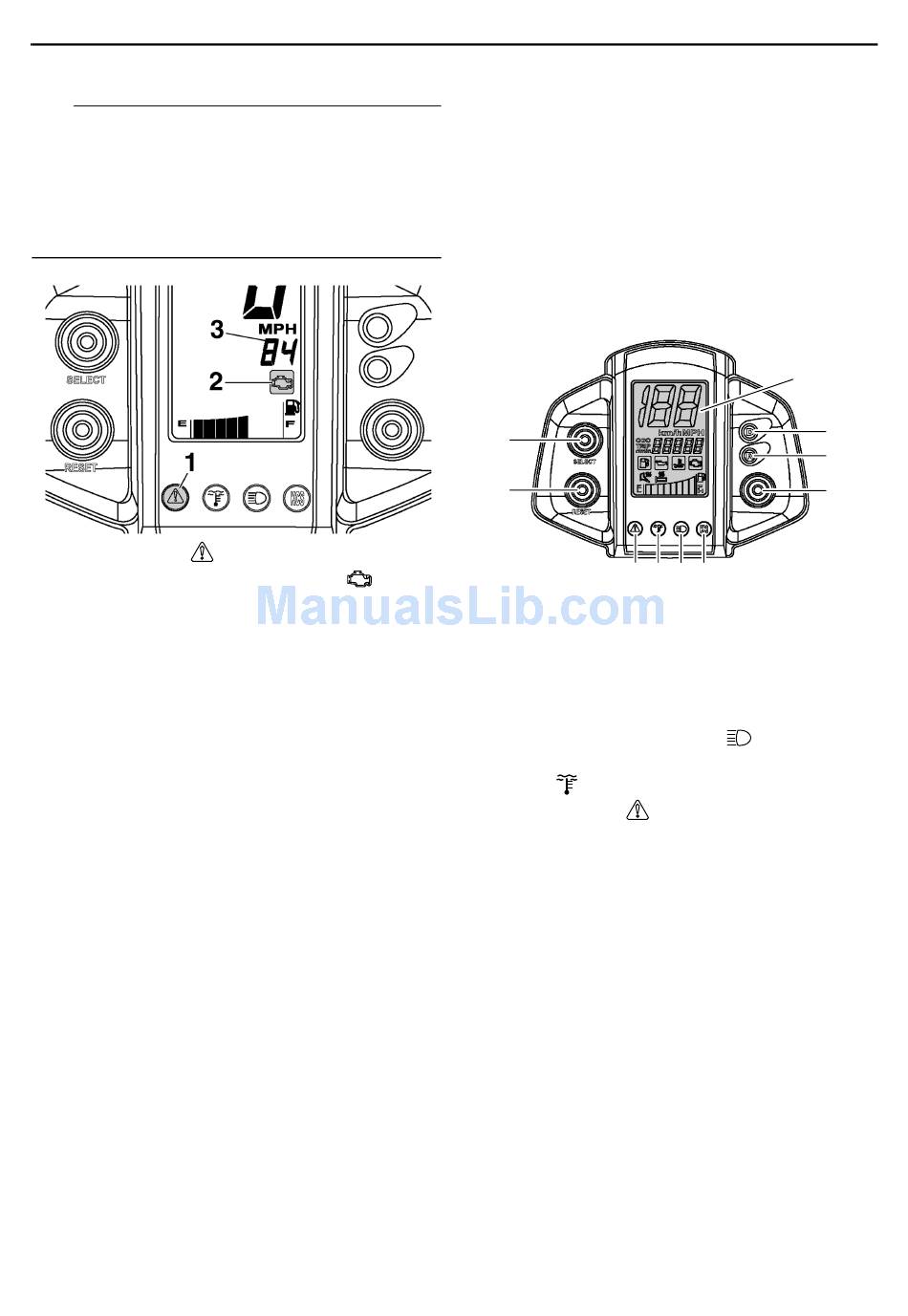

1. Warning light "
2. Self-diagnosis warning indicator "
3. Two-digit code "84"
ESU10394

Speedometer unit

The speedometer unit is equipped with the
following:
a digital speedometer
G
an odometer
G
a tripmeter (which shows the distance trav-
G
eled since it was last set to zero)
an engine speed meter (which shows the
G
engine speed; not for use while riding)
warning indicators (which show self-diag-
G
nosis, coolant temperature, fuel level, and
oil level warnings)
indicator lights (which show high beam, low
G
coolant temperature, transmission position,
and knock control system conditions)
a warning light (which shows warnings to-
G
gether with the warning indicators)
a fuel meter (which shows the fuel remain-
G
ing in the fuel tank)
a grip/thumb warmer level indicator (which
G
shows the grip warmer or the thumb warm-
er level)
"
"
Control functions
When the key is turned to the on position, the
warning light, the low coolant temperature in-
dicator light, the knock control system "KCS"
indicator light, the drive "D" and reverse "R" in-
dicator lights, and all segments of the meter
display come on and go off.
The grip warmer level is initially displayed for
5 seconds, then the display switches to the
fuel meter.
10
9
8
1. Meter display
2. Drive "D" indicator light
3. Reverse "R" indicator light
4. Drive select switch
5. Knock control system "KCS" indicator light
6. High beam indicator light "
7. Low coolant temperature indicator
light " "
8. Warning light "
9. "RESET" button
10. "SELECT" button
Odometer, tripmeter, and engine
speed meter modes
Pushing the "SELECT" button switches the
display between the odometer mode "ODO",
tripmeter mode "TRIP", and engine speed
meter mode "r/min" in the following order:
ODO → TRIP → r/min → ODO
To reset the tripmeter, push the "RESET" but-
ton for at least 1 second while the tripmeter is
displayed.
1
7 6 5
"
"
2
3
4
