General; To And From Process Connections - Temptek CF Series Instruction Manual

CF Series Portable Chillers with CF-1 Instrument
2.1

GENERAL

A. All process piping materials (such as hose, rigid piping, valves or
filters) used in process water piping circuitry must be rated for
100°F minimum temperature and 100 PSI minimum pressure.
B. All such materials must have the equivalent or larger diameter of
the particular process connection that length of process water
piping is connected to.
2.2

TO AND FROM PROCESS CONNECTIONS

A. Connect the 'TO PROCESS' to the 'water in' manifold on the mold
or process.
B. Connect the 'FROM PROCESS' port to the 'water out' port on the
process manifold.
C. Process water piping circuitry should be designed to avoid an
excessive use of elbows and/or lengths of pipe or hose. If hose is
the material of choice, avoid tight twists or curls and excessive
lengths.
D. Valves and filters may be installed in the process water piping
circuitry to facilitate service and maintenance provided that such
devices maintain the full inside diameter of the process connection.
If installed, all such devices must be open and clean during unit
operation.

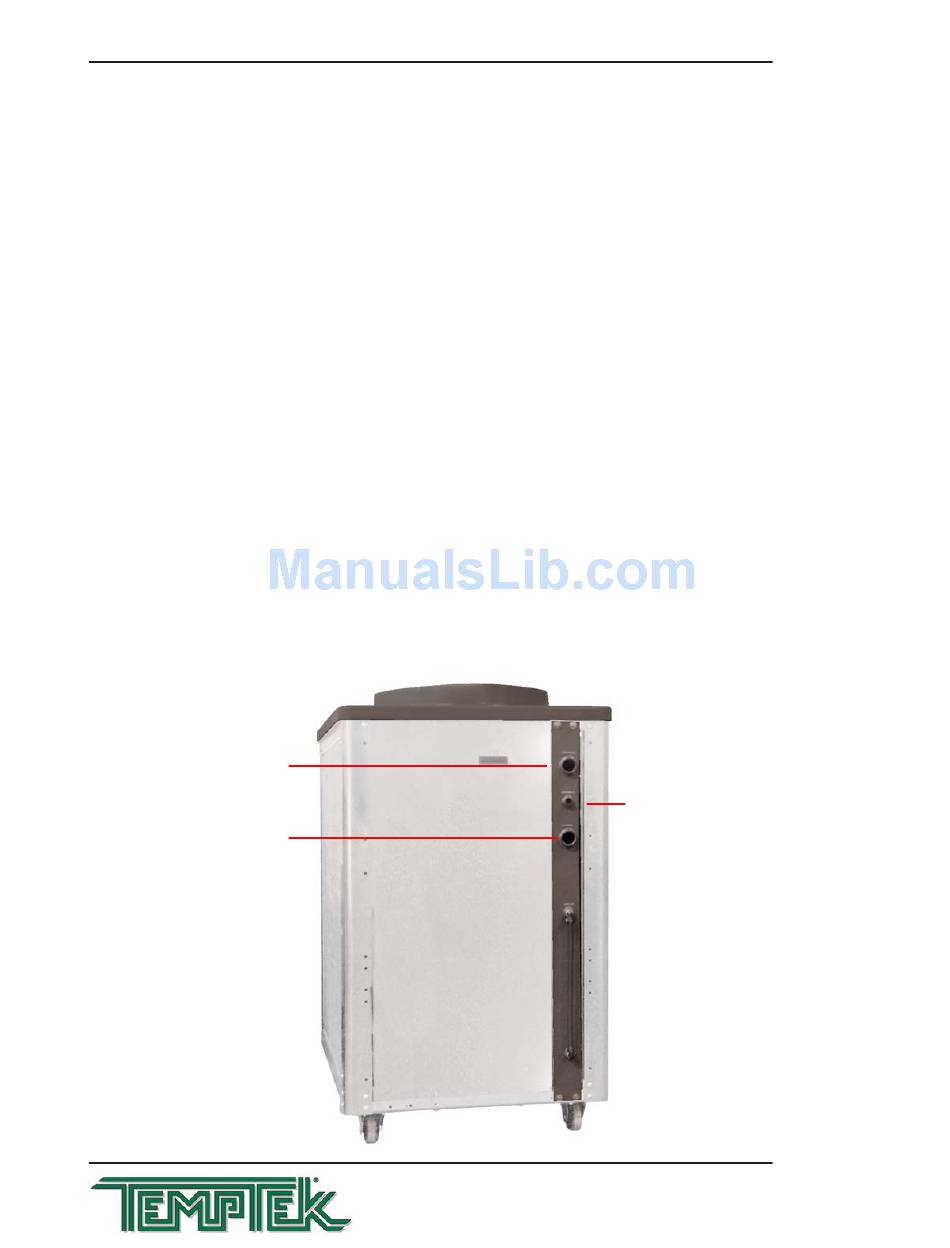

From Process :
Connect to 'Water Out'
port on process manifold
To Process :
Connect to 'Water In' port
on process manifold
Air-cooled model shown.
