Summary of Contents for Alcatel-Lucent OmniAccess 5320 BG

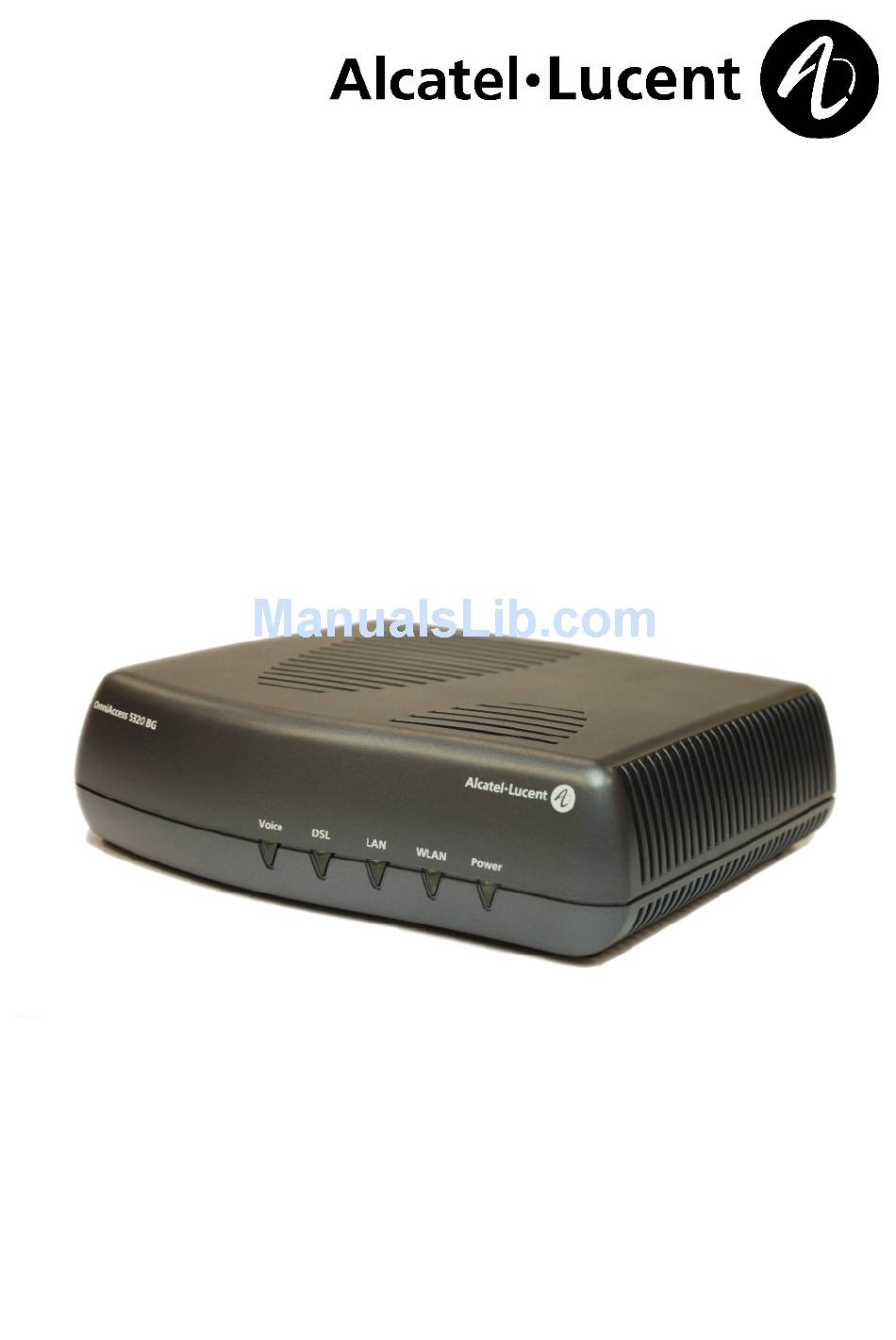

- Page 1 OmniAccess 5320 BG Business Gateway User’s Guide...
- Page 2 ADSL & PRI ports must be protected from over voltage If the OmniAccess 5320 BG needs to be relocated, disconnect all telecommunications lines before switching off. Do not plug the DSL line into any port other than the DSL port, as...
- Page 3 POTS IP PHONE Your Telephone Service The OmniAccess 5320 BG is fitted with one or more of the following port options (or a combination) to support your telephone requirements: • POTS (Plain Old Telephony System) ports for analogue phone and fax •...
-
Page 4: Internet Access
Internet Access Depending on product type, the OmniAccess 5320 BG may be fitted with up to 4 Ethernet ports. Mains Operation The OmniAccess 5320 BG is mains powered via the supplied mains power adaptor. Warning! Only use the mains power adaptor provided. Use of the OmniAccess 5320 BG with any other mains power adaptor may damage the unit and will invalidate its warranty and approval. -
Page 5: The Front Panel
Data transfer No network signal detected WLAN Wireless LAN available Wireless LAN unavailable Voice Voice connections available Flashing independently Call(s) in progress Flashing in sync with Power LED Error on Voice ports No voice service OmniAccess 5320 BG Series User's Guide... -
Page 6: The Rear Panel
(pins 3 & 4) and the outer centre pair for port 2 (pins 2 & 5). Service For maintenance of the OmniAccess 5320 BG by a qualified service engineer only. Unauthorised use of this port may damage the product and invalidate your warranty. - Page 7 Meaning State Remote Alarm Indicate: Loss of Frame Alignment Alarm Indicate Signal: Loss of service NMFAS No Multi-Frame Alignment Signal: Loss of multi-frame alignment in CRC4 mode. Loss Of Signal: Complete loss of signal OmniAccess 5320 BG Series User's Guide...
- Page 8 Products which have multiple LAN ports are fitted with LED's. Meaning State LAN connection established LINK LINK No LAN connection established Flashing Data activity on LAN port LINK 100 BaseT connection 10 BaseT connection (where Link is on or flashing) OmniAccess 5320 BG Series User's Guide...
-
Page 9: Getting Started
• a power cord • this User's Guide The accessory pack from your service provider Some of the following items may be provided for use with the OmniAccess 5320 BG: • an Ethernet cable • a DSL interface cable •... - Page 10 Installing the OmniAccess 5320 Business Gateway Choosing a suitable location The OmniAccess 5320 BG must be installed within 2 metres of a dedicated mains power outlet. Do not place the unit close to a heat source (such as other electrical equipment) or in direct sunlight.
- Page 11 Connecting the DSL Line Using a DSL cable, connect the DSL port on the OmniAccess 5320 BG to the DSL network termination point The DSL Port(s) are rated TNV-3 and as such may be connected to TNV-3 ports with wiring that is external to the building.
- Page 12 The LAN LED will glow steadily once the service has initialised. The 6.1.2 LED will flash to show data activity. 6.1.4 The OmniAccess 5320 BG establishes the DSL link in a two-stage process: synchronization, during which time the DSL LED flashes once a •...
- Page 13 De-installing the OmniAccess 5320 BG If you need to de-install the OmniAccess 5320 BG in order to relocate it, for example, proceed as follows: Disconnect all telecommunications lines. Disconnect the power supply. OmniAccess 5320 BG Series User's Guide...
- Page 14 OmniAccess 5320 BG Series User's Guide...
-
Page 15: Troubleshooting
Check that power is available at the socket. If the mains plug is fused, check the fuse. Power cycle the unit. If the Power LED is still off, please contact your service provider. OmniAccess 5320 BG Series User's Guide... - Page 16 If you do not hear the dial tone when you go off-hook, please contact your service provider. Where call connection is via a PBX If the PBX connection with the OmniAccess 5320 BG is PRI (Primary Rate Interface) or BRI (Basic Rate ISDN), please contact your PBX service engineer.
- Page 17 If the problem persists contact your service provider. RAI=Off Loss Of Signal: Complete loss of signal AIS=Off Ensure PRI cabling and connector pin-out is correct NMFAS=Off If the problem persists contact your service provider. LOS=On OmniAccess 5320 BG Series User's Guide...
- Page 18 Check that the network cable is plugged into the LAN port. If the cable is secure at both ends of the link and is of the correct type, please contact your service provider. OmniAccess 5320 BG Series User's Guide...
-
Page 20: Declaration Of Conformity
OmniAccess 5320 BG - Business Gateway - User guide https://businessportal.alcatel-lucent.com/alugesdp/content?ID=Q00034833 Declaration of Conformity Dataflex Design Communications Limited Connect House Kingston Road Leatherhead, Surrey KT22 7LT, UK declare under sole responsibility that the product ViNE2000 Branded for Marketing ‘OmniAccess 5320’ to which this declaration relates, is compliant with the essential requirements of R&TTE Directive 1999/5/EC of 9 March 1999...
