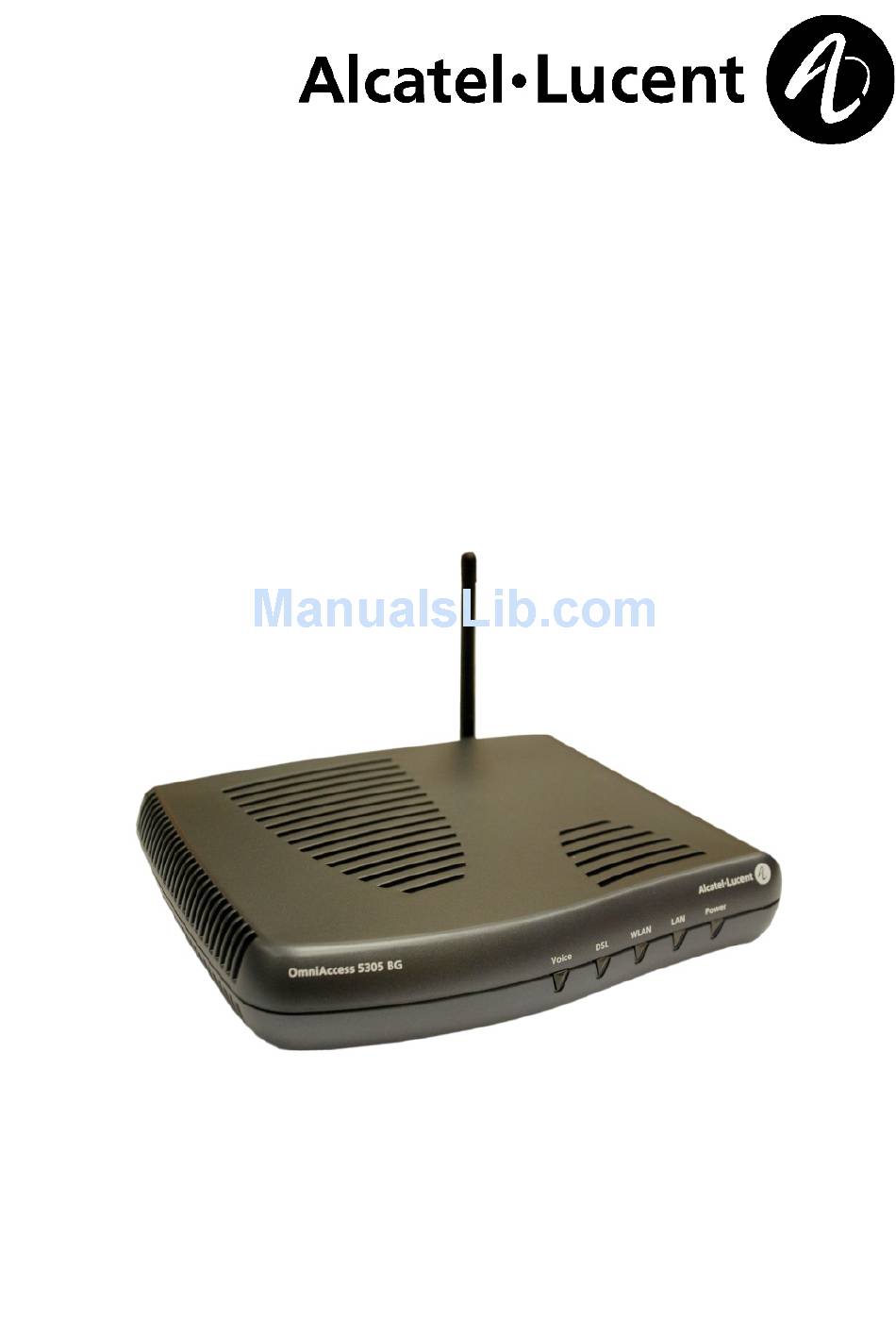

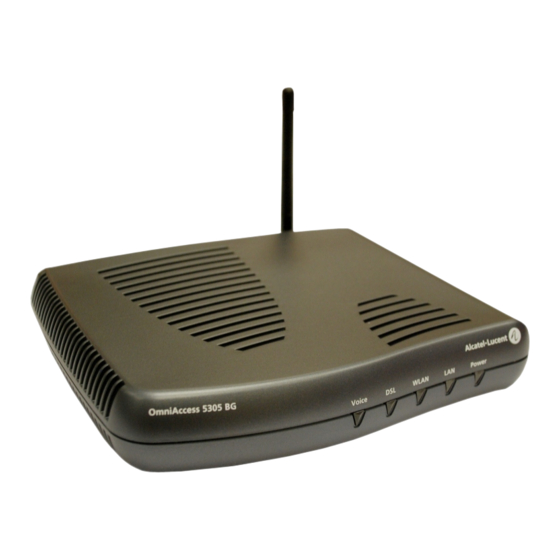

- Page 1 OmniAccess 5305 BG Business Gateway User’s Guide...
- Page 2 Do not plug the ADSL line into any port other than the ADSL port, as this may damage the product. If the OmniAccess 5305 BG needs to be relocated, disconnect all telecommunications lines before switching off. There are no user-serviceable components inside the OmniAccess 5305 BG.
- Page 3 POTS IP PHONE Your Telephone Service The OmniAccess 5305 BG is fitted with one or more of the following port options (or a combination) to support your telephone requirements: • POTS (Plain Old Telephony System) ports for analogue phone and fax •...
-
Page 4: Internet Access
Power Internet Access The OmniAccess 5305 is fitted with 4 Ethernet ports. Depending on product type, the OmniAccess 5305 BG may also be enabled for wireless connectivity. Mains Operation The OmniAccess 5305 BG is mains powered via the supplied mains power adaptor. -
Page 5: The Front Panel
Flashing in sync with Power LED WLAN Error Wireless LAN unavailable Flashing Data transfer Voice Voice connections available Flashing independently Call(s) in progress Flashing in sync with Power LED Error on Voice ports No voice service OmniAccess 5305 BG Series User's Guide... -
Page 6: The Rear Panel
For connection to your DSL line. RJ11 socket. Products connect using centre pins 3 & 4 of the RJ11 connector. For maintenance of the OmniAccess 5305 BG by a Service qualified service engineer only. Unauthorised use of this port may damage the product and invalidate your warranty. - Page 7 Products which have multiple LAN ports are fitted with LED's. Meaning State LAN connection established LINK LINK No LAN connection established LINK Flashing Data activity on LAN port 100 BaseT connection 10 BaseT connection (where Link is on or flashing) OmniAccess 5305 BG Series User's Guide...
-
Page 8: Getting Started
• a power cord • this User's Guide The accessory pack from your service provider Some of the following items may be provided for use with the OmniAccess 5305 BG: • an Ethernet cable • a DSL interface cable •... - Page 9 Installing the OmniAccess 5305 Business Gateway Choosing a suitable location The OmniAccess 5305 BG must be installed within 2 metres of a dedicated mains power outlet. Do not place the unit close to a heat source (such as other electrical equipment) or in direct sunlight.
- Page 10 OmniAccess 5305 BG to a port on your network hub. Connecting the DSL Line Using a DSL cable, connect the DSL port on the OmniAccess 5305 BG to the DSL network termination point. The DSL Port(s) are rated TNV3 and as such may be connected to TNV-3 ports with wiring that is external to the building.
- Page 11 DSL. Follow the instructions supplied by your service provider. De-installing the OmniAccess 5305 BG If you need to de-install the OmniAccess 5305 BG in order to relocate it, for example, proceed as follows: Disconnect all telecommunications lines. Disconnect the power supply.
-
Page 12: Troubleshooting
Check that power is available at the socket. If the mains plug is fused, check the fuse. Power cycle the unit. If the Power LED is still off, please contact your service provider. OmniAccess 5305 BG Series User's Guide... - Page 13 If you do not hear the dial tone when you go off-hook, please contact your service provider. Where call connection is via a PBX If the PBX connection with the OmniAccess 5305 BG is BRI (Basic Rate ISDN), please contact your PBX service engineer.
- Page 14 Check that the network cable is plugged into the LAN port. If the cable is secure at both ends of the link and is of the correct type, please contact your service provider. OmniAccess 5305 BG Series User's Guide...
- Page 16 OmniAccess 5305 BG - Business Gateway - User guide https://businessportal.alcatel-lucent.com/alugesdp/content?ID=Q00034831 Declaration of Conformity Dataflex Design Communications Limited Connect House Kingston Road Leatherhead, Surrey KT22 7LT, UK declare under sole responsibility that the product ViNE500 Branded for Marketing ‘OmniAccess 5305’ to which this declaration relates, is compliant with the essential requirements of R&TTE Directive 1999/5/EC of 9 March 1999...
