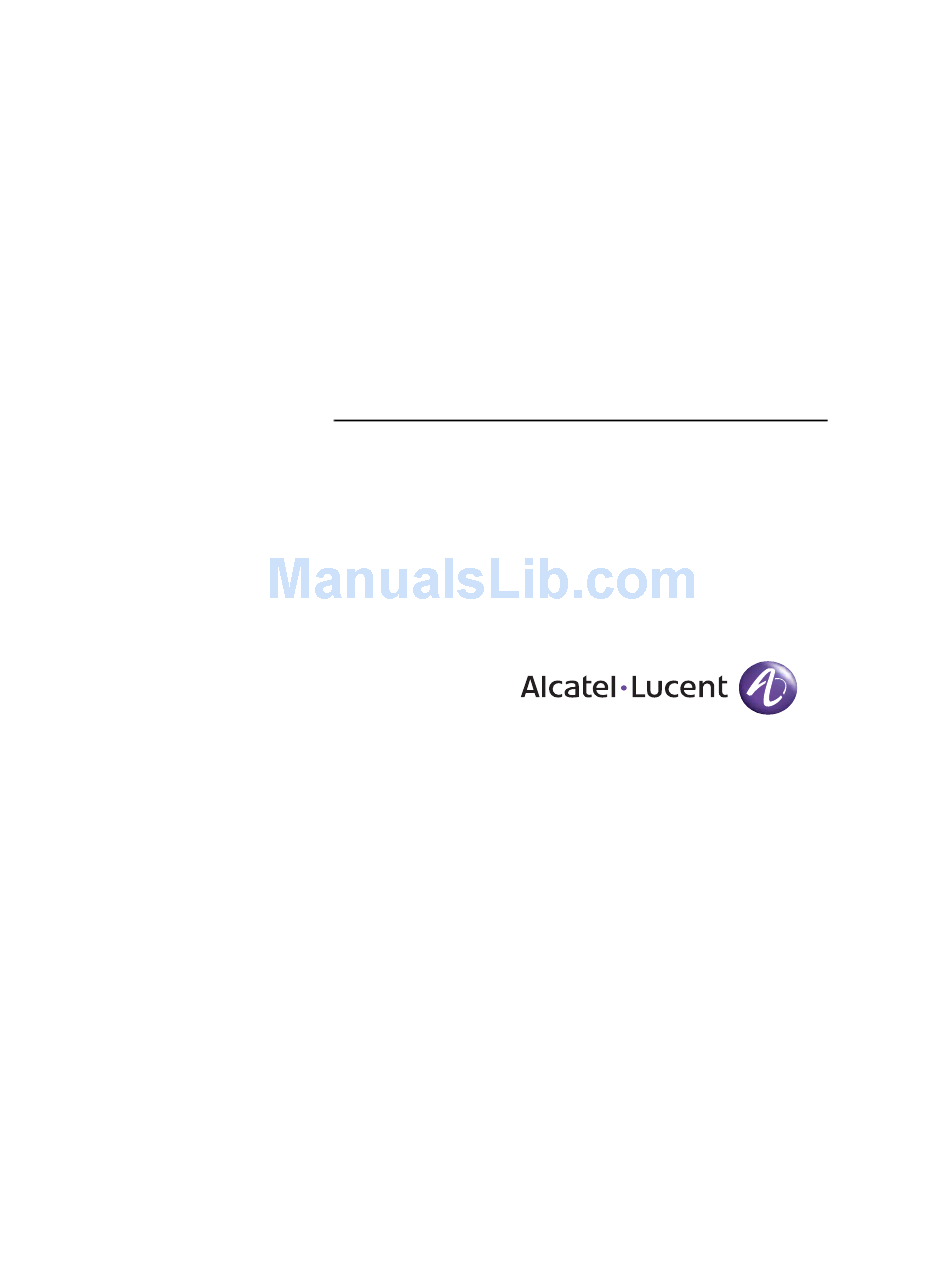

OmniAccess 5740
Unified Services Gateway
Hardware Users Guide
1
2
Release 3.0
Notes on numbered items on banner & legal pages
1
26801 West Agoura Road
Calabasas, CA 91301
(818) 880-3500
FAX (818) 880-3505
support@ind.alcatel.com
Beta
US Customer Support—(800) 995-2696
International Customer Support—(818) 878-4507
Internet—service.esd.alcatel-lucent.com
Website: www.alcatel-lucent.com
Part No: 032288-00, Rev. D
