Hunter Ceiling fan Instructions Manual page 8

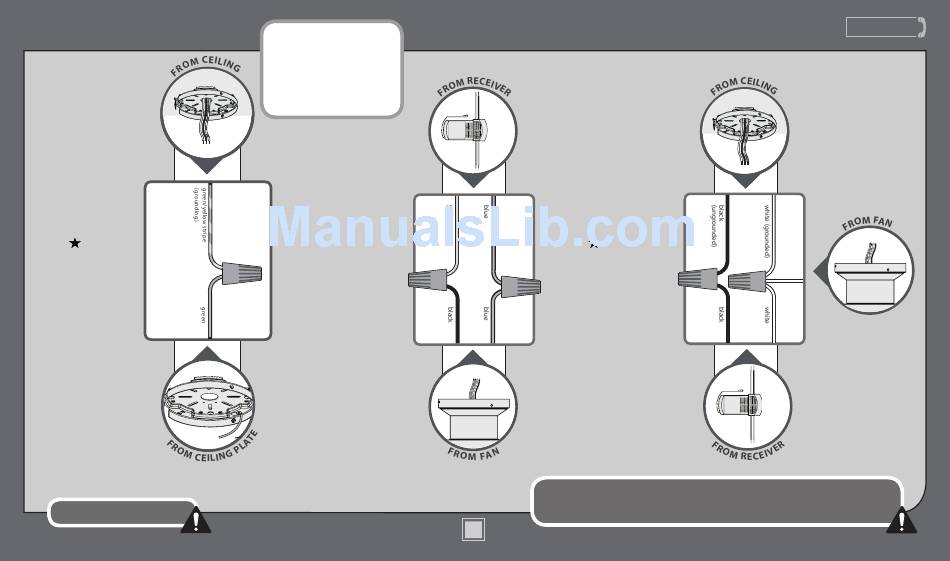

Wiring
Using an orange
wire connector from
the hardware
bag, connect the
3 grounding wires
(green, green/
yellow stripe, or bare
copper) coming
from the ceiling and
ceiling plate.
Refer to CAUTION c.1 on pg. 2
Note: To connect the
wires, hold the bare
metal leads together and
place a wire connector
over them, then twist
clockwise until tight.
Using the orange
wire connectors
from the remote
control hardware
bag, connect the blue
wire from the receiver
to the blue wire (or
possibly black with
white stripe wire) from
the fan. Connect the
yellow wire from the
receiver to the black
wire from the fan.
M3552-01 • 05/14/14 • © Hunter Fan Company
Using the orange wire
connectors from
the hardware bag,
connect the black wire
(ungrounded) from
the ceiling to the black
wire from the receiver.
Connect the white
wire (grounded) from
the ceiling to both the
white wire from the
receiver and the white
wire from the fan.
Turn the splices upward and push them carefully back through the ceiling plate into
the outlet box. Spread the wires apart, with the grounded wires on one side of the
outlet box and the ungrounded wires on the other side of the outlet box.
8
www.HunterFan.com
1.888.830.1326
white
