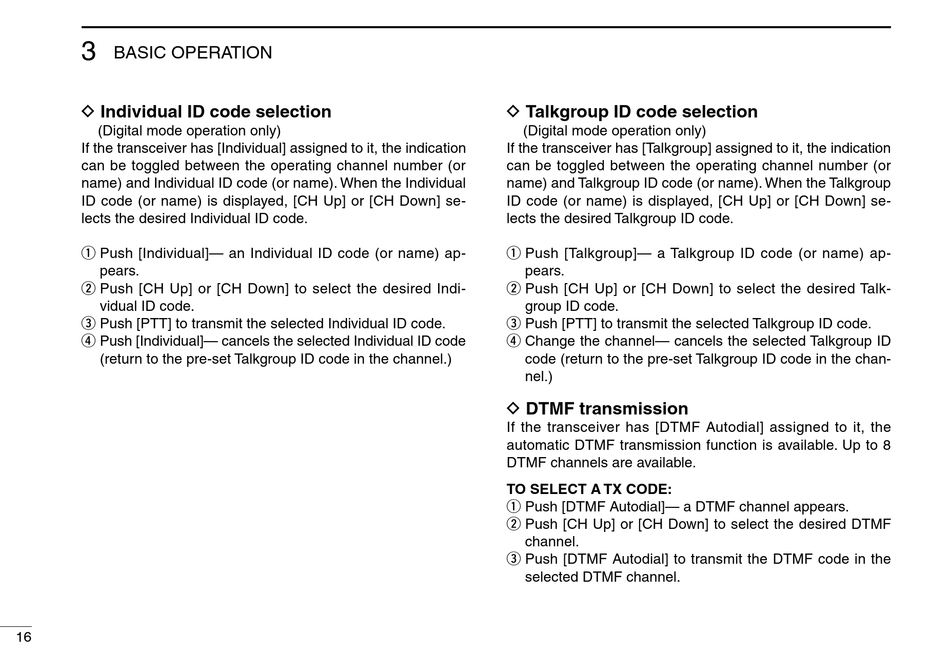

D Individual Id Code Selection; D Talkgroup Id Code Selection; D Dtmf Transmission - Icom IC-F70DT Instruction Manual

3
BASIC OPERATION

D Individual ID code selection

(Digital mode operation only)
If the transceiver has [Individual] assigned to it, the indication
can be toggled between the operating channel number (or
name) and Individual ID code (or name). When the Individual
ID code (or name) is displayed, [CH Up] or [CH Down] se-
lects the desired Individual ID code.
q Push [Individual]— an Individual ID code (or name) ap-
pears.
w Push [CH Up] or [CH Down] to select the desired Indi-
vidual ID code.
e Push [PTT] to transmit the selected Individual ID code.
r Push [Individual]— cancels the selected Individual ID code
(return to the pre-set Talkgroup ID code in the channel.)
16

D Talkgroup ID code selection

(Digital mode operation only)
If the transceiver has [Talkgroup] assigned to it, the indication
can be toggled between the operating channel number (or
name) and Talkgroup ID code (or name). When the Talkgroup
ID code (or name) is displayed, [CH Up] or [CH Down] se-
lects the desired Talkgroup ID code.
q Push [Talkgroup]— a Talkgroup ID code (or name) ap-
pears.
w Push [CH Up] or [CH Down] to select the desired Talk-
group ID code.
e Push [PTT] to transmit the selected Talkgroup ID code.
r Change the channel— cancels the selected Talkgroup ID
code (return to the pre-set Talkgroup ID code in the chan-
nel.)

D DTMF transmission

If the transceiver has [DTMF Autodial] assigned to it, the
automatic DTMF transmission function is available. Up to 8
DTMF channels are available.
TO SELECT A TX CODE:
q Push [DTMF Autodial]— a DTMF channel appears.
w Push [CH Up] or [CH Down] to select the desired DTMF
channel.
e Push [DTMF Autodial] to transmit the DTMF code in the
selected DTMF channel.
