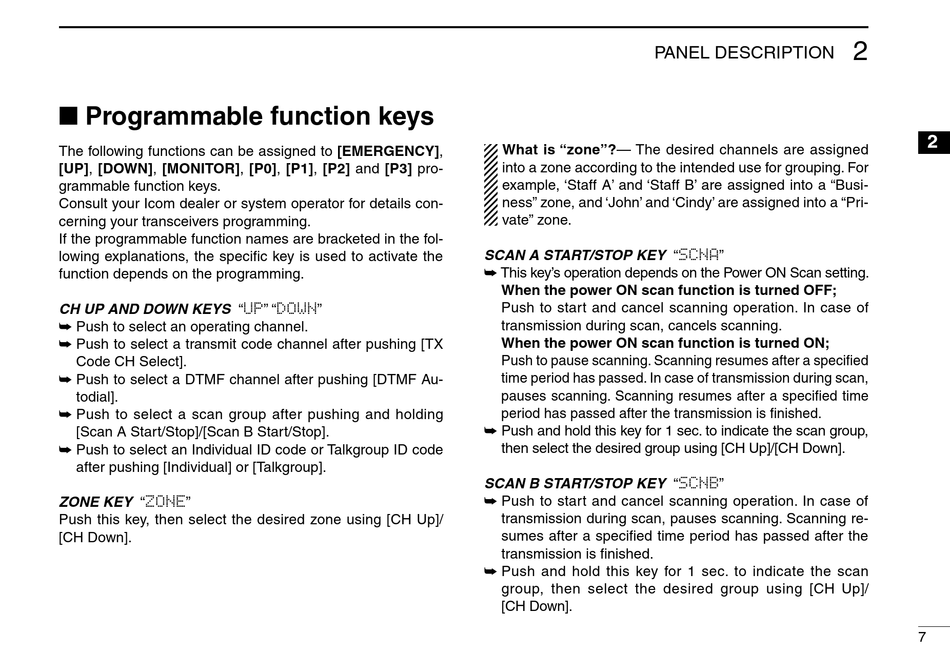

■ Programmable function keys

The following functions can be assigned to [EMERGENCY],
[UP], [DOWN], [MONITOR], [P0], [P1], [P2] and [P3] pro-
grammable function keys.
Consult your Icom dealer or system operator for details con-
cerning your transceivers programming.
If the programmable function names are bracketed in the fol-
lowing explanations, the specific key is used to activate the
function depends on the programming.
CH UP AND DOWN KEYS "UP" "DOWN"
➥ Push to select an operating channel.
➥ Push to select a transmit code channel after pushing [TX
Code CH Select].
➥ Push to select a DTMF channel after pushing [DTMF Au-
todial].
➥ Push to select a scan group after pushing and holding
[Scan A Start/Stop]/[Scan B Start/Stop].
➥ Push to select an Individual ID code or Talkgroup ID code
after pushing [Individual] or [Talkgroup].
ZONE KEY "ZONE"
Push this key, then select the desired zone using [CH Up]/
[CH Down].
PANEL DESCRIPTION
What is "zone"?— The desired channels are assigned
into a zone according to the intended use for grouping. For
example, 'Staff A' and 'Staff B' are assigned into a "Busi-
ness" zone, and 'John' and 'Cindy' are assigned into a "Pri-
vate" zone.
SCAN A START/STOP KEY "SCNA"
➥ This key's operation depends on the Power ON Scan setting.
When the power ON scan function is turned OFF;
Push to start and cancel scanning operation. In case of
transmission during scan, cancels scanning.
When the power ON scan function is turned ON;
Push to pause scanning. Scanning resumes after a specified
time period has passed. In case of transmission during scan,
pauses scanning. Scanning resumes after a specified time
period has passed after the transmission is finished.
➥ Push and hold this key for 1 sec. to indicate the scan group,
then select the desired group using [CH Up]/[CH Down].
SCAN B START/STOP KEY "SCNB"
➥ Push to start and cancel scanning operation. In case of
transmission during scan, pauses scanning. Scanning re-
sumes after a specified time period has passed after the
transmission is finished.
➥ Push and hold this key for 1 sec. to indicate the scan
group, then select the desired group using [CH Up]/
[CH Down].
