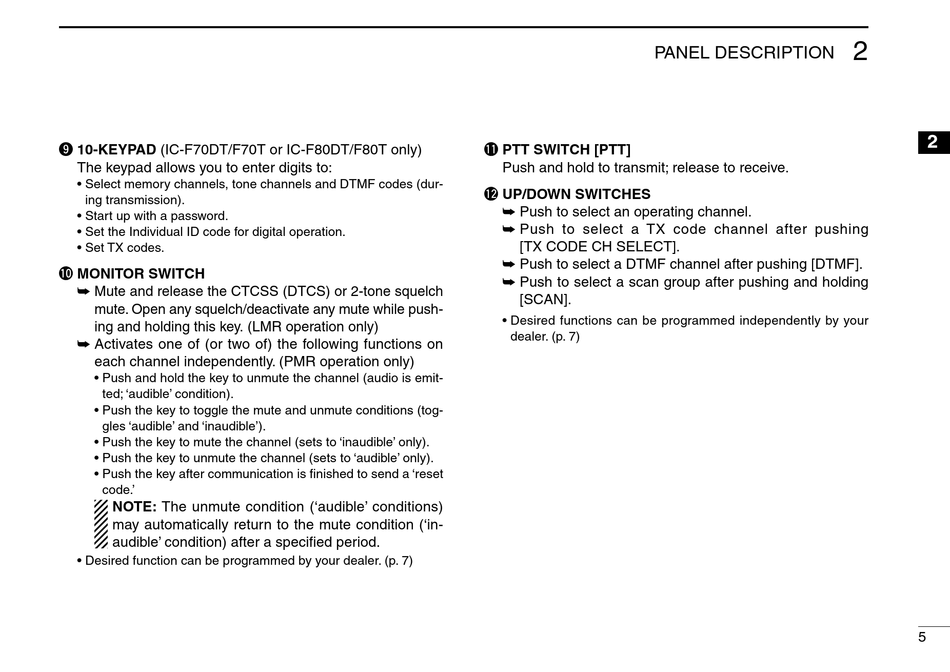

o 10-KEYPAD (IC-F70DT/F70T or IC-F80DT/F80T only)
The keypad allows you to enter digits to:
• Select memory channels, tone channels and DTMF codes (dur-
ing transmission).
• Start up with a password.
• Set the Individual ID code for digital operation.
• Set TX codes.
!0 MONITOR SWITCH
➥ Mute and release the CTCSS (DTCS) or 2-tone squelch
mute. Open any squelch/deactivate any mute while push-
ing and holding this key. (LMR operation only)
➥ Activates one of (or two of) the following functions on
each channel independently. (PMR operation only)
• Push and hold the key to unmute the channel (audio is emit-
ted; 'audible' condition).
• Push the key to toggle the mute and unmute conditions (tog-
gles 'audible' and 'inaudible').
• Push the key to mute the channel (sets to 'inaudible' only).
• Push the key to unmute the channel (sets to 'audible' only).
• Push the key after communication is finished to send a 'reset
code.'
NOTE: The unmute condition ('audible' conditions)
may automatically return to the mute condition ('in-
audible' condition) after a specified period.
• Desired function can be programmed by your dealer. (p. 7)
PANEL DESCRIPTION
!1 PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
!2 UP/DOWN SWITCHES
➥ Push to select an operating channel.
➥ Push to select a TX code channel after pushing
[TX CODE CH SELECT].
➥ Push to select a DTMF channel after pushing [DTMF].
➥ Push to select a scan group after pushing and holding
[SCAN].
• Desired functions can be programmed independently by your
dealer. (p. 7)
