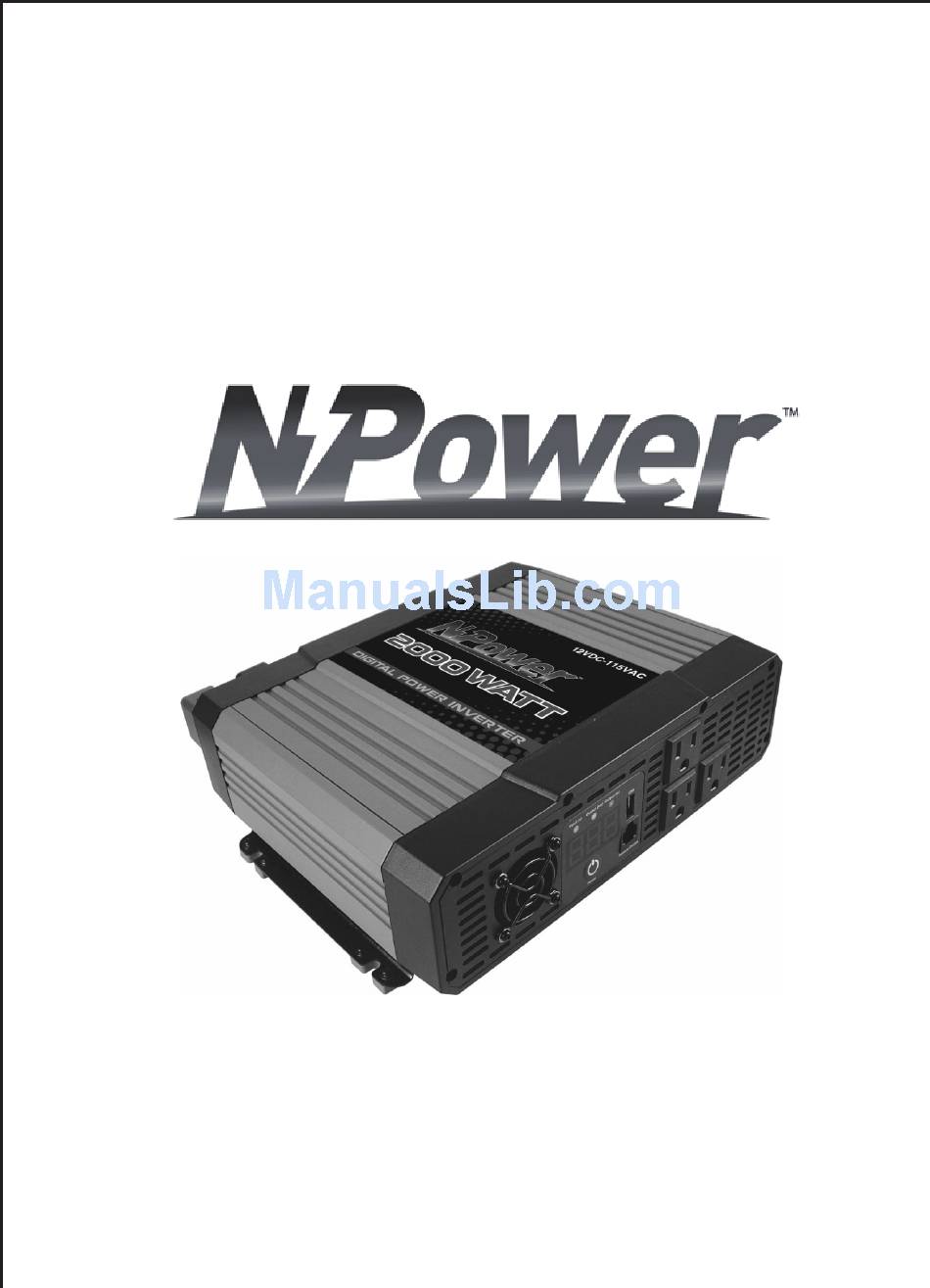

2000W Power Inverter
OWNER'S MANUAL

Model number-4572002

TO REDUCE THE RISK OF INJURY, USER MUST READ AND
UNDERSTAND THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS
IMPORTANT INFORMATION REGARDING THE OPERATION AND
WARRANTY OF THIS PRODUCT. PLEASE RETAIN FOR FUTURE
REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4572002 and is the answer not in the manual?

Questions and answers

Related Manuals for NPower 4572002

Summary of Contents for NPower 4572002

  • Page 1: Model Number

    2000W Power Inverter OWNER’S MANUAL Model number-4572002 TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING THE OPERATION AND WARRANTY OF THIS PRODUCT. PLEASE RETAIN FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    CONTENTS 1. Introduction....................2. Important Safety Information..............3. Protective Features................4. Features....................5. Installation....................6. Operating Instructions................7. Troubleshooting..................8. Specifications..................9. Warranty....................

  • Page 3: Introduction

    1. Introduction Thank you for purchasing the NPower 2000W Power Inverter, a high performance solution to use household power while on the road. Connected to the 12V volt output in your vehicle, the inverter efficiently and reliably supplies 110V/60Hz AC power with 2000W continuous output power for a wide variety of loads, such as all kinds of jacklights, TV sets, audio/video systems and electromotion tools with power consumption under 2000 watts.
  • Page 4 Warning The case to the unit may become very warm under high power operationreaching 140°F(60°C). Be sure that there is at least 2 (5cm) of unobstructed air space around the entire surface of the inverter at all times. During use, do not place materials that could be damaged by heat near the unit.

  • Page 5: Protective Features

    Caution Some chargers for small nickel-cadmium batteries can be damaged if connected to the unit. Do not use the unit on the following items: Small battery-operated appliances such as flashlights, razors and nightlights those can be plugged directly into an AC outlet to recharge. Certain battery chargers for battery packs used in hand power tools.

  • Page 6: Features

    When the 12 V DC power supply voltage drops below 11 ± 0.3 V, an audible alarm will sound, and the digital display showing “LUP”. Over-heating Shut Off When the internal temperature exceeds the regulated temperature due to the increase of ambient temperature, the inverter will automatically shut down, and the digital display showing “LCP”.
  • Page 7 1. AC Outlets— They allow you to plug in 110V AC products with a total continuous of 2000W or less. 2. Digital Readout—it indicates the power and DC voltages. The allowed power tolerance is 15% (with loads of over 200W), and the allowed voltage tolerance is +/-0.2V (no load).

  • Page 8: Installation

    9. Cooling Fan and Ventilation Openings— The high speed cooling fan protects the inverter from over-heating. And the ventilation openings should be kept clear! 10. Positive DC terminal— Connect the red end of the DC power cord to it. 11. Negative DC terminal— Connect the black end of the DC power cord to 5.
  • Page 9 up. This surge of power is referred to as the “starting load” or “peak load”. Once started, the tool or appliance requires less power to continue to operate. This is referred to as the “continuous load” in terms of power requirements. You will need to determine how much power your tool or appliance requires to start up and its continued running power requirements.

  • Page 10: Operating Instructions

    Caution Caution A loose connection will cause the voltage to drop and may cause the cables A loose connection will cause the voltage to drop and may cause the cables to overheat, resulting in equipment damage or fire. to overheat, resulting in equipment damage or fire. 6.
  • Page 11 voltage shut off will affect the life of the battery. If you are operating electrical products for extended periods of time, you should consider connecting the unit to a separate deep discharge battery. Should a defective battery charging system cause the battery voltage to rise to the range of 15.0V~16.0VDC, the inverter automatically shuts down;...

  • Page 12: Troubleshooting

    7. Troubleshooting PROBLEM CAUSE SOLUTION Battery is defective Replace battery Blown fuse Check and replace fuse No power, no Check the connection indicator. to the battery. Tighten Lose cable connections as required. AC products connected are Reduce load, use a rated at more than 2000W;...
  • Page 13 Disconnect the inverter and wipe immediately Water entered Water entered the unit with a dry cloth, or permanent damage can occur with liquid ingress. Shorten cables or use heavier cables. Recharge battery. Allow unit to cool. Low voltage shutdown or Improve air circulation Alarm is sounding thermal shutdown has...

  • Page 14: Specifications

    8.Specifications Specifications are subject to change without notice. AC Power Output AC output voltage 105V~125V AC Maximum AC output power 2000W Maximum AC output surge power 4000W AC output frequency(nominal) 58~62Hz AC output waveform Modified sine wave USB Power Output AC output frequency(nominal) 5 V DC DC Power Specifications...

  • Page 15: Warranty

    NPower will repair or replace the defective product free of charge. Proof of purchase may be required. Warranty term is not extended if NPower repairs or replaces a product.
