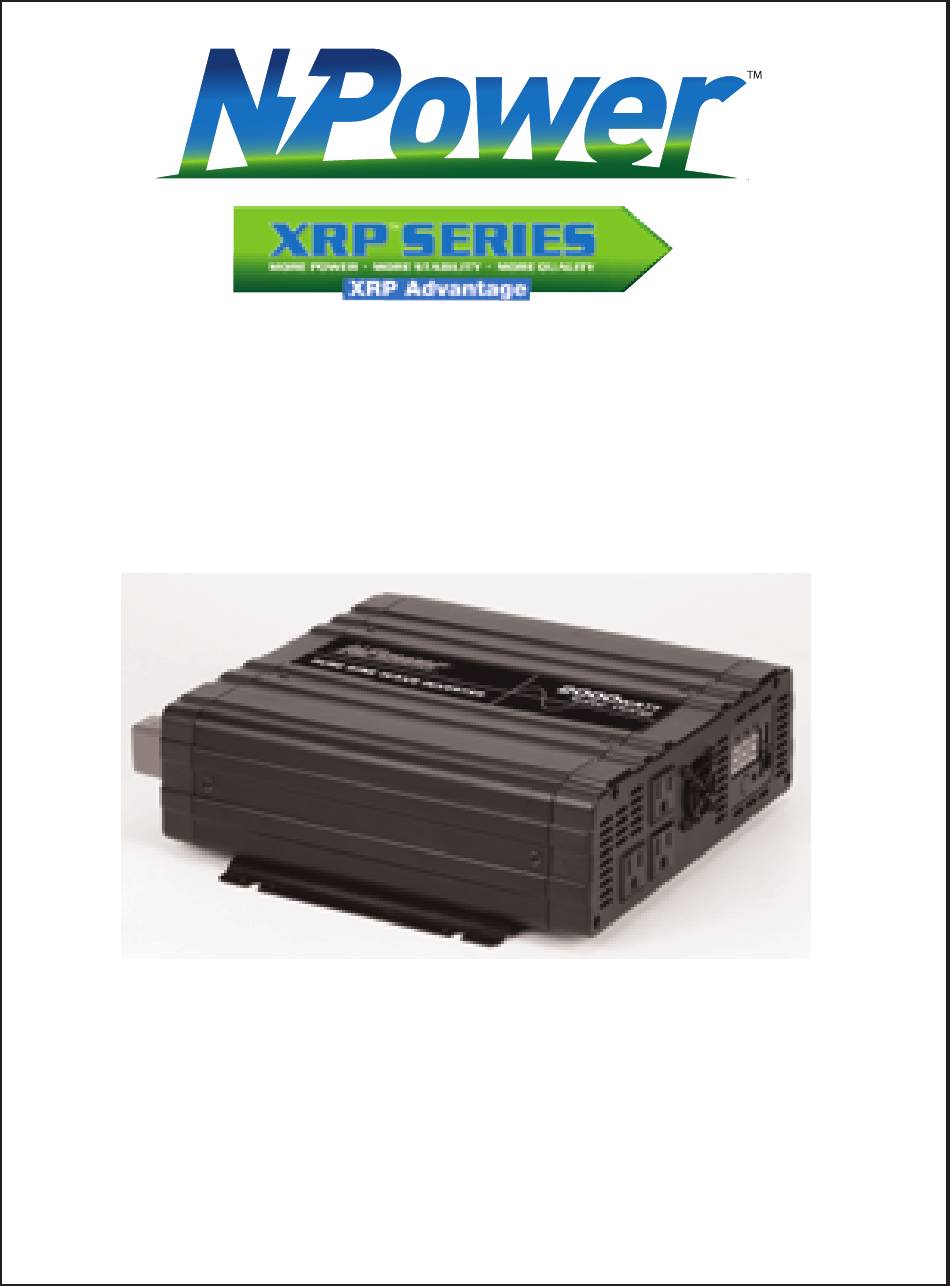

2000W Pure Sine Inverter

Item Number# 31909

OWNER'S MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ

AND UNDERSTAND THIS INSTRUCTIONAL MANUAL.

THIS MANUAL CONTAINS IMPORTANT INFORMATION

REGARDING THE OPERATION AND WARRANTY OF THIS

PRODUCT. PLEASE RETAIN FOR FUTURE REFERENCE.

Table of Contents

Need help?

Do you have a question about the XRP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for NPower XRP Series

Page 1 2000W Pure Sine Inverter Item Number# 31909 OWNER’S MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING THE OPERATION AND WARRANTY OF THIS PRODUCT. PLEASE RETAIN FOR FUTURE REFERENCE.
Page 2 About this Guide Purpose The purpose of this Owner’s Guide is to provide explanations and procedures for operating, installing, maintaining, and troubleshooting the 2000W Pure Sine Inverter. Scope The guide provides safety guidelines, as well as information about operating, installing, and troubleshooting the inverter. It does not provide details about particular brands of batteries.
Page 3: Table Of Contents
TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS..........2. INTRODUCTION................... 3. FEATURES.................... 4. INSTALLATION..................5. OPERATION..................6. TROUBLESHOOTING................7. SPECIFICATIONS................. 8.WARRANTY...................
Page 4: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: READ AND SAVE THIS OWNER’S MANUAL FOR FUTURE REFERENCE. WARNING: Shock, fire, and heat hazard. Risk of injury to persons Do not expose the 2000W Pure Sine Inverter to rain, snow, spray, or bilge water. To reduce risk of fire hazard, do not cover or obstruct the ventilation openings.
Page 5 Precautions When Working with Batteries WARNING: Explosion or fire hazard Follow all instructions published by the battery manufacturer and the manufacturer of the equipment in which the battery is installed to reduce the risk of battery explosion. Working in the vicinity of lead-acid batteries is dangerous. Batteries generate explosive gases during normal operation.
Page 6: Introduction
Remove all metal items, such as rings, bracelets, and watches when working with lead-acid batteries. Lead-acid batteries produce a short circuit current high enough to weld metal to skin, causing a severe burn. Have someone within range of your voice or close enough to come to your aid when you work near a lead-acid battery.
Page 7 Quality Power The 2000W Pure Sine Inverter is a professional-quality, mid-range inverter designed to handle a variety of applications including compact microwaves, TVs, VCRs, coffee makers, lamps, and small power tools. The 2000W Pure Sine Inverter provides optimal continuous power (1800 W ), making it ideal for large single loads, intermittent loads, or multiple smaller loads.
Page 8: Features
A convenient USB port powers all modern electronic products. Comprehensive Protection The 2000W Pure Sine Inverter is equipped with numerous protection features to guarantee safe and trouble-free operation: Low battery Alerts you if the battery has become discharged to voltage alarm 11 V or lower.
Page 9 Materials List Your 2000W Pure Sine Inverter package includes these items: • 2000W Pure Sine Inverter unit • Owner’s Manual • Remote control panel mounting brackets • The 2000W Pure Sine Inverter can also be installed with a remote ON/OFF switch that comes with a 20’ (6 m) cable If any of these materials are missing or are unsatisfactory in any way, please call the toll-free helpline: 1-800-222-5381.
Page 10 1 2 3 Figure 1: 2000W Pure Sine Inverter Front Panel Green LED—Indicates DC input voltage. Yellow LED—Indicates that the consumption of the loads of your device is over 2000 W. When AC output power exceeds 2100 W – 2800 W, the over load shutdown will act. Red LED—...
Page 11: Installation
11 10 Figure 2 2000W Pure Sine Inverter View Panel Cooling Fan and Ventilation Openings— The high speed cooling fan protects the inverter from over-heating. Ventilation openings should be kept clear! Positive (+) DC terminal— Accepts ring connectors appropriate to the cable size being used.
Page 12 knowledge of the applicable installation codes, and awareness of the hazards involved in performing electrical work and how to reduce those hazards. Basic Installation Steps 1. Determine battery capacity. 2. Determine a charging system. 3. Choose a location. 4. Mount the inverter. 5.
Page 13 you need it and that your batteries remain in top condition. Inadequate charging will degrade system performance and the wrong type of charger will reduce battery life. For a list of Battery Chargers, please call the toll-free helpline: 1-800-222-5381. Choose a Location CAUTION: Risk of inverter damage.
Page 14 Installation Description Don’t allow water or other liquids to drop or splash on the unit. Ambient air temperature should be between Cool -4°F and 104°F (-20°C - 40°C) (the cooler the better within this range). Leave at least 2” (5 cm) of clearance around the Ventilated unit for airflow.
Page 15 Mount the inverter 1. Select an appropriate mounting location and orientation. The unit can be oriented in any way, such as: • Horizontally on a vertical surface or • On or under a horizontal surface. WARNING DC connections should NOT point up or down. 2.
Page 16 CAUTION: Risk of inverter damage due to reverse polarity. A reverse polarity connection (positive to negative) will blow a fuse in the inverter and may permanently damage the unit. Damage caused by a reverse polarity connection is not covered by your warranty. Attach the connector on the positive cable to the positive battery terminal.
Page 17: Operation
5. OPERATION Turning the Inverter On and Off The power switch on the inverter’s front panel turns the control circuit in the 2000W Pure Sine Inverter on and off. To toggle the inverter on and off from its front panel: Press the inverter’s power switch button (for half a second) to turn on the inverter (from off).
Page 18 inverter switched on for a few days. If you are not planning to recharge your battery within a week or so, switch the inverter off. Reading the Front Panel Indicators Indicator LEDs If the Green LED is on, it indicates that the unit is on. Under normal operating conditions, the AC outlets and USB port have power.
Page 19 Description of LED and Digital Display Codes Digital display Description Green 13.5 Example: 13.5 V Yellow 1.00 Example: 1.00 Kw (1000 W) Example: 0.5 Kw (500 W) Low voltage alarm Under voltage shutdown Over voltage shutdown Over load shutdown Over temperature shutdown Short circuit Restarting After an AC Output Shutdown 1.Press the unit’s power switch to turn it off.
Page 20 Power Current Voltage Temp. 1800 W 13 V DC Ambient 25°C (77°F) 2000 Pure Sine Inverter Input Voltage The input voltage limits are shown in the following table. Voltage range Comments Operating condition Normal 11.0 V - 14.0 V 13.0 V - 14.0 V Peak Performance The audible low battery alarm 11.0 ±0.3V...
Page 21 Inverter Loads The 2000W Pure Sine Inverter will operate many AC loads within its power rating. However, some appliances and equipment may be difficult to operate. Please see “Problem Loads” below carefully. USB Loads A lot of USB-powered devices such as portable music (MP3) players, mobile phones, and video game players can be charged and powered safely via the standard USB port.
Page 22: Troubleshooting
Battery Charging Frequency When possible, recharge your batteries when they are about 50% discharged or earlier. This gives them a much longer life cycle than recharging when they are almost completely discharged. Routine Maintenance Minimal maintenance is required to keep your 2000W Pure Sine Inverter operating properly.
Page 23 Troubleshooting Reference Possible Cause Solution Problem Under-voltage (Low Recharge the battery. input shutdown) Check if cables and connection are secure. Poor DC wiring and/or Use proper cable and make poor battery condition) secure connections. Charge the battery or install a new battery.
Page 24: Specifications
7. SPECIFICATIONS Specifications are subject to change without prior notice. AC Output Continuous power 1800 W Peak power (5 minutes) 2000 W Surge power 4000 W AC output voltage range 108 V – 125 V AC Output frequency (nominal) 60 ± 0.05 HZ Output waveform Pure sine wave Efficiency...
Page 25: Warranty
Physical specifications Ambient operating temperature -4°F - 104°F range -20°C - 40°C Dimensions 12 1/5x 11 x 3 1/2" (31 x 27.9 x 8.9 cm) Weight 11 lb (5 kg) 8.Warranty The limited warranty program is the only one that applies to this unit, and it sets forth all the responsibilities of .
Page 26 products are deemed non-working or malfunctioning, the product may be returned to the purchasing store with 30 days of original purchase. Any defective unit that is returned to manufacturer within 30 days of the date of purchase will be replaced free of charge. If such a unit is returned more than 30 days but less than one year from the purchase date, manufacturer will repair the unit or, at its option, replace it, free of charge.
