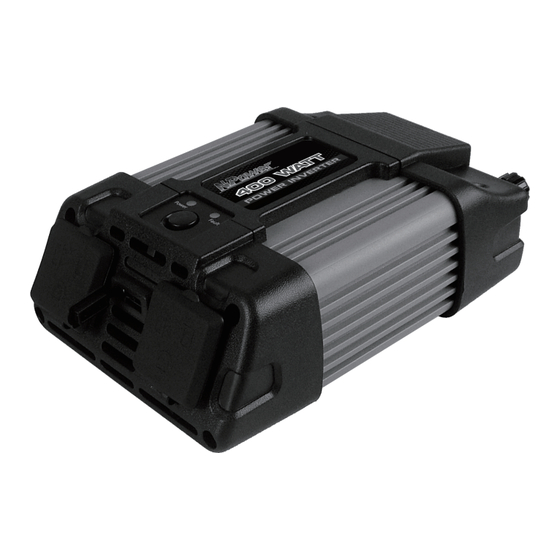

400W Power Inverter

OWNER'S MANUAL

Model number-457400

THANK YOU FOR PURCHASING THIS NPOWER PRODUCT. ALL NPOWER

PRODUCTS ARE PRODUCED TO THE HIGHEST QUALITY. TO REDUCE

THE RISK OF INJURY, PLEASE READ THIS INSTRUCTION MANUAL AND

RETAIN FOR FUTURE REFERENCE.

Table of Contents

Need help?

Do you have a question about the 457400 and is the answer not in the manual?

Questions and answers

Summary of Contents for NPower 457400

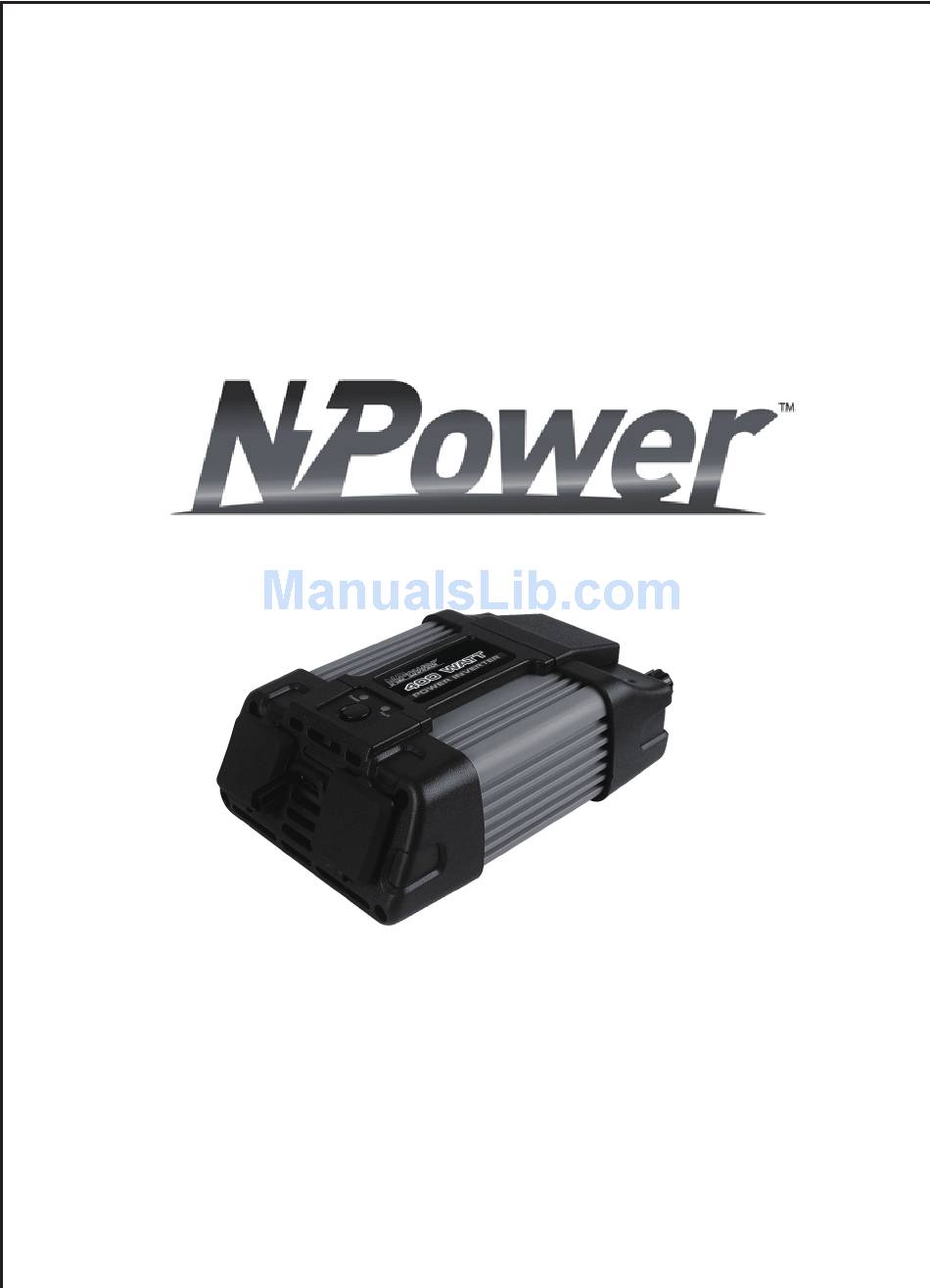

Page 1: Model Number
400W Power Inverter OWNER’S MANUAL Model number-457400 THANK YOU FOR PURCHASING THIS NPOWER PRODUCT. ALL NPOWER PRODUCTS ARE PRODUCED TO THE HIGHEST QUALITY. TO REDUCE THE RISK OF INJURY, PLEASE READ THIS INSTRUCTION MANUAL AND RETAIN FOR FUTURE REFERENCE.
Page 2: Table Of Contents
CONTENTS 1. Introduction....................2. Safety Information................... 3. Features....................4. Connecting/Operating the inverter............5. Troubleshooting..................6. Specifications..................7. Warranty....................
Page 3: Introduction
1. INTRODUCTION Thank you for purchasing this NPower power inverter, a high performance solution to using household power while on the road. Connected to a 12V volt outlet, the inverter efficiently and reliably supplies 110V/60Hz AC power for a wide variety of loads, such as TV sets, gaming systems, cell phones and portable entertainment devices.
Page 4: Features
Connect the unit to only to 12V DC power supplies (6V is too low, and 24V will damage the unit). Do not insert any foreign objects into the unit outlets, vents or fan openings. Do not expose the unit to rain, water or any other liquid. Do not connect the unit to any utility power distribution systems or branch circuits.
Page 5 1 Black terminal – negative DC power flow 2 Cooling Fan and Ventilation Openings - protects the inverter from over-heating. 3 Red terminal - positive DC power flow Fig. 2: Indicators 4 Green LED Indicator – indicates the inverter has power. 5 Red LED Indicator—...
Page 6: Connecting/Operating The Inverter
4. Connecting and operating the inverter When connecting the unit, please be sure to follow the guideline, cautions and warnings mentioned in this manual. The inverter should be connected to your vehicle’s 12 V battery with DC clamp cables or 12V cigarette lighter. No devices should be plugged into the inverter until the inverter is properly connected and the inverter’s power indicator is active.
Page 7 Please follow the following to connect your inverter with 12V cigarette lighter: 1) Attach the ring type connector marked with red to the red (+) DC terminal and the ring connector marked with black to the black (-) DC terminal on the inerter.
Page 8: Troubleshooting
Constantly operating the unit from a vehicle battery until the low voltage shut off will affect the life of the battery. If you are operating electrical products for extended periods of time, you should consider connecting the unit to a separate deep discharge battery.
Page 9 Appliances Appliance Power Avg Life on Std Consumption (Watts) Car Battery Household Battery Chargers 32.00 48.00 2 way Radios 5" LCD TV 48.00 BlackBerry 96.00 96.00 Wireless Mouse 240.00 Cordless Shaver 96.00 When using a vehicle battery as a power source, it is strongly recommended to start the vehicle every hour or two to recharge the battery before its capacity drops too low.
Page 10 PROBLEM CAUSE SOLUTION Battery is defective Replace battery No power, no Blown fuse Check and replace fuse indicator. Check the connection to Lose cable connections the battery. Tighten as required. AC products connected Reduce load. are rated at more than the Wattage load of the inverter;...
Page 11 PROBLEM CAUSE SOLUTION Inverter runs small Low voltage battery Charge the battery loads but not large ones. Disconnect the inverter and wipe immediately with Water entered Water entered the unit a dry cloth, or permanent damage can occur. Allow unit to cool. Improve air circulation around unit.
Page 12: Specifications
6. Specifications a) AC Power Output Model 400W AC output voltage 115V AC Continuous AC output power 400W Maximum AC output surge power 800W AC output frequency(nominal) 60Hz AC output waveform Modified sine wave b) USB Power Output DC output voltage 5V DC c) DC Power Specifications DC input voltage range...
Page 13: Warranty
NPower will repair or replace the defective product free of charge. Proof of purchase may be required. Warranty term is not extended if NPower repairs or replaces a product.
