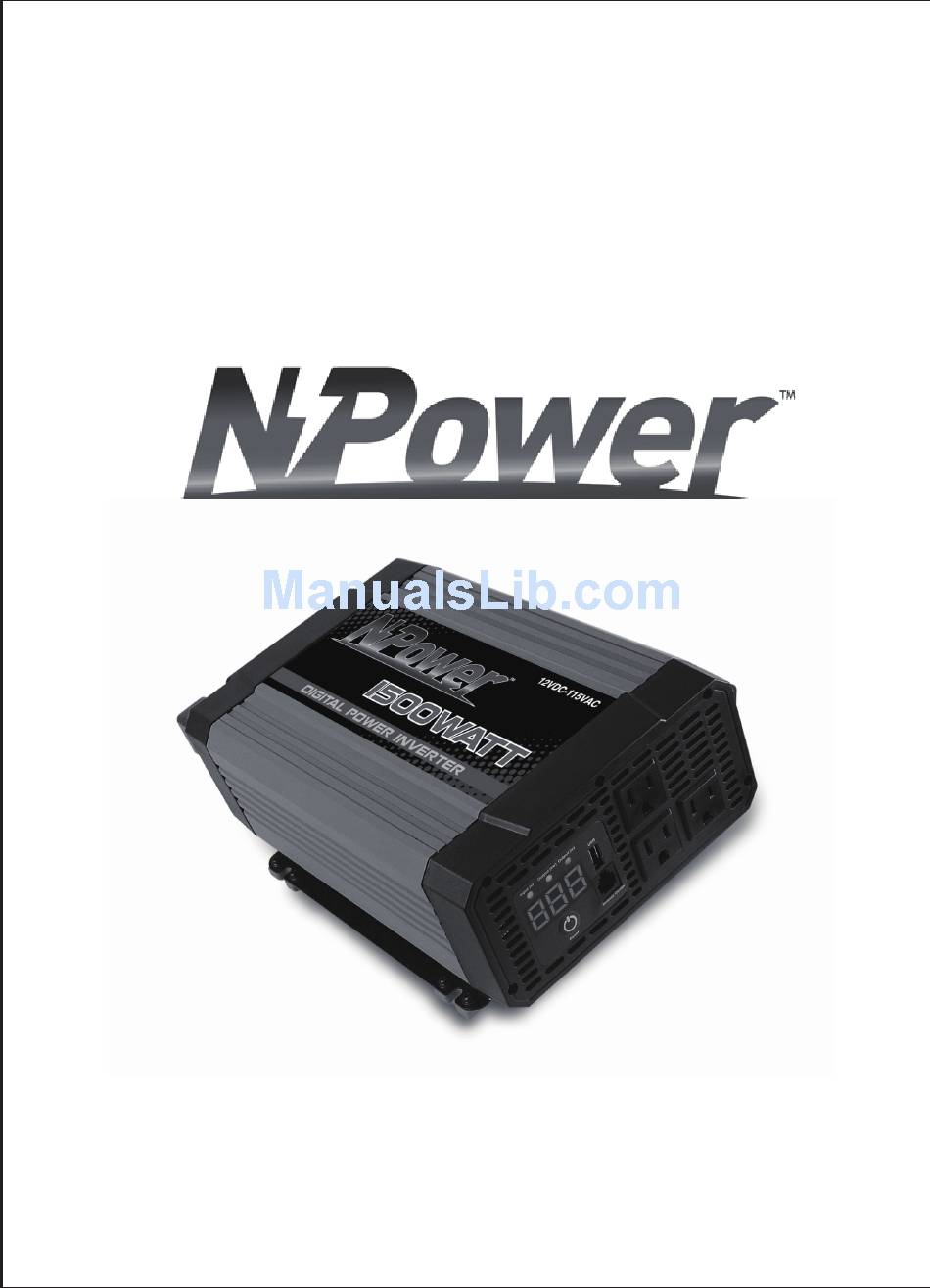

1500W Power Inverter
OWNER'S MANUAL

Model number-4572000

TO REDUCE THE RISK OF INJURY, USER MUST READ AND
UNDERSTAND THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS
IMPORTANT INFORMATION REGARDING THE OPERATION AND
WARRANTY OF THIS PRODUCT. PLEASE RETAIN FOR FUTURE
REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4572000 and is the answer not in the manual?

Questions and answers

Related Manuals for NPower 4572000

Summary of Contents for NPower 4572000

  • Page 1: Model Number

    1500W Power Inverter OWNER’S MANUAL Model number-4572000 TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING THE OPERATION AND WARRANTY OF THIS PRODUCT. PLEASE RETAIN FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    CONTENTS 1. Introduction....................2. Important Safety Information..............3. Protective Features................4. Features....................5. Installation....................6. Operating Instructions................7. Troubleshooting..................8. Specifications..................9. Warranty....................

  • Page 3: Introduction

    1. Introduction Thank you for purchasing the NPower 1500W Power Inverter, a high performance solution to use household power while on the road. Connected to the 12V volt output in your vehicle, the inverter efficiently and reliably supplies 110V/60Hz AC power with 1500W continuous output power for a wide variety of loads, such as all kinds of jacklights, TV sets, audio/video systems and electromotion tools with power consumption under 1500 watts.
  • Page 4 Warning The case to the unit may become very warm under high power operationreaching 140°F(60°C). Be sure that there is at least 2 (5cm) of unobstructed air space around the entire surface of the inverter at all times. During use, do not place materials that could be damaged by heat near the unit.

  • Page 5: Protective Features

    Certain battery chargers for battery packs used in hand power tools. These chargers will have a warning label indicating that dangerous voltages are present at the battery terminals. Caution Connect the unit to batteries with a normal output of 12V DC only. As 6V batteries voltage is too low, and a 24V battery voltage is too high which will damage the unit.

  • Page 6: Features

    increase of surrounding air temperature, the inverter will automatically shut down, and the digital display showing “LCP”. When the internal temperature drops below the surrounding air temperature, the inverter will automatically return to normal operation. Overload Shut Off When the starting power exceeds the rated power, the inverter will automatically shut down, and the digital display showing “OLP”.

  • Page 7: Installation

    1. Digital Readout—it indicates the power and DC voltages. The allowed power tolerance is 15% (with loads of over 200W), and the allowed voltage tolerance is +/-0.2V (no load). 2. Button Power Switch— Connect the inverter to the DC power and press down the button power switch, the AC power is available.
  • Page 8 Ambient air temperature should be between 32°F and104°F Cool (0°C~40°C) the cooler the better within this range . Leave at least 2” (5cm) of clearance around the unit for airflow. Ventilated Ensure that the ventilation openings are not obstructed. Do not operate the unit in the same compartment as batteries Safe or in any compartment capable of storing flammable liquids like gasoline.

  • Page 9: Operating Instructions

    2) Please make sure that the inverter is shut down. 3) Attach the ring type connector marked with red to the positive (+) DC terminal on the power inverter, and attach the ring connector marked with black to the negative (-) DC terminal. Caution Reversing the polarity will cause a blown fuse or damage to the inverter, which may also void the warranty.
  • Page 10 4) The unit will operate from input voltages ranging from 11.0 V to 14.0 V As the battery is used, its voltage begins to fall. When the inverter senses that the voltage at its DC input has dropped to the range of 10.7~11.3V DC, an audible alarm sounds.
  • Page 11 Caution Operating time will vary depending on the charge level of the battery, its capacity and the power level drawn by the particular AC load. With a typical vehicle battery and a 1500-watt load, an operating time of 1 hour or more can be expected.

  • Page 12: Troubleshooting

    7. Troubleshooting PROBLEM CAUSE SOLUTION Battery is defective Replace battery Blown fuse Check and replace fuse No power, no Check the connection indicator. to the battery. Tighten Lose cable connections as required. AC products connected are Reduce load, use a rated at more than 1500W;...
  • Page 13 Disconnect the inverter and wipe immediately Water entered Water entered the unit with a dry cloth, or permanent damage can occur with liquid ingress. Shorten cables or use heavier cables. Recharge battery. Allow unit to cool. Low voltage shutdown or Improve air circulation Alarm is sounding thermal shutdown has...

  • Page 14: Specifications

    8.Specifications Specifications are subject to change without notice. AC Power Output AC output voltage 105V~125V AC Maximum AC output power 1500W Maximum AC output surge power 3000W AC output frequency(nominal) 58~62Hz AC output waveform Modified sine wave USB Power Output AC output frequency(nominal) 5 V DC DC Power Specifications...

  • Page 15: Warranty

    NPower will repair or replace the defective product free of charge. Proof of purchase may be required. Warranty term is not extended if NPower repairs or replaces a product.
