Snell AMC 900THX Owner's Manual

Hide thumbs Also See for AMC 900THX:

Advertisement

Quick Links

Download this manual
Owner's Manual
AMC
900
THX
2000
THX

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMC 900THX and is the answer not in the manual?

Questions and answers

Related Manuals for Snell AMC 900THX

Summary of Contents for Snell AMC 900THX

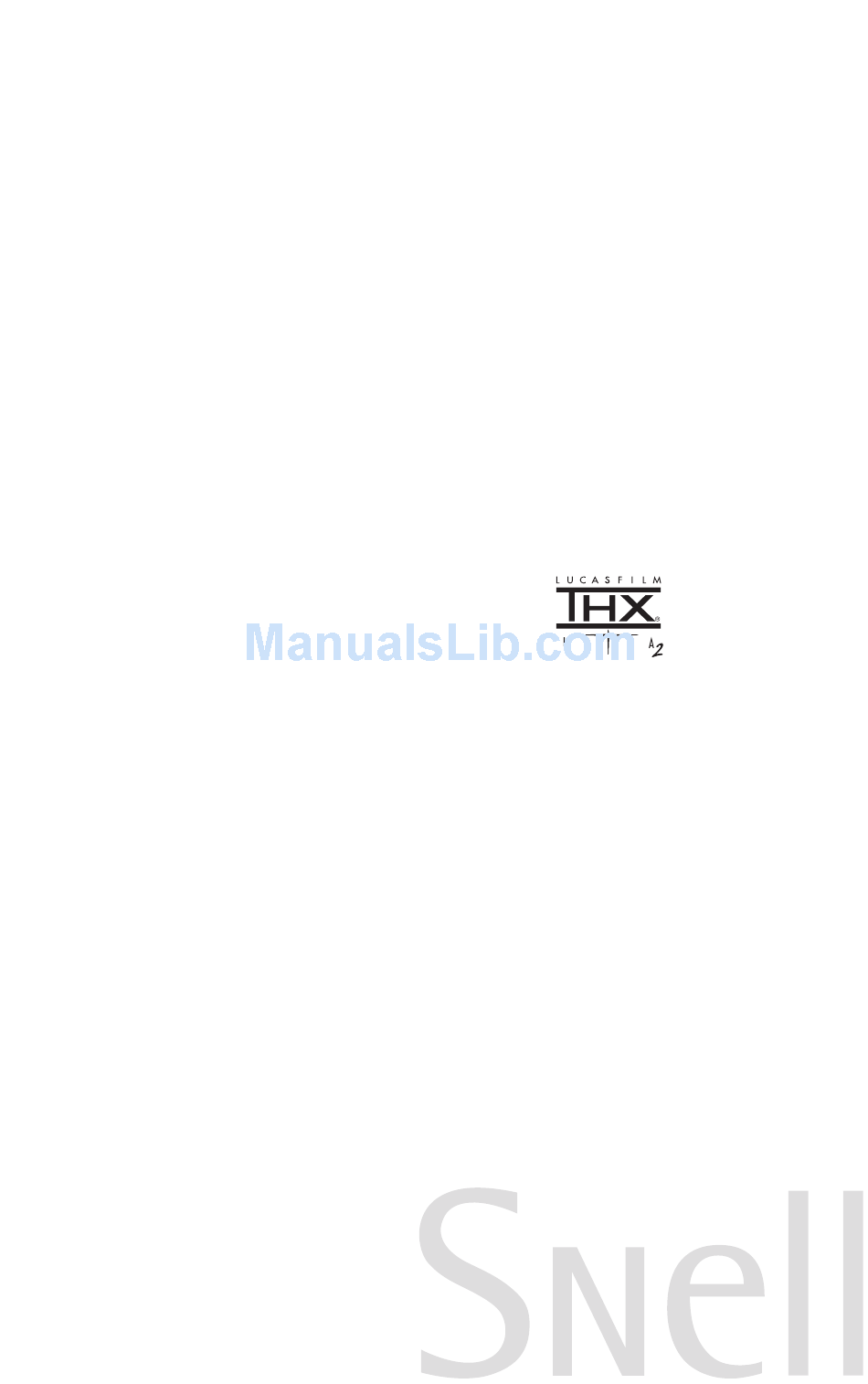

  • Page 1 Owner’s Manual 2000...

  • Page 2: Specifications

    SPECIFICATIONS AMC 900 Frequency Response (±3dB) 78 Hz-20 kHz Recommended Amplifier 10–150W Nominal Impedance 6 ohms Sensitivity (2.83v at 1m) 87dB SPL Tweeter(s) (2) 1” aluminum dome, ferrofluid cooling and heatsink. “Directed Power” waveguide in dipole configuration Midrange ” Midrange, edge-mounted in dipole configuration Bass Driver -inch (165mm) copolymer with butyl rubber surround Crossover Point...
  • Page 3 SPECIFICATIONS AMC 2000 Frequency Response (±3dB) 63 Hz-20 kHz Recommended Amplifier 75–250W Nominal Impedance 6 ohms Sensitivity (2.83v at 1m) 90dB SPL Tweeter(s) 1” aluminum dome with separate PVC surround and ferrofluid cooling Midrange 2 - 2 ” in separate enclosure Bass Driver 2 - 8-inch (203mm) copolymer with butyl rubber surround Crossover Point...
  • Page 4 INTRODUCTION: WHAT IS A HIGH END IN-WALL? The Snell AMC series units bring a novel approach to the design and construction of in-wall loudspeakers, expanding the boundaries of in-wall performance. Our primary goal was to develop loudspeakers that delivered performance that was as close as possible to that of our highly regarded freestanding loudspeakers, like the LCR7 and C7.
  • Page 5 PLACEMENT OF THE AMC 2000 A home theatre system includes three loudspeakers placed across the front of the listening room. The distance between the left and right speakers determines the width of the stereo image. If the speakers are placed too close together, the image will be too narrow; too far apart and the blend will suffer, creating a hole in the middle.
  • Page 6 PLACEMENT OF THE AMC 900 There are many opinions about where surround or “rear” speakers should be mounted. The following is based on the findings of the best academics, and on our experience with many installations. In a typical 5.1 surround system a dipole surround speaker, such as the AMC 900 , performs best when it is mounted directly to the sides of the listener plus or minus 15 degrees or so.

  • Page 7: Preparing For Installation

    When connecting more than two speakers per amplifier channel, you should use series/parallel wiring. In all cases, make certain that the total impedance does not fall below the amplifier’s rating. If you are not sure, contact your Snell Acoustics dealer. You will Need: 1) A utility knife, an electric jigsaw, or other means of cutting a hole in the mounting surface.
  • Page 8 5) Place the speaker into the rough opening and level it. 6) Tighten (drive clockwise) the screws that turn the mounting clamp dog and tighten them. Try to tighten each clamp the same amount, being careful not to over tighten them. See diagram below for details.

  • Page 9: Listening Levels And Power Handling

    LISTENING LEVELS AND POWER HANDLING The power recommendation for the system assumes you will operate the amplifier in a way that will not produce distortion. All speakers can be damaged by even a modest amplifier if it is producing distortion. If you hear a gritty noise or other signs of strain, turn down the volume. Prolonged or repeated operation of your speakers with a distorted signal can cause damage that is not covered by the warranty.

  • Page 10: Limited Warranty

    LIMITED WARRANTY For five years from the date of purchase, Snell Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the speaker system, without charge for parts and labor. Your responsibilities are to use the product according to the instructions supplied, to provide...
  • Page 12 300 Jubilee Drive, P.O. Box 3717 Peabody, MA 01961-3717 ©2007 Snell Acoustics. All Rights Reserved. phone: 978-538-6262 Specifications are subject to change without notice. fax: 978-538-6266 Covered by patents issued and/or pending. email: info@snellacoustics.com Part #542-1028 www.snellacoustics.com...
