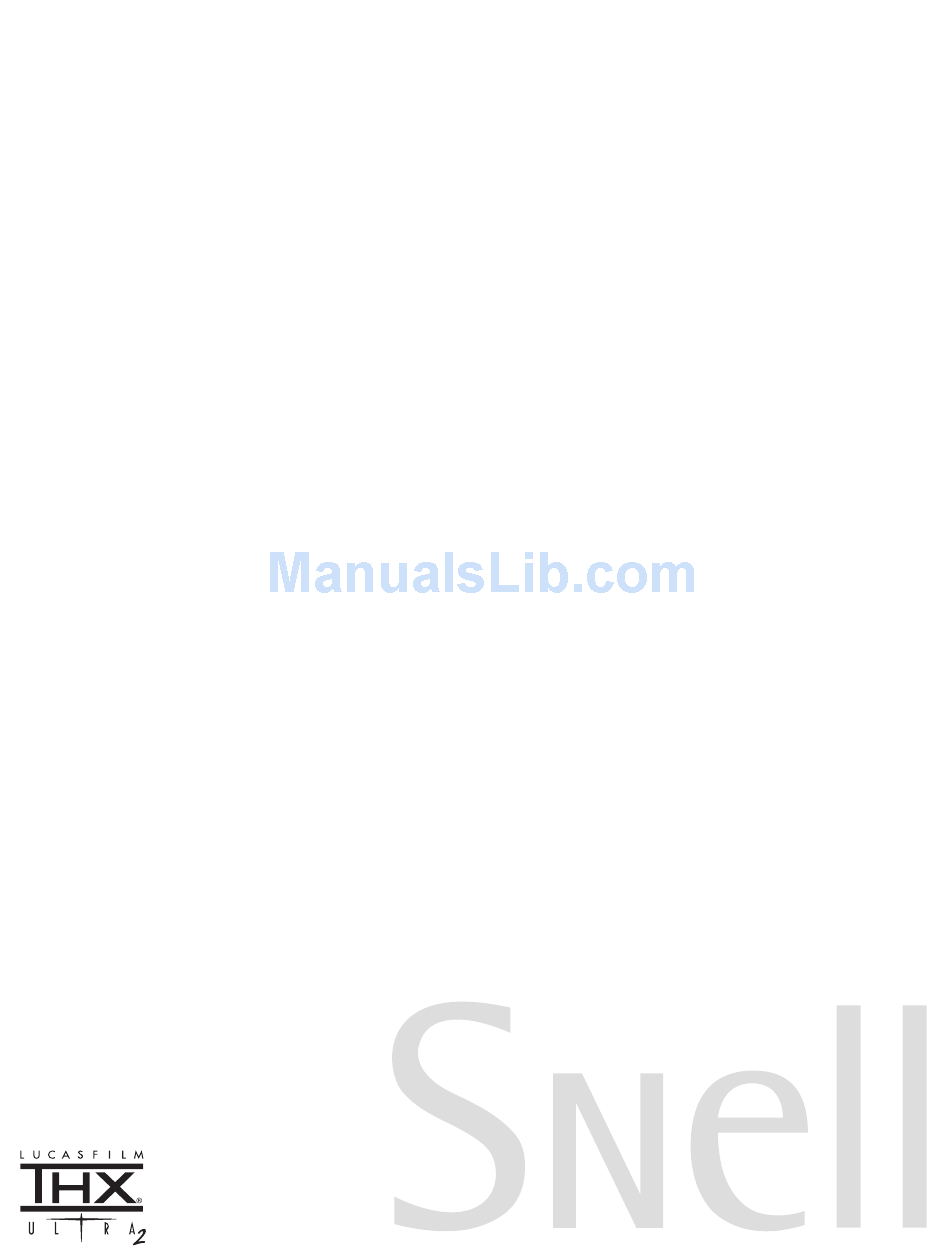

- Page 1 Surround Speaker System Owner’s Manual...
- Page 2 S P E C I F I C A T I O N S Frequency Range (-6dB) Frequency Response (±3dB) Recommended Amplifier Power Nominal Impedance Sensitivity (2.83v at 1m) High-Frequency Drivers Midrange Frequency Drivers Bass Unit Crossover Frequency Cabinet Construction Grilles Flush-Mounting Bracket Included Hardware...
- Page 3 S R 30 F E A T U R E S T H X Hand-tuned crossover Recessed side-firing tweeter for best diffuse sound Front-firing tweeter for best direct sound mode 6.5" (165mm) dual-voice coil bass unit Toggle switch for convenient surround mode selection Matrixed midranges for switchable direct/diffuse sound Input terminals with removable jumpers for easy...
- Page 4 Proper room placement is perhaps the most important factor contributing to home theater sound quality. Take a few minutes to place your speaker system correctly to ensure that it sounds provides its best. to perform in any...
- Page 5 H O W T O P L A C E Y O U R S R 3 0 Placement (cont.) Listening Room Placement Follow these guidelines for proper placement. (Refer to Ideal SR30 Placement diagram.) Height Place the surrounds at least 5 feet (1.5m) from the floor, yet 12 inches (30cm) from the ceiling.
- Page 6 W A L L M O U N T I N G Y O U R S R 3 0 The SR30 is mounted via a unique slide-on mounting plate. The plate is first screwed to the wall at the appropriate position and then the speaker slides down, firmly locking in place.
- Page 7 C O N N E C T I N G T H E S R 3 0 For Seven-Channel Applications Select the diffuse surround mode with the toggle switch. Remove the gold jumper bars from the inputs. Connect the two sets of speaker cable to the appropriate 7.1 channel inputs.
- Page 8 If you hear a gritty noise or other signs L I M I T E D W A R R A N T Y For five years from the date of purchase, Snell Acoustics will repair for the original owner any defect in materials or work- manship that occurs in normal use of the SR30 charge for parts and labor.
