Homeowner's Installation and Operating Manual
If this heater is not properly installed, operated, and maintained, a house
fire may result. For safety, follow all installation, operation and mainte-
nance directions. Contact local building officials about restrictions and
installation inspection requirements in your area.
DO NOT DISCARD THIS MANUAL: Retain for future use
SAFETY NOTICE
1219
Dutchwest
cover
Models 2463
3/05 djt
Convection
Heater
Model 2463
7001219 8/08 Rev. 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2463 and is the answer not in the manual?

Questions and answers

Related Manuals for DutchWest 2463

Summary of Contents for DutchWest 2463

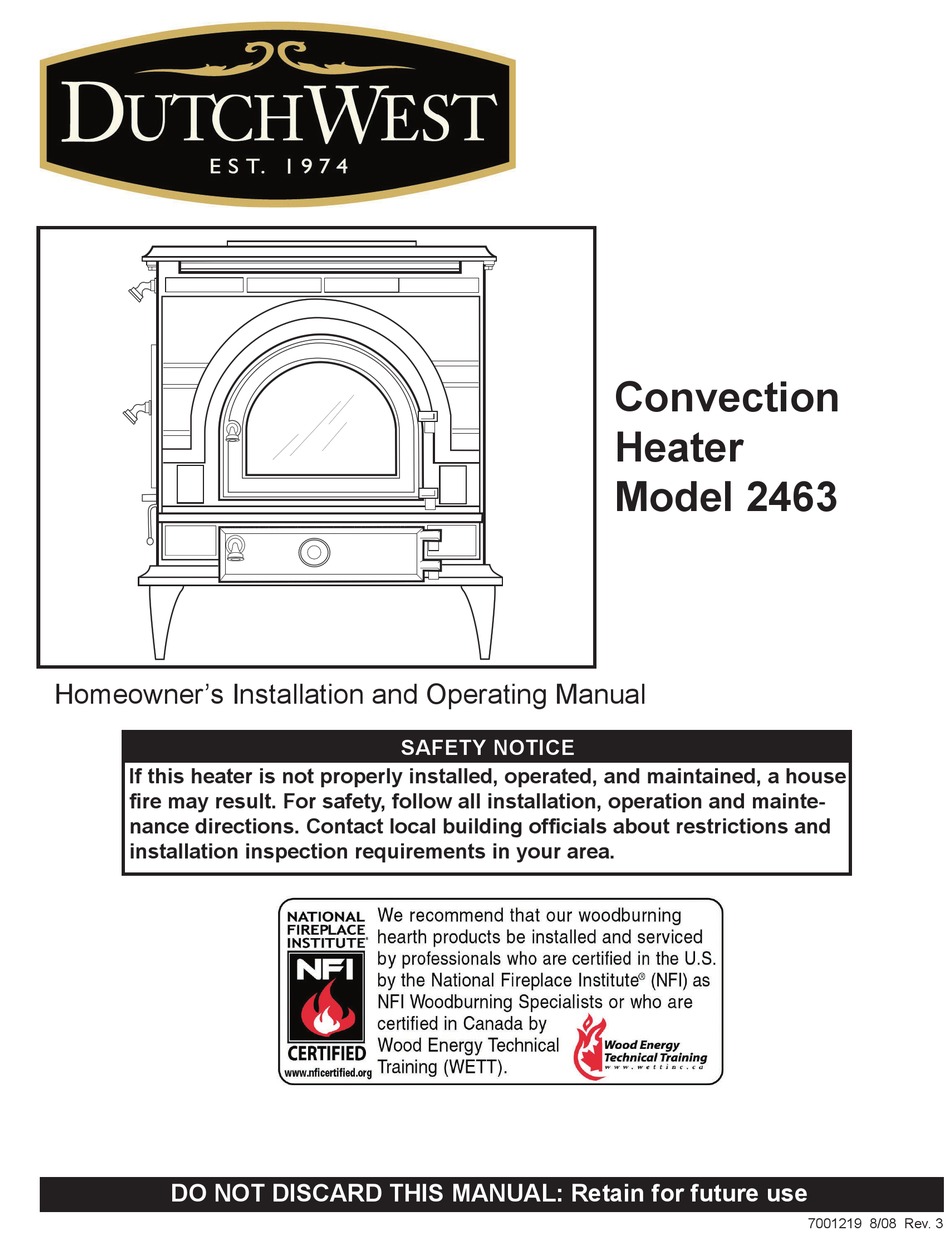

  • Page 1 Convection Heater Model 2463 Homeowner’s Installation and Operating Manual SAFETY NOTICE 1219 If this heater is not properly installed, operated, and maintained, a house fire may result. For safety, follow all installation, operation and mainte- Dutchwest nance directions. Contact local building officials about restrictions and cover installation inspection requirements in your area.
