DutchWest 2463 Installation And Operating Manual

Vermont convection heater 2463 user guide
Hide thumbs Also See for 2463:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Homeowner's Installation and Operating Manual

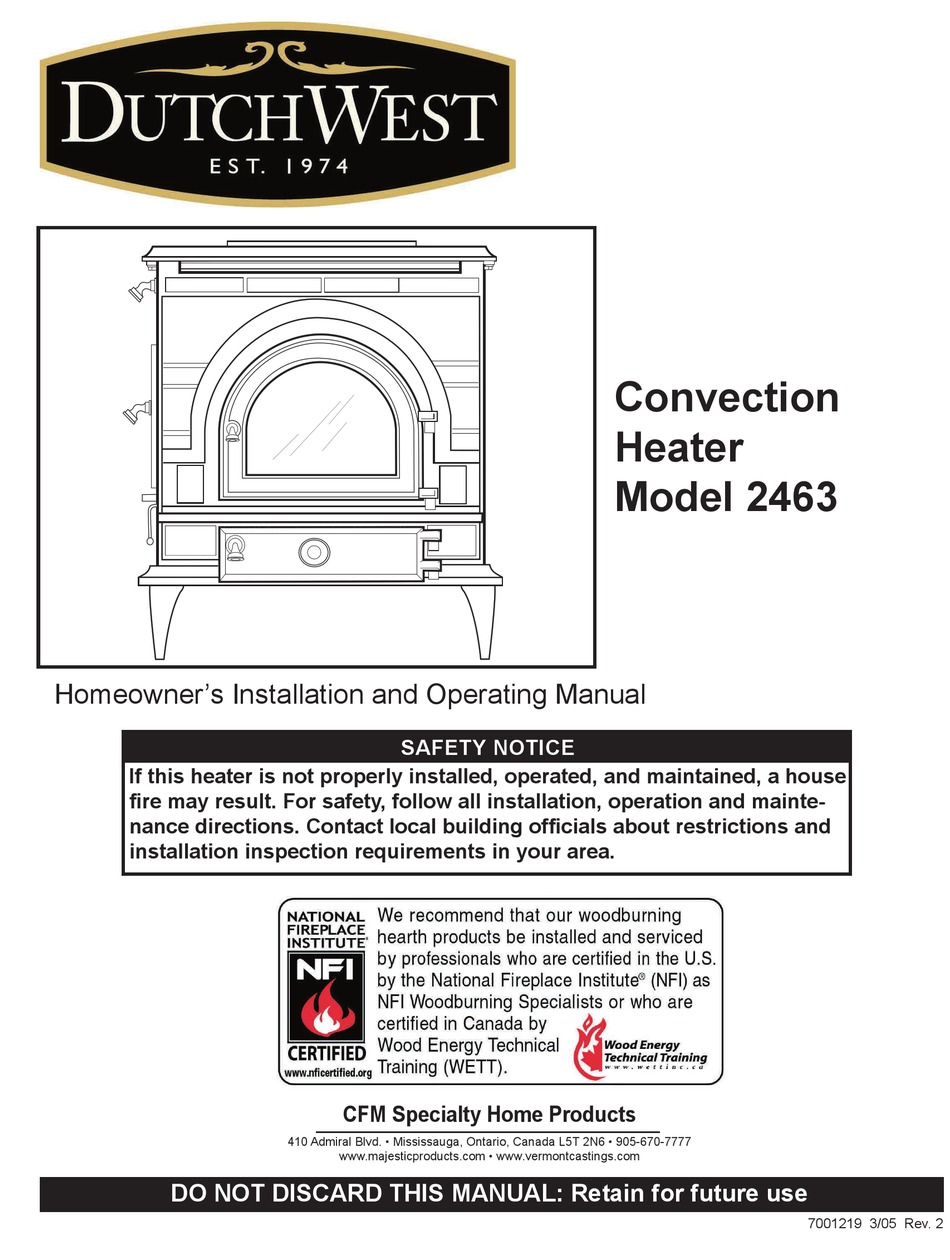

Homeowner's Installation and Operating Manual
If this heater is not properly installed, operated, and maintained, a house
fire may result. For safety, follow all installation, operation and mainte-
nance directions. Contact local building officials about restrictions and
installation inspection requirements in your area.
DO NOT DISCARD THIS MANUAL: Retain for future use
SAFETY NOTICE
1219
Dutchwest
cover
Models 2463
3/05 djt
CFM Specialty Home Products
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
Convection
Heater
Model 2463
7001219 3/05 Rev. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2463 and is the answer not in the manual?

Questions and answers

Related Manuals for DutchWest 2463

Summary of Contents for DutchWest 2463

  • Page 1 Contact local building officials about restrictions and cover installation inspection requirements in your area. Models 2463 3/05 djt 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 DO NOT DISCARD THIS MANUAL: Retain for future use...

  • Page 2: Table Of Contents

    Dutchwest Please read this entire manual berfore you install and use your new room heater. Failure to fol- low instructions may result in property damage, bodily injury or loss of life. Save these instruc- tions for future use. Table of Contents Specifications ...

  • Page 3: Specifications

    Dutchwest, Model 2463 Range of heat output ... 6,600 - 27,300 Btu’s/Hr Maximum heat output ... 35,000 Btu’s/Hr Average Area heated (ft ) ...700 - 1400 Maximum burn time ...8 hrs Loading ...Front or side Log length ... 19” (483 mm) Flue exit position ...

  • Page 4: Chimney Types

    Dutchwest SAFETY NOTICE: IF YOUR DUTCHWEST CON- VECTION HEATER IS NOT PROPERLY INSTALLED, OPERATED AND MAINTAINED, A HOUSE FIRE MAY RESULT. FOR SAFETY, FOLLOW ALL INSTALLA- TION, OPERATION AND MAINTENANCE DIREC- TIONS. CONTACT LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.

  • Page 5: Prefabricated Chimneys

    Chimney Size PTL2 4/1/96 The Model 2463 heater should be vented into a ma- sonry chimney with a square flue with nominal flue size of 8” x 8” (203 x 203 mm), or a round flue with nominal flue size of 6” (152 mm).

  • Page 6: Double-Wall Connector

    Dutchwest Do not use galvanized chimney connector; it cannot withstand the high temperatures that can be reached by smoke and exhaust gases and it may release toxic fumes under high heat. Double-Wall Connector Information on assembling and installing double-wall connectors is provided by the manufacturer of the double-wall pipe.

  • Page 7: Freestanding Installations

    Securing the Connector to a Masonry Chimney The Model 2463 may be connected to either a free- standing masonry chimney or a masonry fireplace chimney. Freestanding Installations If the chimney connector must pass through a combus- tible wall to reach the chimney, follow the recommenda- tions in the wall pass-through section that follows.

  • Page 8: Wall Pass-Throughs

    Dutchwest Fireplace Installations - Through the Fireplace The Model 2463 heater may be installed either without legs* as a fireplace insert, or with standard legs at- tached - depending on the safety regulations that apply to your situation, the height of the fireplace opening and your own preference.

  • Page 9: Floor Protection

    Floor Protection Freestanding Installations A constructional hearth should be provided of solid, noncombustible material at least 125 mm thick (which may include the thickness of any solid, noncombustible floor under a hearth) and at least 33” (838 mm) deep by 40” (1016 mm) wide. Note that at these minimum dimensions, the stove will be offset toward the right side of the hearth (as you face it) to maintain proper protec- tion beyond the side loading door.

  • Page 10: Clearances

    The charts and sample installations that follow list all the clearances required for the various installation configurations of Dutchwest Convection Heaters Model 2463. ST424 Fig. 14 Extra floor protection may be required for the fire- place hearth, even if your stove is installed with the legs and the bottom heat shield.
  • Page 11 Refer to the diagrams below when using the Stove and Chimney Connector Clearance Chart which follows. For ex- ample, the letter “A” gives the minimum side clearance for installations in which the stove is not equipped with a rear heat shield and the wall beside the stove is not protected. “D” gives the minimum side clearance when the stove does not have a rear heat shield, but the wall is protected.
  • Page 12 Dutchwest Stove and Chimney Connector Clearance Charts No heat shields (559 mm) Rear exit, rear h.s. (559 mm) Top exit , rear h.s. single-wall connector (559 mm) No connector h.s. Top exit , rear h.s. single-wall connector (559 mm) with connector h.s. Top exit , rear h.s.
  • Page 13 Distance from Center of Flue Collar to Wall in Top-Exit Installations Dutchwest Convection Heaters equipped with rear heat shields NOTE: These are not clearance distances. These measurements indicate where the centerline of the flue collar will be for various installations. Measurements are from the centerline of the flue collar to the wall, not the wall protector. Double-wall Chimney Connector (838 mm)
  • Page 14 Dutchwest DutchWest Convection Heaters, Model 2463 48” (1219 mm) Rear Exit ST428 Fig. 16 Rear wall protection. ST428 rear wall protection 7/00 Wall Shields Meet at Corner ST430 Fig. 18 Corner wall protection. Wall Heat Shield Dimensions 60” (1524mm) Top Exit...

  • Page 15: Unpack The Parts

    Your convection heater requires some assembly. Follow the directions carefully and refer to the parts diagram at the back of this manual. Unpack the Parts Remove all loose parts from the firebox and the ash pan. Check to make sure all the parts are included and intact.

  • Page 16: Operation

    Dutchwest Heater Controls and Features Air Controls The Dutchwest Convection Heater has two air controls that regulate the amount of air drawn into the stove. Generally, more air entering the stove allows the fire to burn hotter and faster, while less air decreases heat output while prolonging the overall burn time.
  • Page 17 Damper Function The Damper is operated by moving the handle on the upper left side of the stove. (Fig. 23) It has two positions: OPEN, to start the fire and load fuel, and CLOSED, for greatest efficiency and heat. When the damper is closed, exhaust gases pass through an insu- lated catalytic burner before flowing into the chimney.
  • Page 18 The “Inactive”, “Normal”, and “Hot” temperature range demarcations do not have function significance on the Dutchwest Model 2463. Normal operating temperatures will range within 500°F - 700°F from a well-established fire. DO NOT OPERATE THE STOVE WITH THE ASH DOOR OPEN.

  • Page 19: Lighting The Fire

    Break-in Fires If your stove is new or has new cast iron replacement parts, “season” the new cast iron with a few break-in fires. Follow Steps 1-3 below. Then let the fire burn out. Do not close the damper. Maintain a small, but not smoky, fire by adjusting the primary air control.
  • Page 20 Dutchwest Safe Ash Handling Ash may contain hot coals and must be treated with extreme care. Ashes should be placed outdoors in a metal container with a tight-fitting lid. The closed con- tainer of ashes should be placed on a noncombustible floor or on the ground, well away from all combustible materials, pending final disposal.

  • Page 21: Cleaning The Glass

    Keep Your Stove Looking New and Working Its Best Care of the Cast Iron Surface An occasional dusting with a dry rag will keep the painted cast iron of your Dutchwest Convection Heater looking new. If the paint needs retouching, allow the stove to cool completely.

  • Page 22: Damper Adjustment

    Dutchwest 3. Apply a thin bead of stove cement in the newly- cleaned groove. 4. Lay the gasket into the groove. Wait until you are a couple inches from the end before you cut it. 5. Test the gasket by closing the door on a slip of paper as described above.

  • Page 23: Cleaning The Chimney System

    Cleaning the Chimney System The chimney system is composed of the chimney and the pipe that connects the stove to the chimney. Inspect the chimney and chimney connector at least twice monthly, and clean if necessary. When you first begin using the stove, check daily for creosote —...
  • Page 24 Dutchwest The Chimney Connector TWO WEEKS: • Inspect the chimney connector and chimney. Clean if necessary. TWO MONTHS: • Inspect the chimney and chimney connector. Pay particular attention to the horizontal runs of chim- ney connector, and the elbows. Clean the system if necessary.

  • Page 25: Draft Management

    Your stove is only one part of a system that includes the chimney, the operator, the fuel, and the home. The other parts of the system will affect how well the stove works. When there is a good match between all the parts, the sys- tem works well.
  • Page 26 Dutchwest Single Venting Your stove requires a dedicated flue. Do not connect the stove to a flue used by any other appliance. Chimney draft is a natural form of energy and follows the path of least resistance. If the stove is vented to a flue that also serves an open fireplace or another appliance, the draft will also pull air in through those avenues.
  • Page 27 CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Dutchwest Convection Heater Model 2463 7001219 1219 Dutchwest 2463 parts 3/05 Dutchwest 1135...
  • Page 28 Dutchwest Dutchwest Convection Heater Model 2463 (continued) Item/Description Bottom Back II Inner Bottom Back II, Inner Inner Top Web, Inner Top Inner Top Channel Cap Air Distributor Baffle Side, Right Side, Left Door, Side Sm Load Door Handle (2) Door Pawl (3)
  • Page 29 Dutchwest 7001219...
  • Page 30 Dutchwest 7001219...

  • Page 31: Limited 3 Year Warranty

    Warranty Limited 3 Year Warranty CFM Specialty Home Products warrants that this woodburning stove will be free of defects in material and workmanship for a period of three years from the date you receive it, except that the catalyst, thermostat assembly, handles, glass door panels, cement, and gasketing shall be warranted as described below.
  • Page 32 CFM Specialty Home Products 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 www.majesticproducts.com • www.vermontcastings.com...
