Parts List - Sanyo CDP-MT500 Service Manual

Compact disc player with tuner and mp3 decoder
Hide thumbs Also See for CDP-MT500:

Advertisement

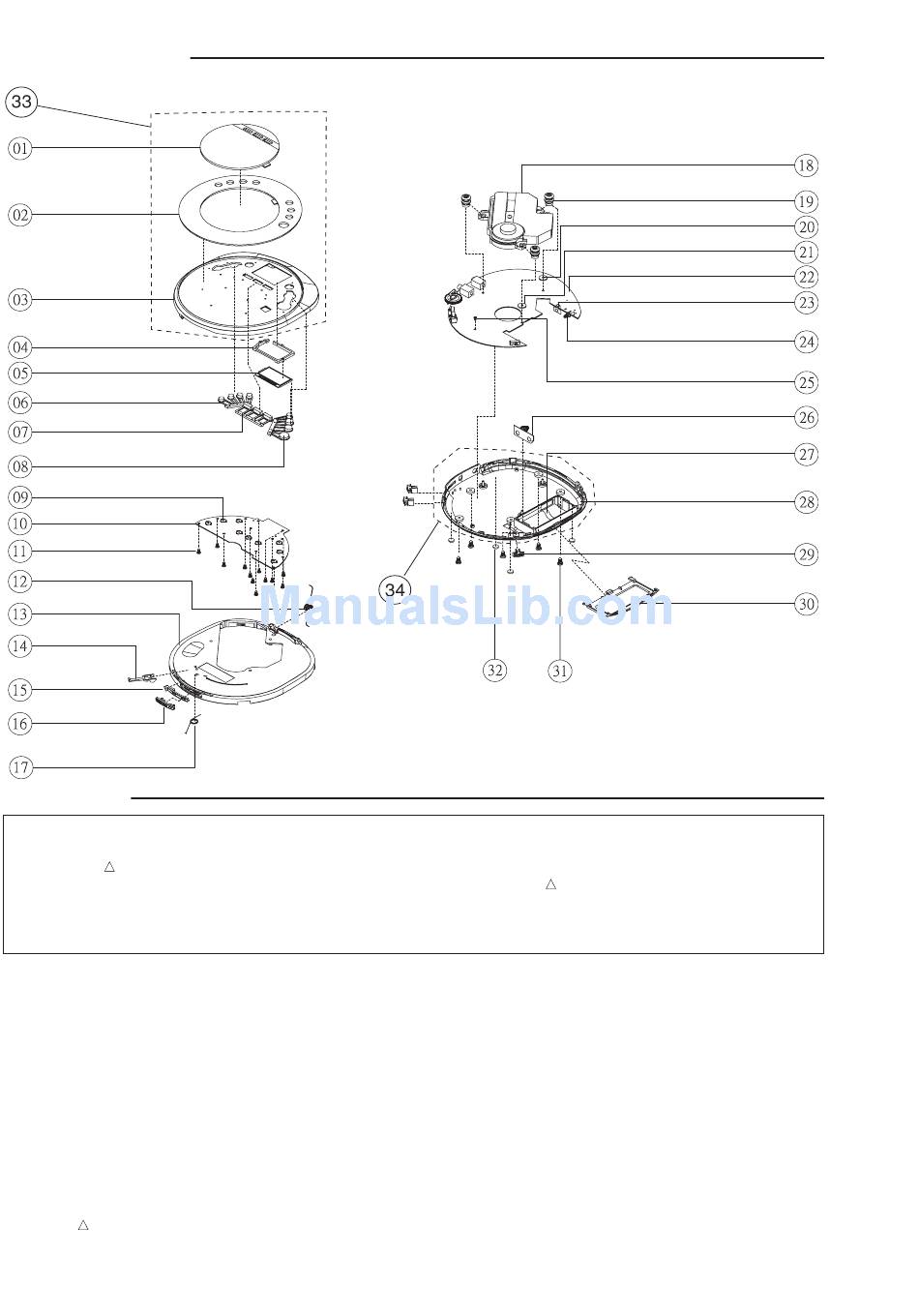

EXPLODED VIEW

PARTS LIST

EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL
IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY CAN
! ! !
BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY
DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE DESIGNATED IN
THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE
THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT TO
CAUTION :
Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon and chip type and 0 ohm chip resistors.
Regular type capacitors are less than 50V and less than 1000µF of Ceramic and chip type and Electrolytic type.
PACKING & ACCESSORIES
REF.NO.
PART NO.
645 069 6015 QUICK GUIDE
645 069 6022 INSTRUCTION MANUAL
645 069 6039 CARTON INNER
645 031 1703 POLYBAG,IB
645 037 1066 POLY BAG,REMOCON
645 031 1710 POLYBAG,AC ADAPTOR
645 033 2999 EPE FOAM BAG,UNIT
645 036 6031 AC ADAPTOR CARD BOARD
645 069 6084 CARTON OUTER
645 065 2769 ADAPTOR AC,DC,CE
! ! !
645 037 5149 ST EARPHONE,CBX15
645 069 5803 REMOTE WIRE
PRODUCT SAFETY NOTICE
DESCRIPTION
, USE ONLY THE REPLACEMENT PARTS
! ! !
CABINET , CHASSIS & FIXING PARTS
REF.NO.
PART NO.
1
645 069 5988 CD DOOR COVER,0370MT500930AA
2
645 069 5971 DISPLAY LENS,0370MT500480AA
3
645 069 5926 CD DOOR,037T100XE700AB
4
645 069 5964 LCD BRACKET,0370MT500241AA
5
645 069 6091 LCD DISPLAY,
6
645 069 6107 KNOB MODE,PROG,
7
645 065 6521 BUTTON PRESET,082T100XE100AA
8
645 069 6114 KNOB PLAY,POWER,SKIP,
11
645 065 2950 SCREW 1.4X3,
- 3 -
DESCRIPTION
071GX1202B2SHN6G LCD601
0820MT500870AA
0820MT500900AA
CTL PCB TO TOP CAB
