Hafler Pro5000 Professional Power Amplifier
INSTALLATION
Please refer to this serial
number in all communications
regarding this equipment.
OPERATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hafler PRO5000

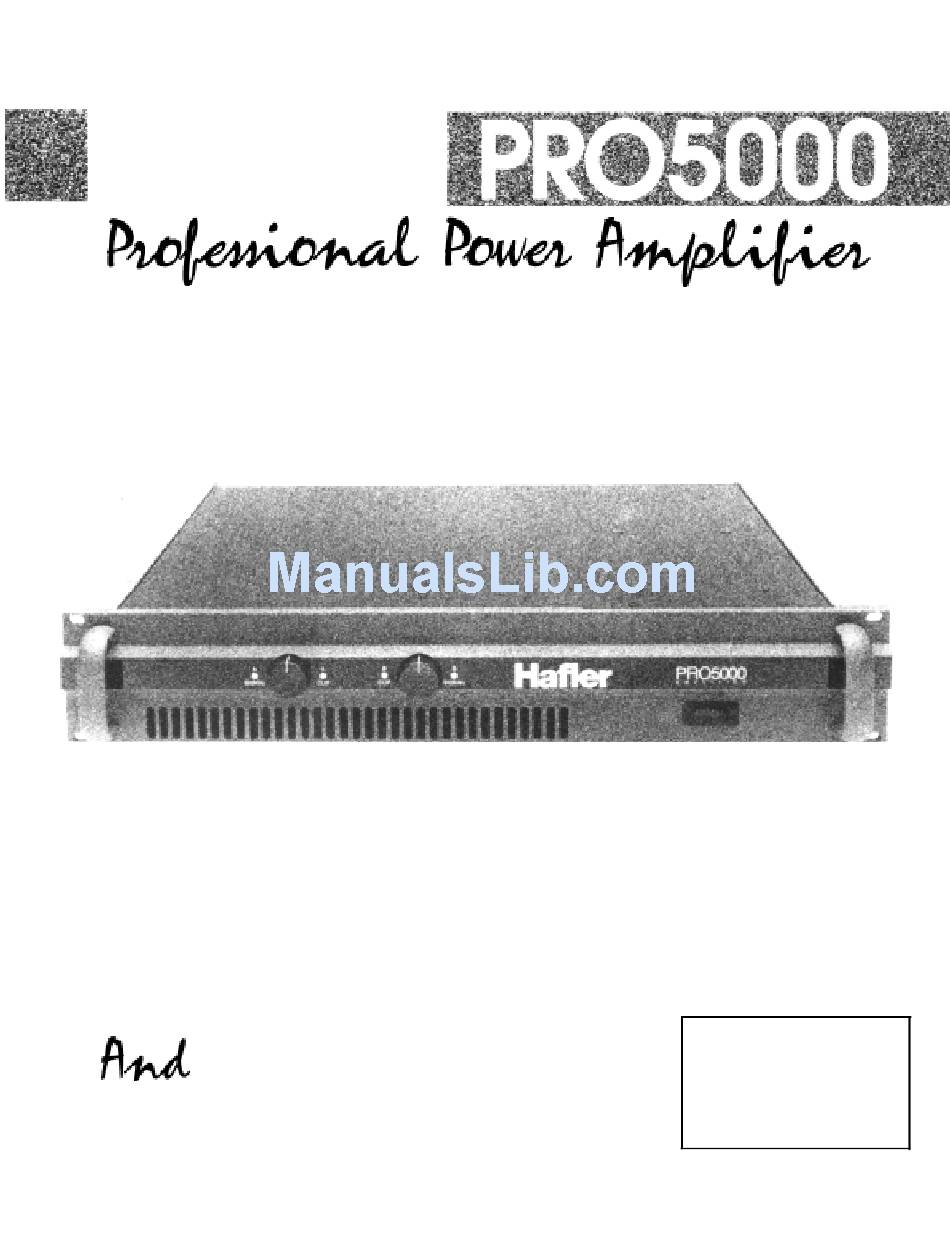

  • Page 1 Hafler Hafler Pro5000 Professional Power Amplifier INSTALLATION Please refer to this serial number in all communications regarding this equipment. OPERATION...
  • Page 2: Specifications

    SPECIFICATIONS INTRODUCTION The Hafler PRO5000 is a high power, low profile, two 8 OHM POWER RATING: 325 watts continuous aver- channel power amplifier intended for professional sound age power per channel at less than .025% total harmonic installations. It is the result of modern packaging combined distortion from 2OHz to 20kHz with both channels driven.
  • Page 3: Safety Instructions

    Safety Instructions Read Instructions Grounding and Polarization AII the safety and operating instructions of your Hafler The power supply cord is of a polarized type designed to reduce the risk of electric shock sustained from a live equipment should be read before power is applied to the equipment.
  • Page 4 Carts Stands Outdoor Antenna Grounding The equipment should be used only with a cart or stand If an outside antenna is to be used with the HafIer Tuner, of sufficient strength and stability for the use intended. be sure that the antenna system is grounded so as to provide some protection against voltage surges and built An equipment and cart combination should be moved up static charges.
  • Page 5: Installation

    2” intervals or alternatively the unit may be stacked. NOTE: connected to a properly grounded (earthed) AC receptacle When rack mounting the PRO5000, the rear of the amplifier for safety. Do not break off the ground pin on the plug to must be fastened to the rack via the rear mounting holes to avoid using the proper adapter for 2-wire receptacles.
  • Page 6: Operation

    GAIN CONTROLS: You must be sure that the ground or shield connection from such a device goes to a black terminal on the PRO5000. The gain controls for each channel are precision potenti- ometers, designed for very low distortion. Unless there is a...
  • Page 7: Chassis Parts List

    O U T P U T S I G N A L CLIP D E T E C T O R c CHASSIS PARTS LIST DESIGNATOR PART DESCRIPTION PART # T201 Transformer TT-PRO5000 TT-PRO5000 DB201 SSH-609 Diode Bridge SSH-609 F201 FS-010 10A Fuse FS-010...
  • Page 10 PARTS LIST PRO 5000 PRO 5000 PARTS LIST DESIGNATOR: “B” Channel (“A” Channel) DESIGNATOR PART DESCRIPTION PART # DESIGNATOR PART DESCRIPTION PART # Unused number (Rl4) 270 Ohm, 1/4w, 5% C l 9 (C2) 330 pfd, Polypropylene CPP-331 1000 Ohm, 114~~ 5% (C3) 10 pfd Dipped MIca CM-100...
  • Page 11 THERMAL PROTECTION: FACTORY SERVICE AND LIMITED The PRO5000 is equipped with a unique protection system WARRANTY that continually monitors the temperature of the output devices and takes corrective action to prevent damage to If you encounter any difficulty or have any questions the amplifier as a result of overheating.
