TRANSPORT

4
A lift truck is suited for transporting the unit on a level
surface. If the heat pump needs to be transported
on an uneven surface or carried up or down stairs,
carrying straps may be used for this type of transport.
These straps may be passed directly underneath
the wooden pallet.
CAUTION!
The heat pump is not secured to the
wooden pallet.
CAUTION!
The heat pump must not be tilted
more than max. 45
For lifting the unit without pallet, the holes provided
in the sides of the frame should be used. The side
panel assemblies must be removed for this
purpose. Any ordinary pipe can be used as a carrying
aid.
CAUTION!
Do not lift unit using the holes provided
in the panel assemblies!
°
(in either direction).
5

INSTALLATION

5.1 General Information

As a rule, the unit must be installed indoors on a
level, smooth and horizontal surface. The entire base
frame should thereby make close contact with the
surface in order to ensure adequate sound
insulation. Failing this, additional sound insulation
measures may become necessary.

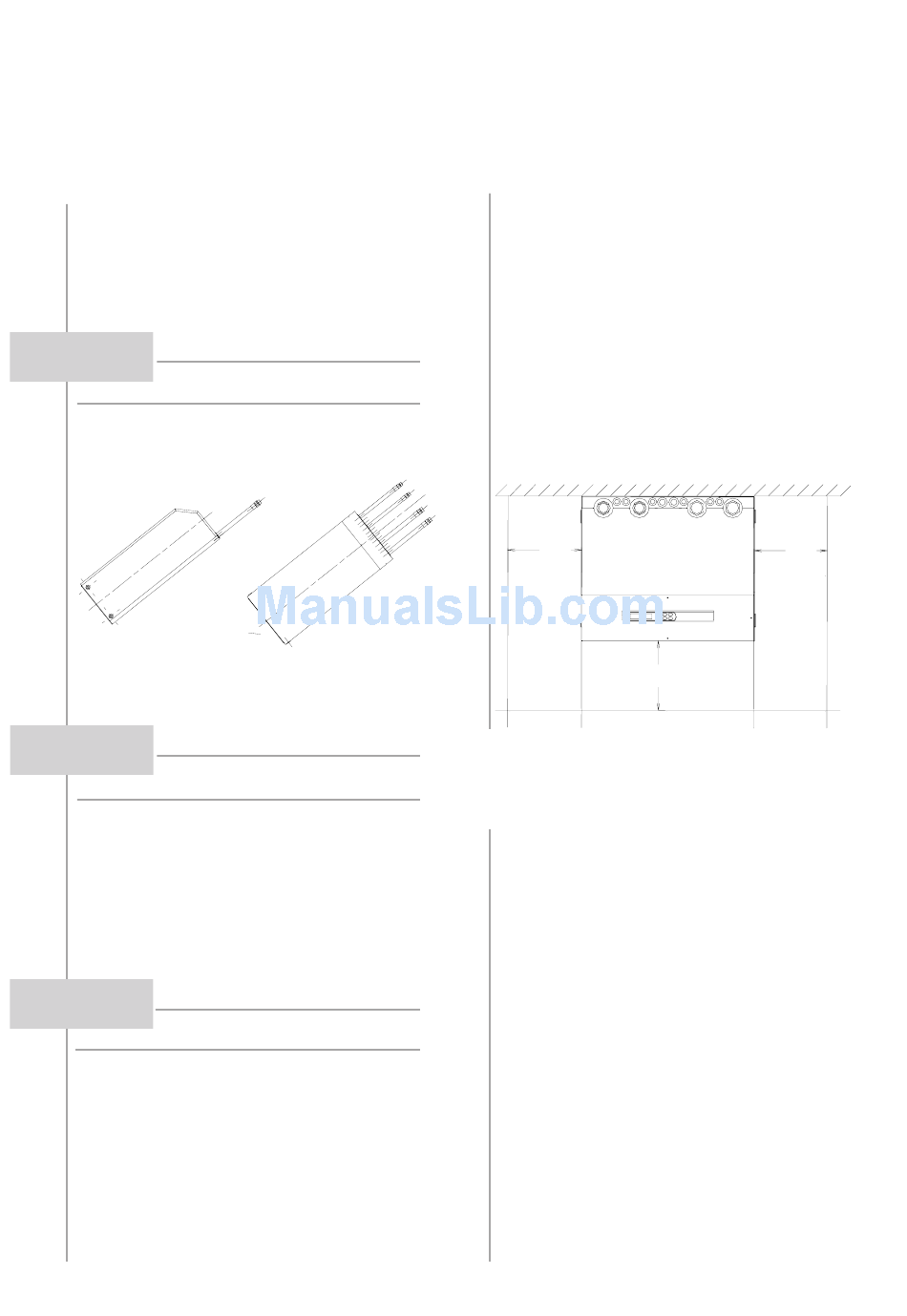

The heat pump should be located to allow safe and
easy maintenance/service access. This is ensured
if a clearance of approx. 1 m in front of and to each
side of the heat pump is maintained.
1 m

5.2 Sound Emissions

The heat pump offers silent operation due to efficient
sound insulation. To prevent noise transmission to
the foundation, a suitable, sound dampening rubber
mat should be placed underneath the base frame
of the heat pump.
The transmission of noise to the heating system
is prevented by pressure hoses already integrated
into the heat pump.
5
TRANSPORT
MOUNTING
1 m
1 m
