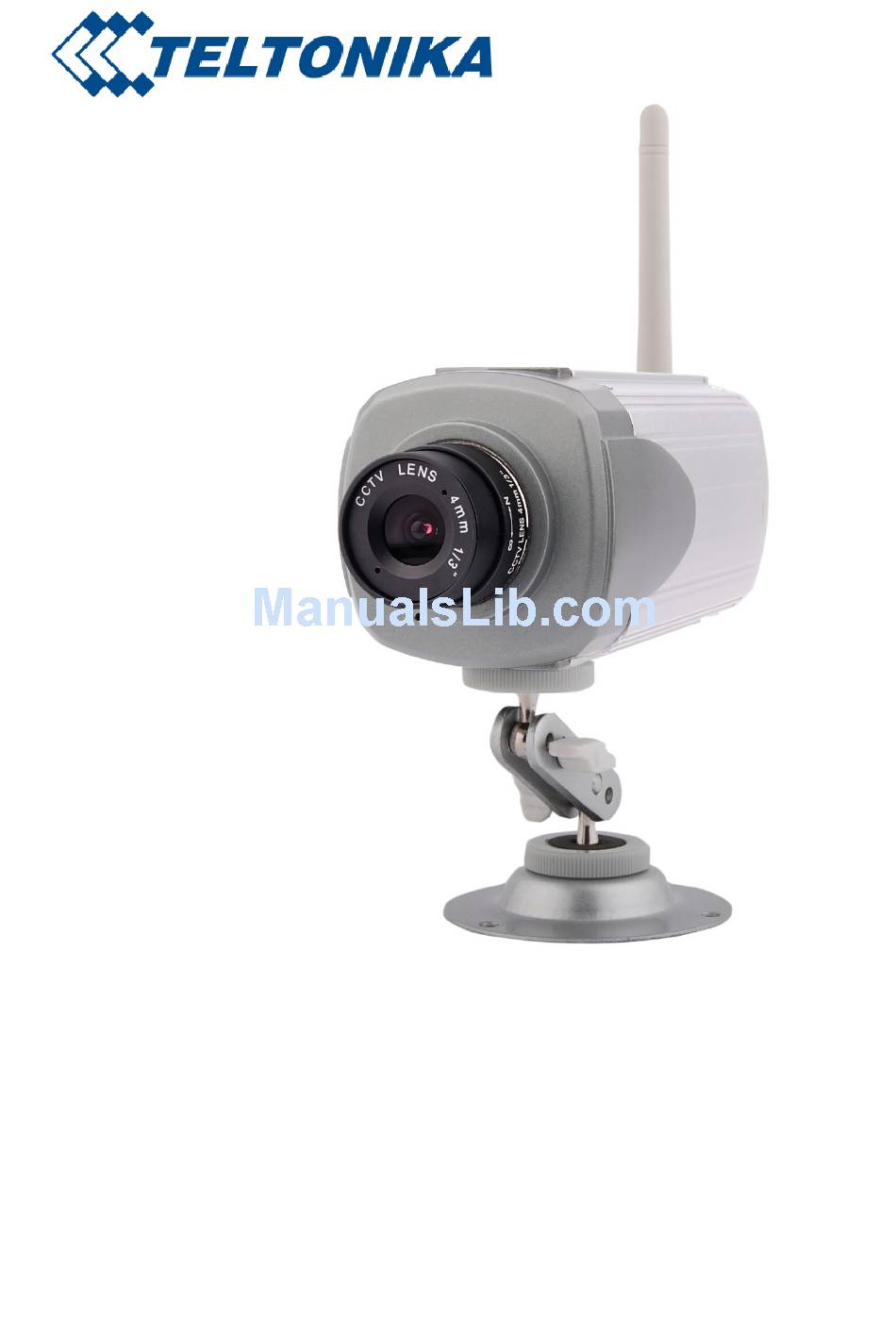

TELTONIKA
EDGE camera (MVC100)
User's Manual 1.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVC100 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika MVC100

Summary of Contents for Teltonika MVC100

  • Page 1 TELTONIKA EDGE camera (MVC100) User’s Manual 1.11...

  • Page 2: Legal Notice

    LEGAL NOTICE Copyright © 2009 TELTONIKA Ltd. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of TELTONIKA Ltd is prohibited. Other product and company names mentioned herein may be trademarks or trade names of their respective owners.
  • Page 3 ACRONYMS AC/DC Alternating Current/Direct Current Access Point Name Camera connection tool Compact disc CHAP Challenge Handshake Authentication Protocol DDNS Dynamic Domain Name System Domain Name System EDGE Enhanced Data rates for GSM Evolution File Transfer Protocol Ground GPIO General Purpose Input Output GPRS General Packet Radio Service Global System for Mobile communications...

  • Page 4: Table Of Contents

    Table of Contents SAFETY INFORMATION ..............................5 GETTING STARTED .............................. 7 ................................. 7 NTRODUCTION ..............................7 ACKAGE CONTENTS ............................7 NSTALLING THE HARDWARE 1.3.1 Inserting SIM card ............................7 1.3.2 Attaching antenna ............................8 1.3.3 Back panel overview ............................ 8 1.3.4 2-pin terminal block ............................

  • Page 5: Safety Information

    SAFETY INFORMATION In this document you will be instructed how to use camera safely to avoid any damage to person or property. You have to be familiar with the safety requirements before starting to use the device! Camera is used for transmission of video and single images via GSM network using GPRS and EDGE technologies.
  • Page 6 Protection against over currents, short circuits and earth faults an additional two-pole disconnect device shall be provided as a part of building installation. This protection device shall have adequate breaking capacity to interrupt the maximum fault current which can flow and shall have a contact separation of at least 3 mm.

  • Page 7: Getting Started

    GPRS/EDGE network. In places with no land line Internet available MVC100 is ideal for remote surveillance and monitoring of temporary or distant sites or mobile assets. The images can be acquired automatically with programmable period and/or upon external triggers such as motion sensors or door contacts.

  • Page 8: Attaching Antenna

    Insert the SIM card into the holder with the metal contacts facing the SIM connector side. Ensure that the „cut-off‟ corner is at the bottom right as in figure above. After the SIM card is inserted attach the panel to its previous position. 1.3.2 Attaching antenna Screw the antenna in a clockwise direction.

  • Page 9: 2-Pin Terminal Block

    1.3.4 2-pin terminal block Internally 2-pin terminal block is connected to relay inside the camera (refer to Fig. 2.). The connector may be used for connecting external light, which may be turned on, on event. Normally relay contact stays open. On event for the predefined period of time contact may be closed causing to turn on the light.

  • Page 10: Camera Access Software And Drivers

    Insert the CD supplied with the camera into CD-ROM drive of your PC. The CD will start up automatically opening installation window. If the window does not appear, run setup.exe file located in the CD. Follow the instructions to install drivers and software for the MVC100. Step 1 Click Install...

  • Page 11: Connecting To The Edge Camera With Camera Connection Tool (Cct)

    2. Connect power supply to the camera, then connect camera to the USB. 3. Wait for power and ready LEDs to lights up. 4. Start CCT (Camera Connection Tool). To start it go to: Start => Programs => Teltonika => MVC100 Camera => Camera Connection Tool 5. Click Connect button. 11 |...

  • Page 12: Notes For Using Camera Connection Tool (Cct)

    CCT, open Start ->Control Panel ->System->Hardware->Device Manager, expand “Modems”, right-click on “Teltonika Camera” and uninstall it. Unplug the power supply and the USB cable from the camera. Then connect the camera to the PC and make connection using CCT again.

  • Page 13: Accessing The Camera

    1.5 Accessing the Camera 1.5.1 Accessing WEB interface To access camera‟s WEB interface connect to the camera using CCT tool. After successful connection open the Web browser and type the camera IP address (http://10.0.0.1). If the camera port was changed from default port 80 to another value the IP address must be written in from http://10.0.0.1:1010 (Value 1010 is new port).

  • Page 14: Setting Camera's Gsm Connection

    1.6 Setting camera’s GSM connection To set up the GSM connection SIM card is required. SIM card is not supplied with the camera. It may be purchased from GSM service provider. To set up the connection the following information from your GSM provider is required: 1.

  • Page 15: Accessing Camera From The Web

    1.7 Accessing Camera from the WEB There are two ways to connect the EDGE camera from internet: 1. Use SIM card with public static IP address 2. Use SIM card with public dynamic IP address witch will be linked to static hostname using DDNS service.

  • Page 16: Edge Camera Configuration

    2 EDGE CAMERA CONFIGURATION 2.1 Status & Review 2.1.1 Live view The live view section allows watching video in real time within the camera WEB interface. Also it contains important status information. The status information view is shown in Fig. 7. Figure 7.

  • Page 17: Playback

    Many security applications require recording the video or snapshots that may be reviewed later. The MVC100 allows not only sending media content over internet to distant FTP servers or to emails but also to record it locally in the internal Cameras memory or to the SD card.

  • Page 18: Video And Image Settings

    Figure 11. MPEG4 playback window If the MPEG4 video file doesn't play, MPEG4 codec must be installed from the supplied CD. How to install the codec please refer to Appendix A Installing MPEG4 codec for the PC. 2.2 Video and image settings 2.2.1 Video parameters Video parameters may be used to get clear video display.

  • Page 19: Event Configuration

    2.3 Event configuration 2.3.1 Stream & Events Camera may be configured to record a constant video stream or make a record triggered by event. A common event type is an alarm on connected external sensor to camera that causes the camera to upload images.
  • Page 20 2.3.1.2 On event stream Figure 14. Event video stream settings. Enable – Check the box to enable stream on event feature. Events – Select desired events which will trigger the camera. Event trigger can be: Contact1, Contact2 which are located on the back panel of the camera. Connect external sensors (e.g. door, PIR) to these contacts.

  • Page 21: On Call Function

    2.3.2 On Call function 2.3.2.1 On Call function On Call settings allow configuring camera‟s response when phone call or SMS command is received. These settings can be set only by Administrator‟s user class. Phone call or SMS commands are accepted only from the authorized users' phone number. Authorized users are configured in the Users management section.

  • Page 22: Settings

    Command Users class Example Action alarm off Administrator, alarm off Camera disables “On event stream” sends user confirmation SMS to the sender. alarm? Administrator, alarm? Camera sends “On event stream” status: enabled or user disabled. Administrator The camera allows remote listening in on surrounding area by making the phone call.

  • Page 23: Network

    Figure 17. FTP settings. Host address – the domain or the IP address of the FTP server. User name – Enter your user name of the FTP account. Password – Enter your password of the FTP account. Port – Set the port of the FTP server. The default FTP port is 21. Path –...
  • Page 24 Figure 18. Mobile network configuration. Phone Number – Phone number acquired from your ISP (default *99#). PPP authentication – select authentication protocol, which is used by your Internet Service Provider [None/CHAP/PAP]. APN – Access Point Name (APN). User Name – Enter your User Name for your mobile connection. Password –...

  • Page 25: Admin

    2.5 Admin 2.5.1 Logs In the logs sections all events may be reviewed. The logs stores information about the system status and I/O logs events. Figure 20. Log window view. Events are sorted by the date (as seen in Fig. 20). The time and event columns show the capture event time and short description.
  • Page 26 Only administrator can add new camera users. Figure 21 shows users administration window. Figure 21. Users administration settings To create new account for the user class administrator must enter: 1. User name 2. Password 3. Select User class 4. Enter user‟s phone number (Guest type user do not have this option). 5.

  • Page 27: Maintenance

    To change the administrator login name and password click on the user admin as shown in Figure 23. Figure 23. Selecting account to make changes. After the selecting admin user the new window will appear for editing user‟s data (Figure 19). Figure 24.

  • Page 28: Restoring Default User Name And Password Or Resetting To Factory Defaults

    To update your device firmware click on the Update firmware button. Figure 26. Firmware update The newest firmware may be downloaded from the Teltonika WEB page. Before downloading new firmware check its version with current camera‟s firmware version. 2.5.3.3 Clean up SD card To clean up the SD card use Clean Up in the Maintenance section (Fig.

  • Page 29: Troubleshooting

    Open System in Control Panel: Start => Settings => Control Panel => System. In the Hardware tab select Device Manager and select "View > Devices by Type", then expand Modem group. Right click on the modem which name is NOT “Teltonika Camera” and click Disable. 29 | P a g e...

  • Page 30: Camera Does Not Connect To Gsm Network

    4.2 Camera does not connect to GSM network 1. Check if the network parameters supplied by your operator were entered correctly. 2. Check if the SIM card is inserted correctly. 3. Check if the SIM card PIN number is removed. 30 | P a g e...

  • Page 31: Technical Specification

    TECHNICAL SPECIFICATION Management User-friendly Web GUI IMAGE Image sensor: VGA (640x480 pixels). Image resolution: VGA/QVGA/QQVGA Image compression: JPEG Video clip (programmable time duration) and/or single snapshot SECURITY Security for administration/configuration: only authorized users are allowed (user name and password) CONFIGURATION & CONTROL Built-in web server for easy configuration and firmware update Built-in web server may be accessed: Remotely over GSM network...
  • Page 32 OTHER Lighting control: relay contacts Backup battery Power source detection: Mains indication Low battery power detection GSM operator's identification GSM signal level measurement and display POWER SUPPLY Mains adapter: 12V DC 1A Internal backup battery NiMH 9V, 250 mAh. Battery charging time 9h. ELECTRICAL CHARACTERISTICS Nominal power supply voltage Current consumption when idle...

  • Page 33: Appendix A Installing Mpeg4 Codec For The Pc

    1. Run FFDShow setup by double clicking ffdshow_beta6_rev2527_20081219 file which is located in /MPEG4 Codec/FFDShow/Install/ folder on MVC100 EDGE Camera support CD 2. Click Next. Select destination location and click Next 3. Click Next. Select Start menu folder and click Next.
  • Page 34 5. Review Your selections and click Install and click Finish. 34 | P a g e...
