Summary of Contents for Teltonika MVC330

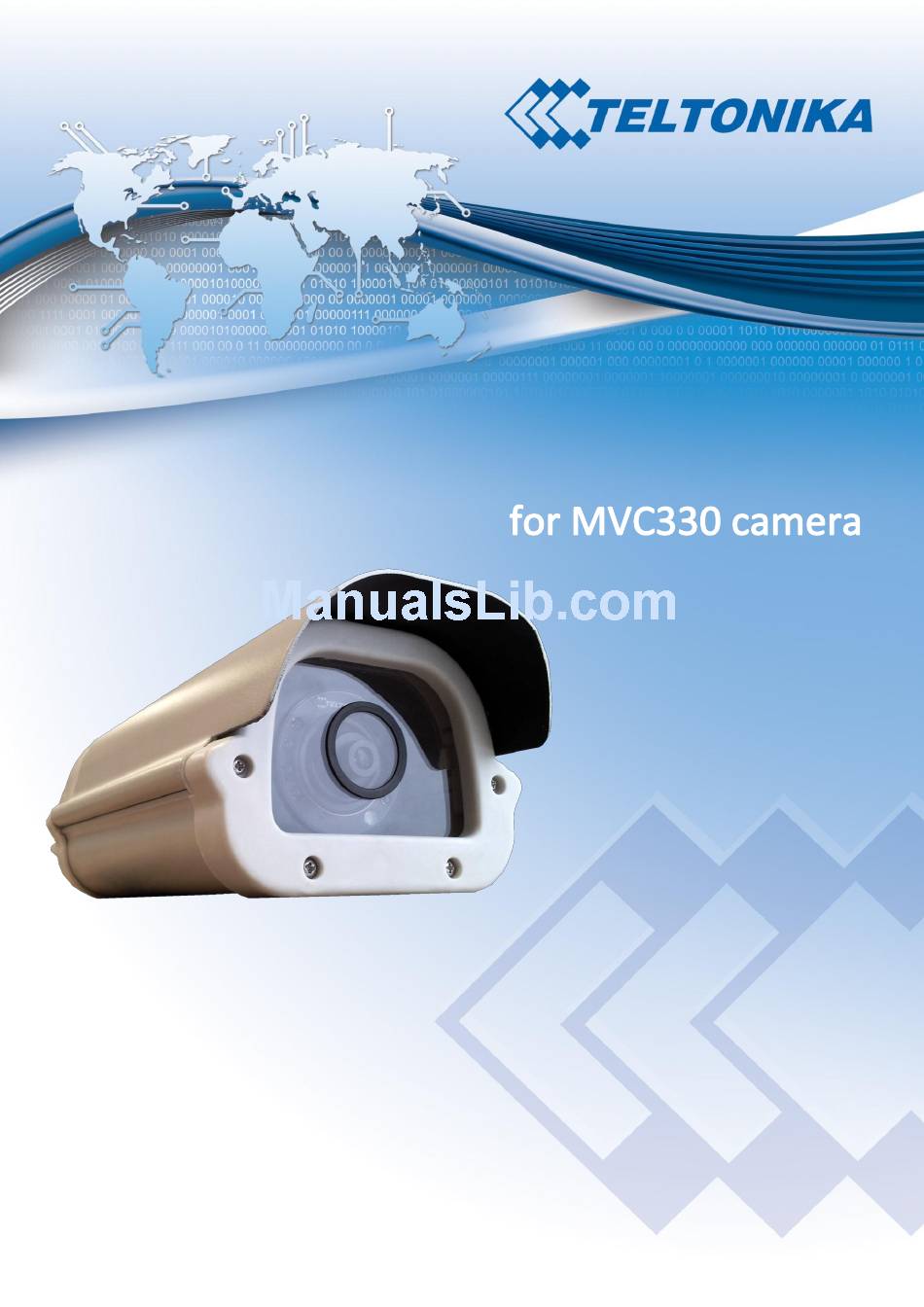

- Page 1 USER MANUAL Version 1.00...
-
Page 2: Legal Notice
Copyright © 2012 TELTONIKA Ltd. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without prior written permission of TELTONIKA Ltd is prohibited. The manufacturer reserves the right to modify the product and manual for the purpose of technical improvement without prior notice. -
Page 3: Table Of Contents
3. Table of Contents Legal notice ................................2 Attention ..................................2 Table of Contents ............................... 3 SAFETY INFORMATION............................... 5 Introduction ................................6 Specifications ................................6 Camera installation ..............................7 7.1. Connecting camera without alarms ........................7 7.2. Connecting camera alarms inside camera housing ................... 8 ....................................... - Page 4 9.8. Maintenance ..............................23 9.8.1. Firmware ..............................23 9.8.2. Maintenance and time settings ....................... 23 9.8.3. User authorisation ........................... 24 Abbreviations ............................... 25...
-
Page 5: Safety Information
4. SAFETY INFORMATION In this document you will be introduced on how to use a MVC300 camera safely. We suggest you to adhere to the following recommendations in order to avoid personal injuries and/or property damage. You have to be familiar with the safety requirements before using the device! To avoid burning and voltage caused traumas of the personnel working with the device please follow these safety requirements. -
Page 6: Introduction
Thank you for purchasing a MVC330 camera! Teltonika outdoor Camera encompasses a large number of environmental monitoring applications and is an ideal solution if you want to capture any significant events that might occur on the area. It can also be used as a fully-fledged IP network camera. -
Page 7: Camera Installation
7. Camera installation 7.1. Connecting camera without alarms... -
Page 8: Connecting Camera Alarms Inside Camera Housing
7.2. Connecting camera alarms inside camera housing... -
Page 9: Connecting Camera Alarms Outside Camera Housing
7.3. Connecting camera alarms outside camera housing... -
Page 10: Setting Up Your Camera
8. Setting up your camera 8.1. Camera connectors Ethernet connector microSD card slot DC power connector USB connector Mounting connector 8.2. Configuring your computer The camera can be connected to your computer via an ethernet cable. Camera‘s IP address is 192.168.1.10. Your PC has to be in the same subnet. -
Page 11: Installing Vlan Player
3. Check if your PC‘s IP adress starts 192.168.1.x. If not, click Advanced... to bring up advanced setting. Click Add..., specify IP adress and Subnet mask (e.g. 192.168.1.1 and 255.255.255.0), click Add to save changes. 4. Click OK to apply new network settings. 8.3. -
Page 12: Connecting Camera To Pc
3. Make sure both Mozilla plugin and ActiveX plugin are selected when choosing components. This will ensure that the plugin is installed on all browsers. 4. Complete VLAN player installation process. 8.4. Connecting camera to PC Camera can be connected to your PC for watching live video, playing back recorded files and changing settings. -
Page 13: Using Rtsp
8.5. Using RTSP Camera is capable of streaming video by RTSP protocol. After the camera is connected to the PC (or network) any RTSP capable media player can be used to see the video stream. To start an RTSP stream in VideoLAN player: 1. -
Page 14: Camera's User Interface
9. Camera’s user interface Camera’s WebUI can be accessed when camera is connected to your PC. Type http://192.168.1.10 into your internet browser’s address field in order to reach the camera’s WebUI. 9.1. Live view Live view tab displays video from the camera and is used to configure basic video settings. Stream Select stream to view in live view window. -
Page 15: Playback
9.2. Playback In the Playback tab on the WebUI you can browse, download and delete recorded video files. Format To be able to use memory card it should be formatted as FAT32. The card can be formatted when inserted in your PC or by pressing Format when inserted in the camera. -
Page 16: Alarm Settings
9.3.2. Alarm settings Alarm duration Specify recording to local storage on alarm/alarm output duration. Alarm trigger Motion detection Select to activate recording /alarm output on motion detection. Ethernet lost Select to activate alarm recording/alarm output on Ehernet lost. Audio alarm Select to trigger alarm recording/alarm when audio level exceeds a specified level. -
Page 17: Motion
9.4. Motion Motion tab allows configuration of Motion detection settings. Sensivity Specify motion detection sensitivity. Possible options are: 1280 x 720 Medium 720 x 480 High 1280 x 960 Custom threshold Specify custom motion detection sensivity. Allowed range is from 0 to 100 Selection control Press area on the video to select it. -
Page 18: Streams Settings
9.5.2. Streams settings Stream resolution Increased resolution results in better video quality while decreasing it allows for a smaller recorded file size. Frame rate Specify frame rate. Bit rate Increased bit rate results in better video quality while decreasing it allows for a smaller recorded file size. -
Page 19: Mail & Ftp
Default gateway Specify default gateway. Specify DNS. HTTP port Specify HTTP port of the camera. HTTPS Specify HTTPS port of the camera. RTSP multicast Check to enable RTSP multicast. 9.6.2. Mail & FTP SMTP server and port Specify SMTP server and port. Secure connection Check to enable secure (SSL) connection. -
Page 20: Firewall
9.6.3. Firewall Default Policy The default state of the firewall. The IP address of incoming connection CIDR The CIDR number DPORT The incoming port of the connection Entry format: Leave blank if you don’t wish to specify the a port number ... -
Page 21: Services
9.7. Services Services tab provides possibility to configure dynamic DNS, and OpenVPN settings. 9.7.1. DynDNS Status Last updated The last time when a dynamic DNS domain was updated with a new IP. The IP address that will be resolved from the hostname. Service Select dynamic DNS service. -
Page 22: Openvpn
9.7.2. OpenVPN Mode Select VPN mode (Client / Server) Remote IP IP address of OpenVPN server (applicable only for client configuration) Protocol Defines a transport protocol used by connection. You can choose here between TCP and UDP. Port Defines TCP or UDP port number (make sure, that this port allowed by firewall). This setting enables LZO compression. -
Page 23: Maintenance
9.8. Maintenance Maintenance tab provides possibility to configure such settings as update device’s firmware, camera’s name, time, and authorization. 9.8.1. Firmware Firmware version Displays current camera‘s firmware version Browse Press Browse and select new firmware file. Update To upgrade camera‘s firmware press Update buton. -
Page 24: User Authorisation
9.8.3. User authorisation Authorization Check Enable if you want to use authorization when accessing camera’s WebUI. Password Type password to be used when authorizing. Username is always admin. Retype password Confirm previously typed password. -
Page 25: Abbreviations
Abbreviations Constant Bit Rate CMOS Complementary Metal–Oxide–Semiconductor Frames Per Second High Definition Hertz Internet Protocol Infrared Kbps Kilobits Per Second Light-Emitting Diode Limited Power Source Mbps Megabits Per Second Mpix Mega pixel On-Screen Display Personal Computer Power Supply Unit RTSP Real Time Streaming Protocol Secure Digital SXVGA...
